APRILIA TUONO V4 R a-PRC ABS User Manual

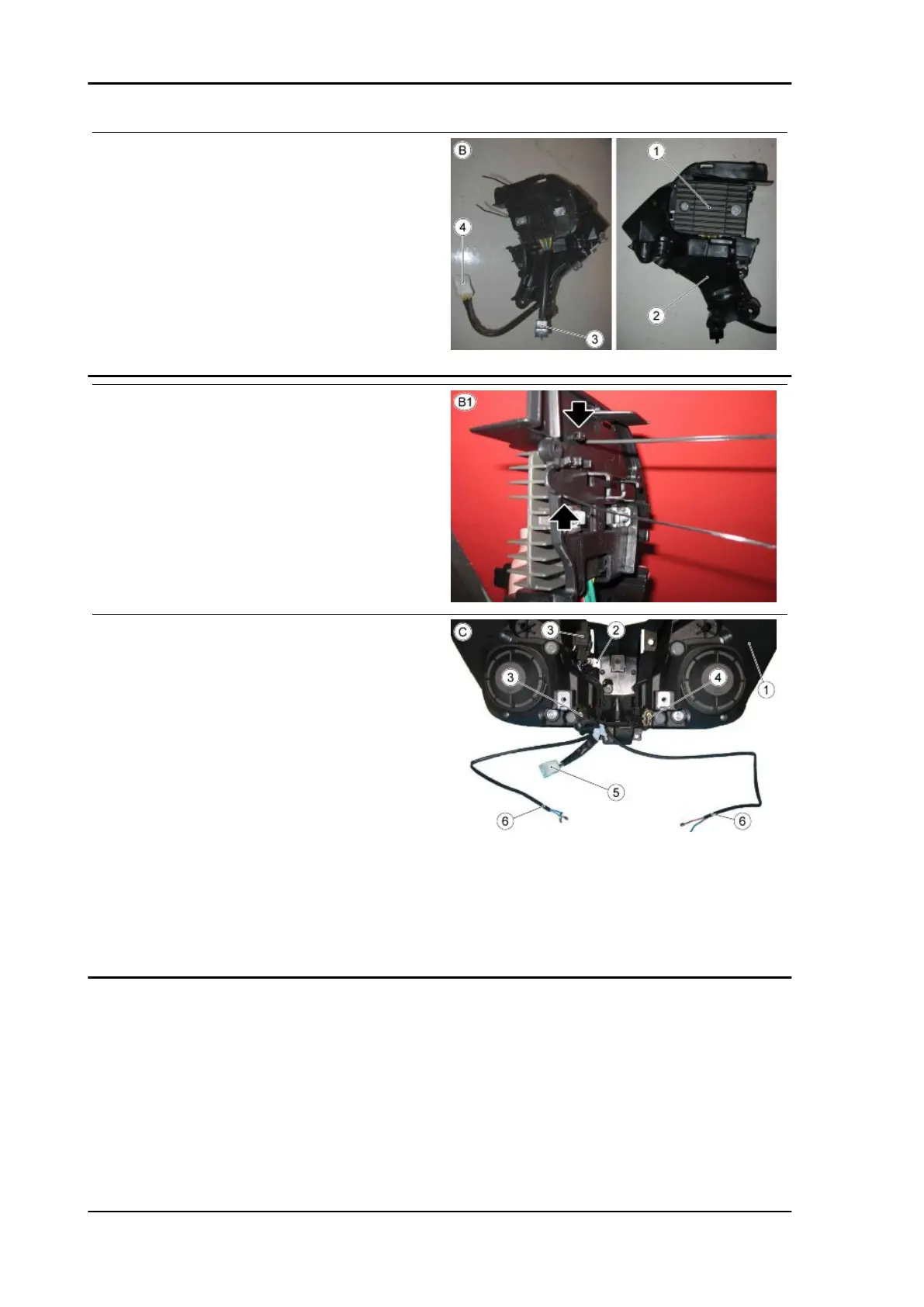

TABLE B - REGULATOR PRE-FITTING
1. Regulator
2. Instrument panel support
3. Regulator connector
4. Flywheel connector
TABLE B1 - REGULATOR PRE-ASSEMBLY
PROCEDURE
•
Pre-assemble two clamps for securing
the wiring harness.
TABLE C - HEADLAMP PRE-FITTING
•
The headlamp cable harness and the
relay must be fitted on the headlamp as
indicated.
1. Front headlamp
2. Front tail light connector
3. Relay with a relay socket rubber ring at 90°
4. Left headlight connector
5. Right headlight connector
6. Cable harness - vehicle interface connector
7. Left arrow
8. Right arrow
Electrical system TUONO V4 R a-PRC ABS
ELE SYS - 102
