1
2
3
4
5
-7-

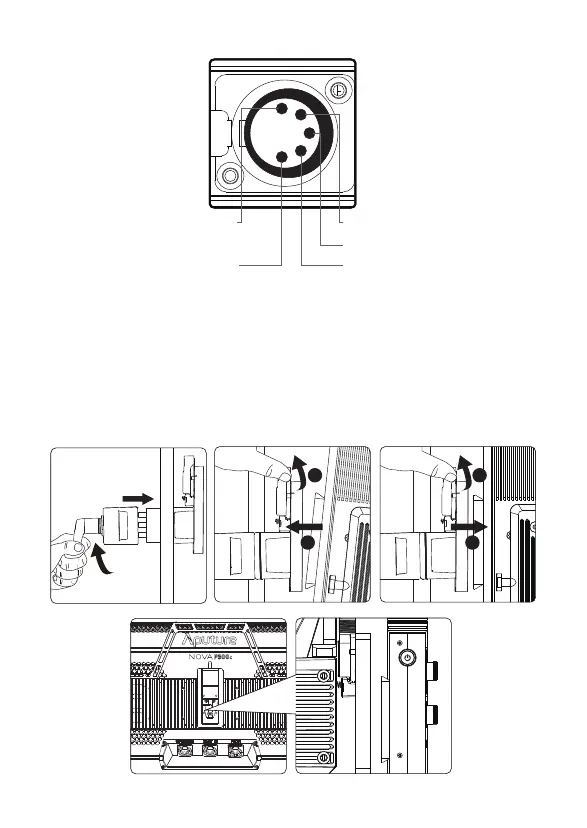

* The lamp controller interface schematic is shown in the pictures below:
Ground
Signal Pin-A
Signal Pin-B
18V
Power-Ground
3. Instructions for the Lightning Clamp
1) Clamp the Lightning Clamp onto a light stand.
2) To attach the control box, rotate the release lever to unlock the
quick-release baseplate, then mount the control box onto the Lightning
Clamp (the release lever will automatically spring back).
3) To remove the control box, grasp it firmly, then unlock the quick-release
plate by turning the release lever, and detach the control box.
4) For the Lightning Clamp Receiver on the back of the lamp head，the using
method of fixing is similar with the Lightning Clamp.
1
2
1
2
