9
AQUASURE HARMONY SERIES

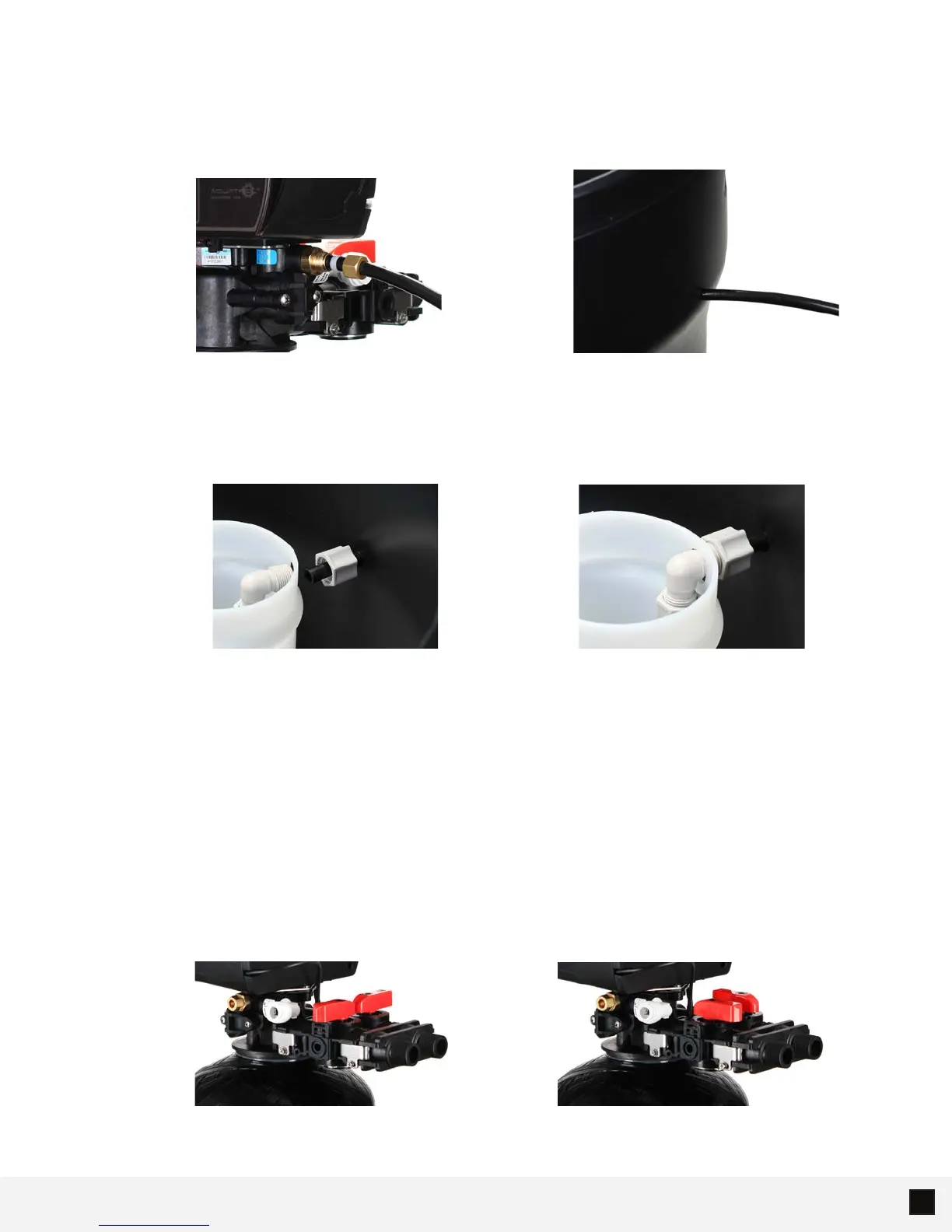

8. Push the brine line in the brass tting
on the control valve until it stops. Then
push the nut down on the tting and
tighten it hand tight. Use channel locks
to tighten the nut an additional 1/2 to
1 full turn.
9. Connect the brine line to the brine
tank by pushing the brine line through
the hole in the side of the tank.
10. Remove the nut from the brine safety
valve outside the white brine well.
Slide the nut onto the brine line.
11. Push the brine line into the elbow of
the brine safety valve in the brine well
until it stops. Tighten the nut hand
tight then turn it another 1/2 to 1 full
turn with channel locks.
12. Pour in at least two bags of salt and 5 gallons of clean water into the brine tank.
13. Place the unit in the bypass position. Slowly turn on the main water supply at the nearest
cold treated water tap nearby and remove the faucet screen. Open the faucet and let
water run a few minutes or until the system is free of any air or foreign material resulting
from the plumbing work.
14. Make sure there are no leaks in the plumbing system before proceeding. Close the water
tap when water runs clear.
15. Open the brine tank lid and add 5 gallons of water to the brine tank. Add a minimum of
80lbs of salt to the brine tank.
Bypass Position Service Position
NOTE:
The system is not ready for service until you complete the system startup section of this owner’s manual
