Arcam CD17 User Manual

E-5
English

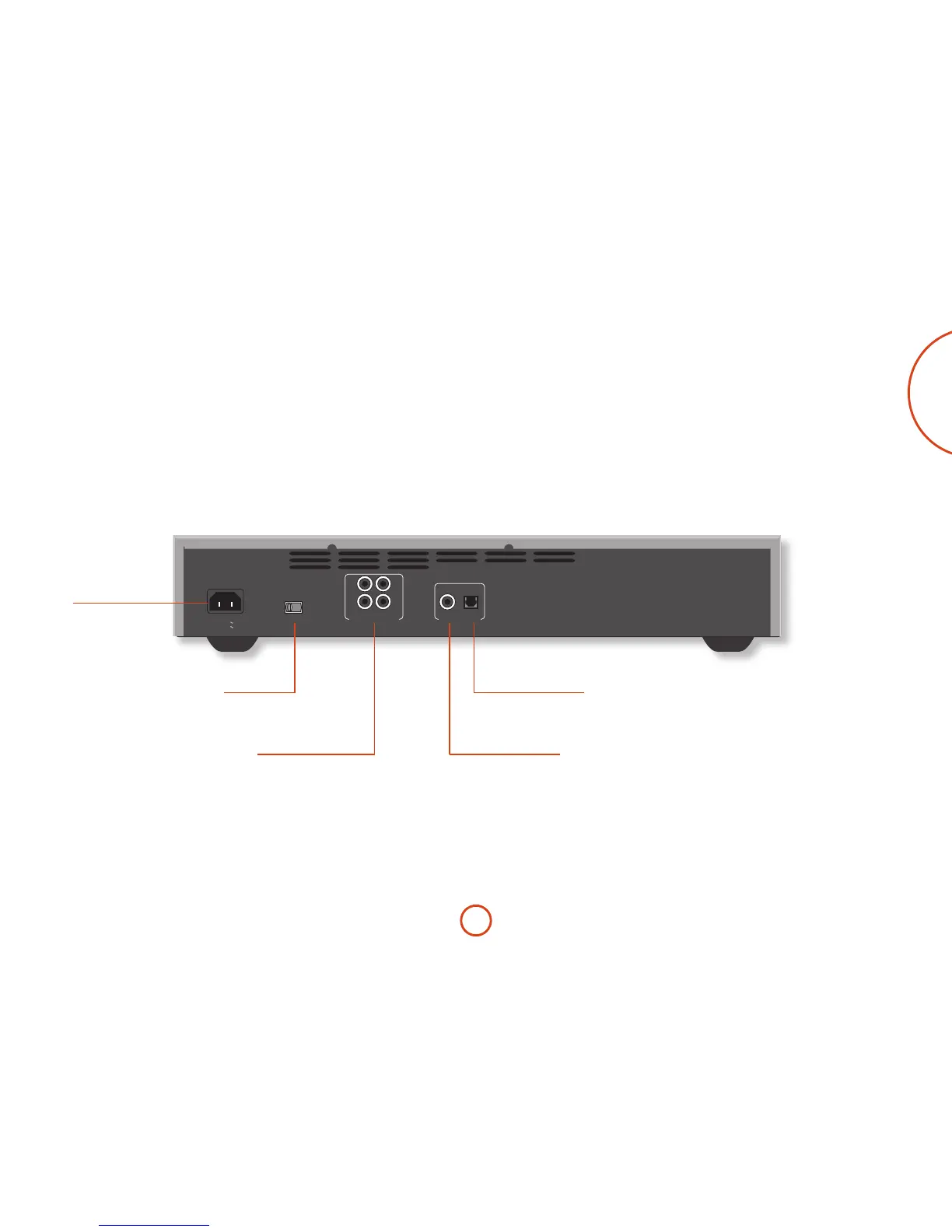

VOLTAGE SELECT
110-120V/230-240V
L
R
12
ANALOGUE AUDIO OUT
COAXIAL OPTICAL
DIGITAL AUDIO OUT
POWER INLET
110-120V 60Hz
230-240V 50Hz
Coaxial digital output
Use this socket if you are using a separate digital
to analogue converter (DAC) or digital recorder.
Connect to the DAC or recorder’s digital input
using a suitable 75Ω screened cable.
CAUTION: Never connect the digital output
socket to a conventional audio input.
Analogue audio outputs
Connect these to your amplier’s CD or other
line-level input using suitable high quality
interconnect cables. Ensure that the le and
right audio outputs from the CD player are
connected to the same le and right inputs on
your amplier.
e second set of sockets can be used to connect
to a second amplier set up for multi-room use.
Power inlet
Connect the correct
mains cable here.
Voltage select
Ensure the voltage selected
matches the local power supply.
Optical digital output
Use this socket if you are using a separate DAC
or digital recorder with an optical connection.
Connect using a suitable optical cable.
