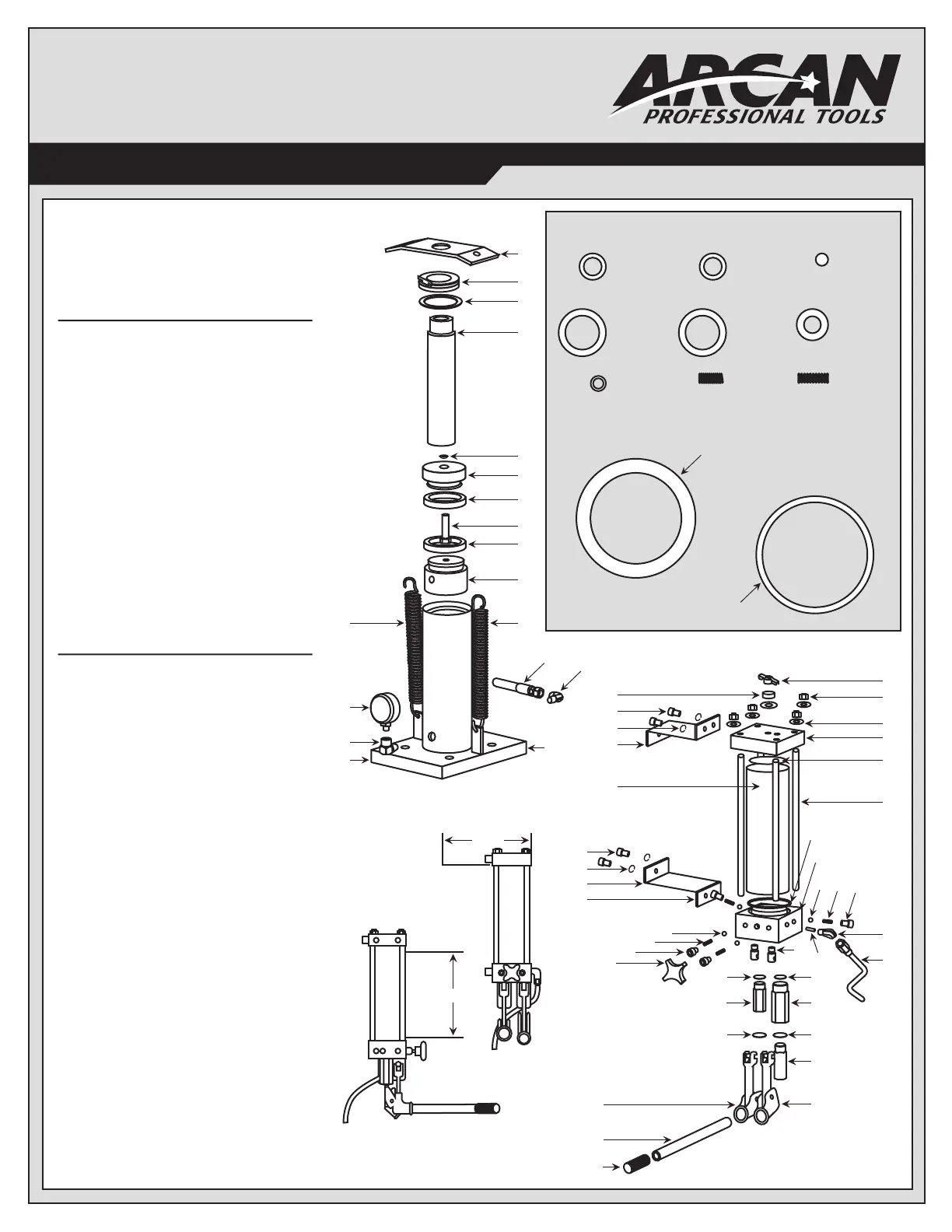

Arcan CP400 - Pump and Ram Exploded Parts Diagram

PUMP AND RAM EXPLODED PARTS DIAGRAM
8.886"
9.113"
ITEM NO. DESCRIPTION QTY.
1 Base Weldment 1
2 Plug 1
3 * Polypak Seal (Parker) 2
4 1/2-13 x 2 Hex HD C-S GR 2 Zinc 1
5 Piston 1
6 * O-Ring (Parker) 1
7 Rod 1
8 Retaining Ring Int. 3.5 NOM 1
9 Piston Guide 1
10 Retractor Plate 1
11 Spring 2
12 Fitting Gauge 1.75 1
13 Gauge 1
14 90˚ Elbow 1/4 NPTF to -6 JIC 1
15 Hose Hydraulic 41 1/2 LG 7/16-20 JICF 1
RAM
PUMP
ITEM NO. DESCRIPTION QTY.
1 Tank 1
2 Tie Rod 4
3 1" Piston Body 1
4 1/2" Piston Body 1
5 1" Piston 1
6 1/2" Piston 1
7 1/4" MNPT Pressure Plug 1
8 Pump Body 1
9 Pump Lid 1
10 Pump Bracket 2
11 Valve Assembly 1
12 Pivot Pin 2
13 * 5/16 Steel Ball 5
14 Brass Drain Cock 1
15 Cradle Assembly 2
16 Hydraulic Hose 41-1/2" L 7/16-20 JICF 1
17 7/16-14 Fin Hex Nut Zinc 4
19 * O-Ring 1
20 * O-Ring 1
21 * 3-1/2" Seal 2
22 * 3-5/16" Seal 1
23 * 3-3/16" Seal 1
24 SHCS 7/16 14 x 1/2" 4
25 SHCS 7/16 14 x 3/4" 4
26 * Light Spring 2
27 * Heavy Spring 2
28 7/16" Split Lock Washer 6
29 Pump Filter 1
30 Pump Fitting 1/4" MNPT 7/16" JICF 1
31 7/8" Grip 1
32 Handle for Pump 1
33 * O-Ring 1
# 23 (Pump)
QTY: 1
# 21 (Pump)
QTY: 2
# 19 (Pump)
QTY: 1
# 22 (Pump)
QTY: 1
CP400 Operation Manual 10
See Replacement Parts List for parts available separately.
Parts with (*) are only available in Seal Kit, part number RSCBP1217.
10
9
15
1
7
6
4
8
5
3
1111
1
14
13
12
3
2
7
21
17
30
16
1
# 3 (Ram)
(
Poly Pak - Note: Only the upper
seal normally needs replacement)
QTY: 1
# 33 (Pump)
(
O-Ring for # 11
Valve Assembly
on Pump)
QTY: 1
# 6 (Ram)
QTY: 1
# 20 (Pump)
QTY: 1
# 13 (Pump)
QTY: 5
2
28
14
1
25
24
11
13
27
10
31
32
6
20
4
23
28
25
24
10
28
13
29
21
8
26
24
12
22
3
19
5
15
# 26 (Pump)
QTY: 2
# 27 (Pump)
QTY: 2
Individual parts pictured are components of the Seal Kit, RSCBP1217.
