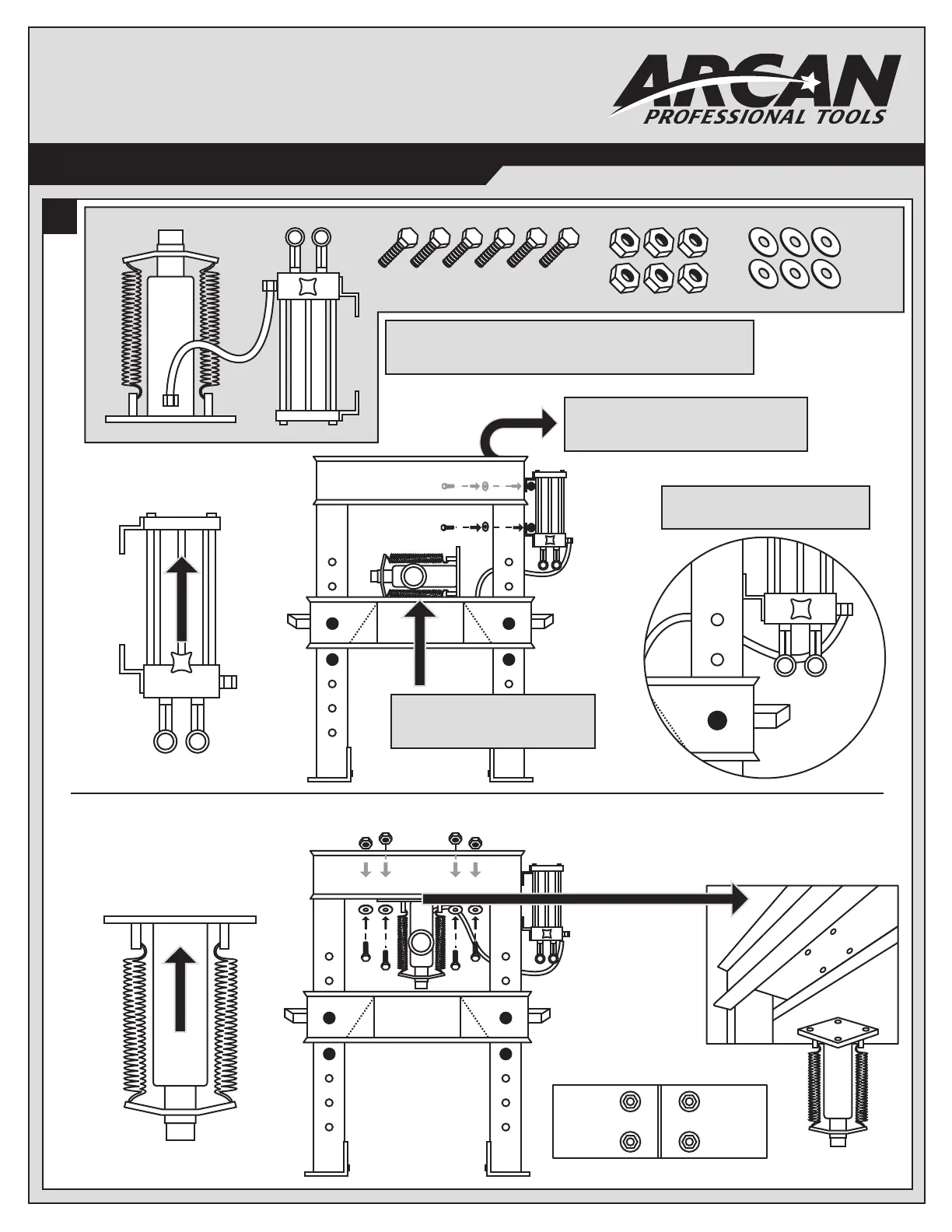

PUMP AND RAM ASSEMBLY INSTRUCTIONS
8
A
B
Note: There are two sets of holes for bolts.
Use centermost holes on the side.
Note: Hose must run BEHIND frame.
This end up
Top of press frame, looking down
Inside of press frame,
looking up
This end up
Note: Allow ram to rest on press
bed while installing pump.
Ram bolts directly to press frame using 4 of the 10 bolts included
with the press (one bolt, one washer and one nut for each corner
of the ram and for each of four holes in the press frame).
Attach bolts to opposite corners first. Hand tighten.
Wrench tighten after all four bolts have been tightened.
Note: Handle ram carefully to avoid damage to gauge or gauge face.
Do not disconnect hoses prior to assembly.
CP400 Operation Manual 6
