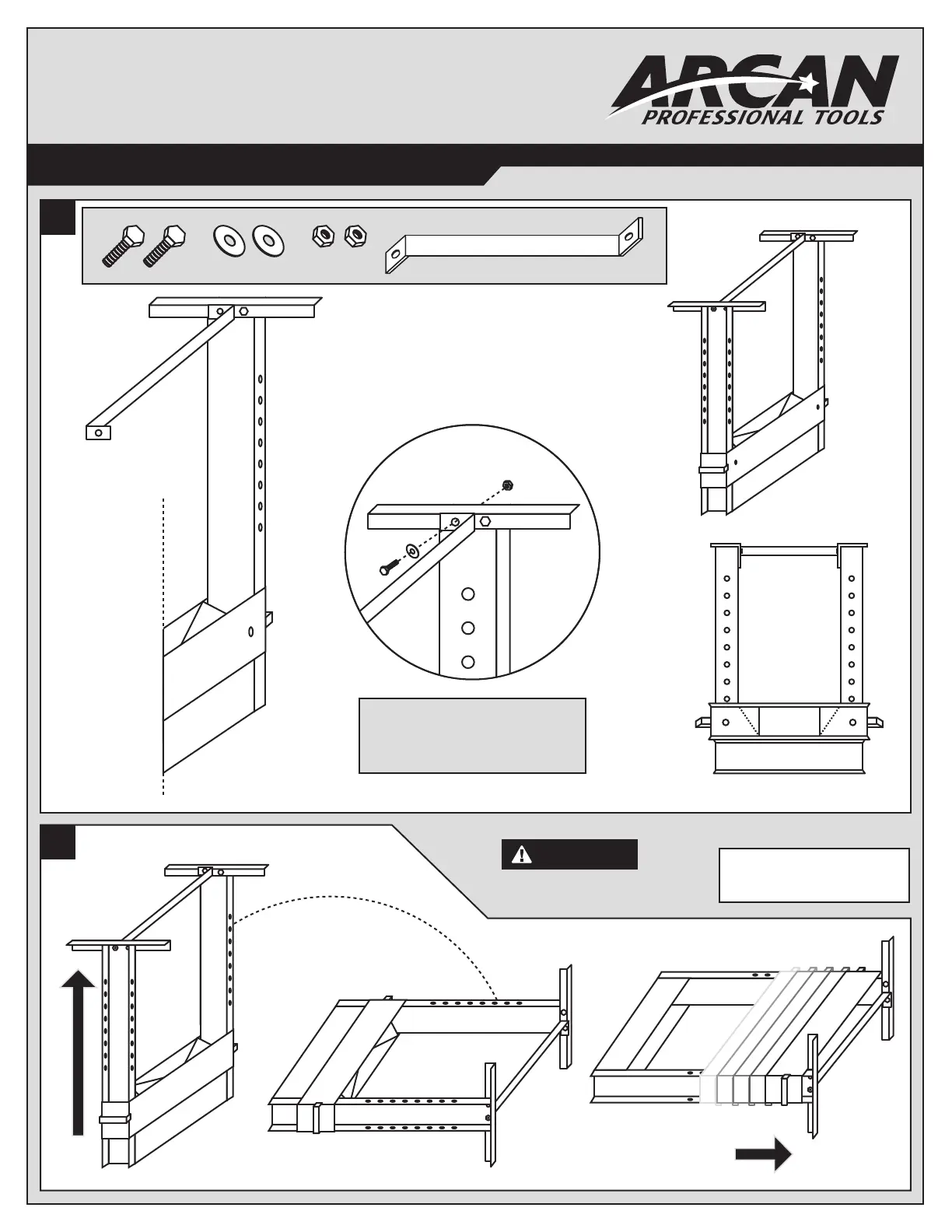

Cross-section of press
Front view
Use bolts, washers and nuts to attach
Z Bar to both sides of the press.
Note: Check all bolts for tightness.
If press rocks, or is not level, loosen press
feet slightly to compensate and retighten.
WARNING
Bed must be at the BOTTOM of the frame
before proceeding to the next step.
ASSEMBLY INSTRUCTIONS CONTINUED
4
5
Front view
Slide bed down to bottom of frame
Note: When sliding bed to frame
bottom, DO NOT use bed handles.
CP500 Operation Manual 4
