AIR FEED
Use only compressed air. Check airline for damage from humidity &
contaminants. In order to protect the tool from premature wear, we
recommend the use of an in line moisture filter and air regulator.
Air inlet thread connection size on the tool is ¼” NPT.
WARNING:
Do not use air supply greater than recommended 85-95 PSI
or tool may be damaged or burst.
1. Connect air supply then switch ON/OFF valve
to ON position
2. To turn on and adjust vacuum system rotate silver
knob on side of tool and turn it clockwise until
desired amount of vacuum is obtained to hold rivet
in place and eject spent mandrel into the collection
cup. If you don't want to use the vacuum system
rotate the silver knob counter-clockwise to shut it
off. The tool will still function but must be tilted
backwards to allow spent mandrel to fail into
ADDITION OF HYDRAULIC FLUID
1. Disconnect air supply to tool and switch ON/OFF valve to
OFF position.

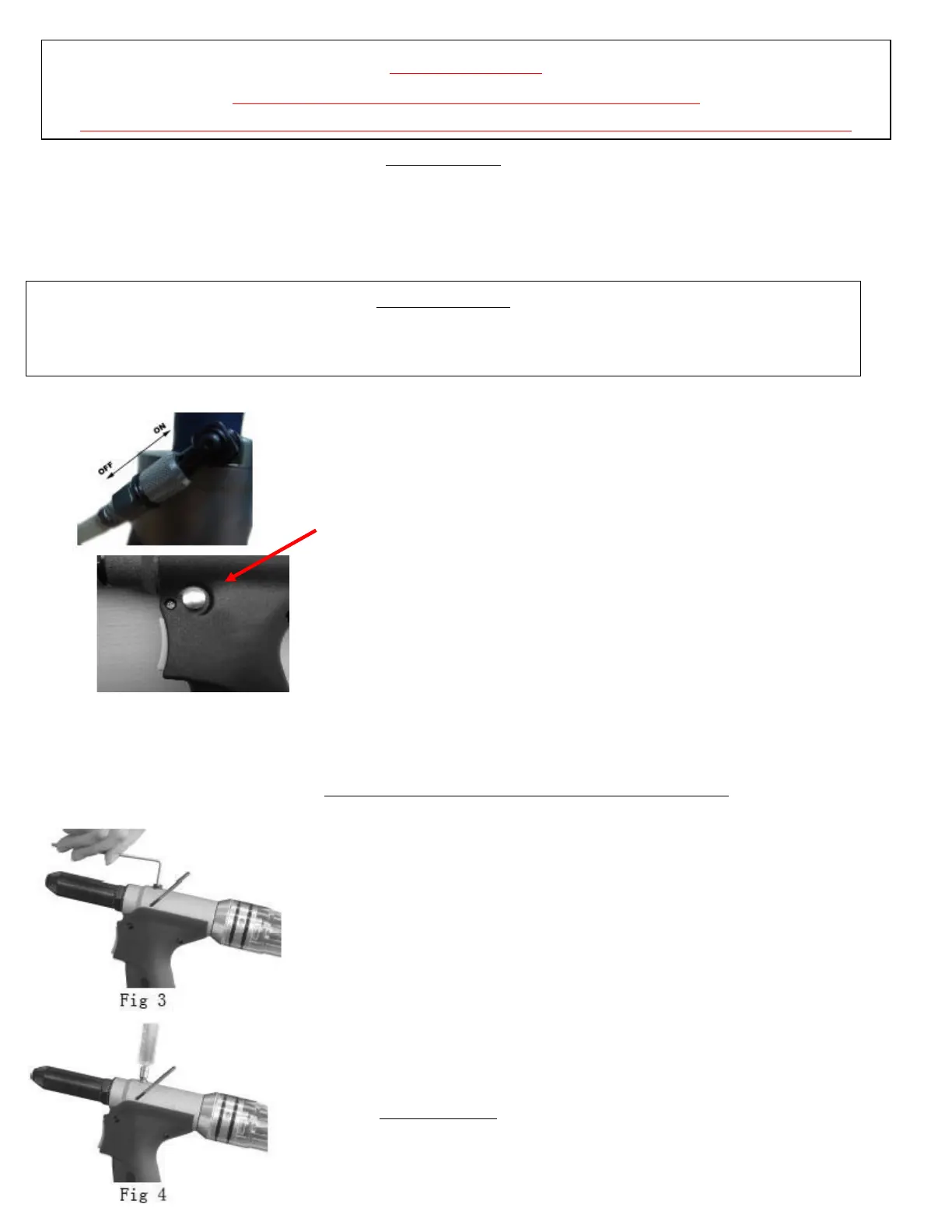

2. Remove seal screw and seal (see Fig. 3)
3. Screw the priming pump of filled oil into the bleed screw
hole. Actuate the priming pump by pressing down and
releasing several times until resistance is felt. (Fig. 4)
4. Remove the priming pump and the excessive oil will flow
out. Wipe away and clean out the excessive oil and replace
the seal and screw.
IMPORTANT: Use only Anti-Foam Hydraulic Fluid
ALWAYS WEAR SAFETY GLASSES
WHEN OPERATING AND PERFORMING MAINTENANCE ON TOOL
