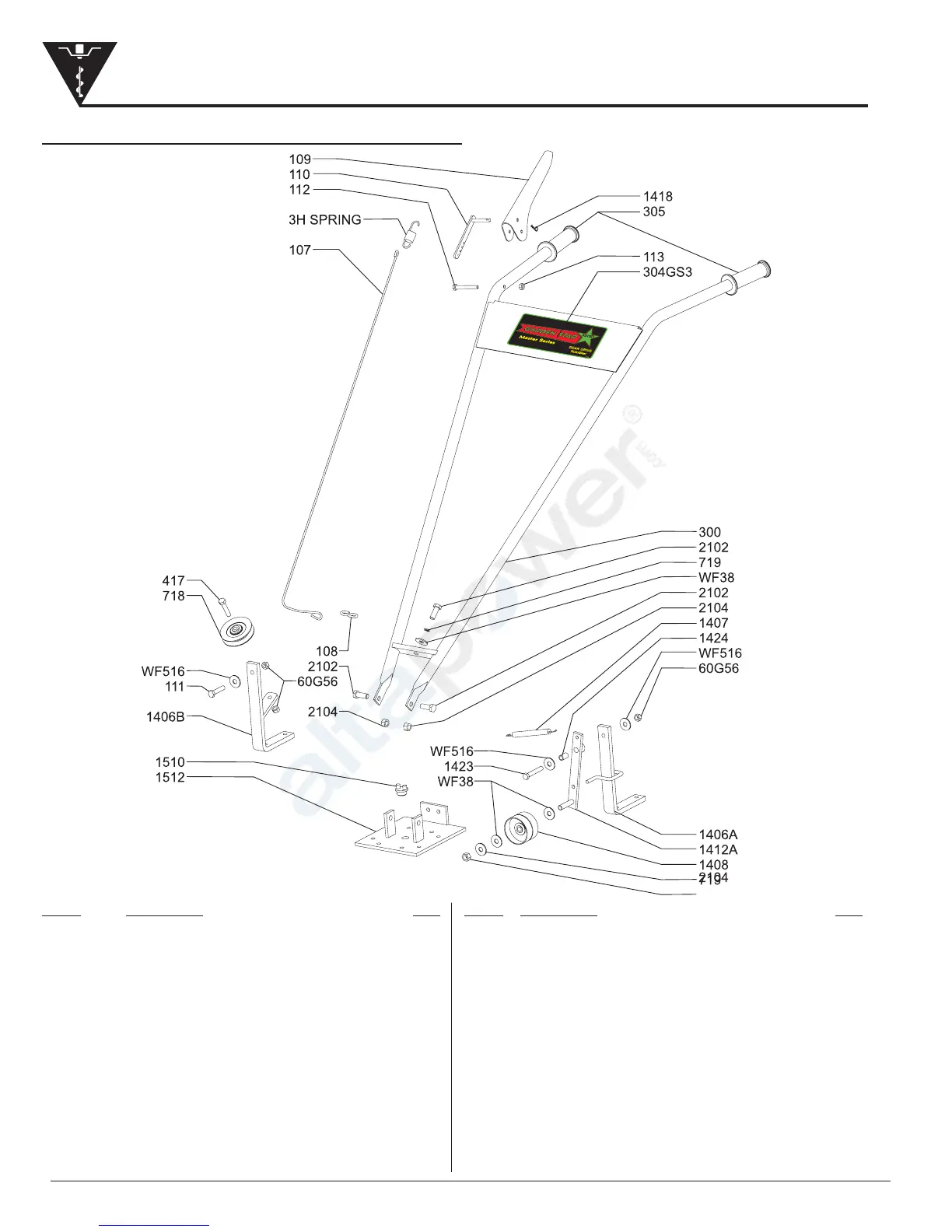

MODEL 3515D HANDLEBAR ASSEMBLY
Part # Description Qty.
3H SPRING SPRING-Drive Control Lever 1
60G56 NUT, 5/16"-18 3
107 CABLE-Lanyard 1
108 S-HOOK 1
109 CONTROL LEVER-Drive Safety 1
110 BRACKET-Length Adjustment 1
111 BOLT, 5/16"-18 x 1-1/2" 1
112 SCREW-HHCS, 1/4"-20 x 1-1/2" 1
113 NUT-Nyloc, 1/4"-20 1
300 HANDLEBAR 1
304GS3 DECAL-Handlebar, Garden Star Logo 1
305 HANDLE GRIP, Black 2
417 BOLT-Hex, 5/16"-18 x 1/2", Grade 5 1
718 PULLEY-V Groove Belt Guide 1
719 LOCK WASHER-Spring, 3/8" 2
Part # Description Qty.
1406A L BRACKET-Forward Belt Guide 1
1406B L BRACKET-Right Pulley Holder 1
1407 SPRING-Idler Arm 1
1408 PULLEY-Forward Idler 1
1412R IDLER ARM-Forward 1
1418 COTTER PIN 1
1423 BOLT-Hex, 5/16"-18 x 2", Grade 5 1
1424 BUSHING-Pivot 1
1510 PLUG-Oil Fill 1
1512R COVER-Transmission Wheel Housing 1
2102 BOLT-Hex Hd, 3/8"-16 x 1", Grade 5 3
2104 NUT-Hex, 3/8"-16 3
8932 NUT-Keps, 1/4"-20 1
WF38 FLAT WASHER, 3/8" 3
WF516 FLAT WASHER, 5/16" 3
