Arduino Mega2560 User Manual

Lesson 2: Obstacle Avoidance Robot Car
In this lesson, you must complete lesson 1 before you continue on with this lesson. we
use the ultrasonic module to “see” obstacle and measure the distance. If the distance
is less than pre-defined threshold value, the car will turn around from the obstacle
automatically.
OSOYOO Mecanum Wheels Robotic Car Chassis x1(2xleft-wheels/2xright-wheels and Motor x 4)
OSOYOO Mega2560 board fully compatible with Arduino x 1
OSOYOO V1.0 Wifi shield x 1
OSOYOO Model X motor driver x 2
OSOYOO MG90 servo motor x 1
OSOYOO Ultrasonic sensor module x1
OSOYOO Mount holder
OSOYOO Battery box x 1
18650 Batteries(3.7V) x 2
You must complete lesson 1 (assembling the car) before you continue on with this
lesson.In this lesson3, we will add a servo motor and to the robotic car built in Lesson
1.

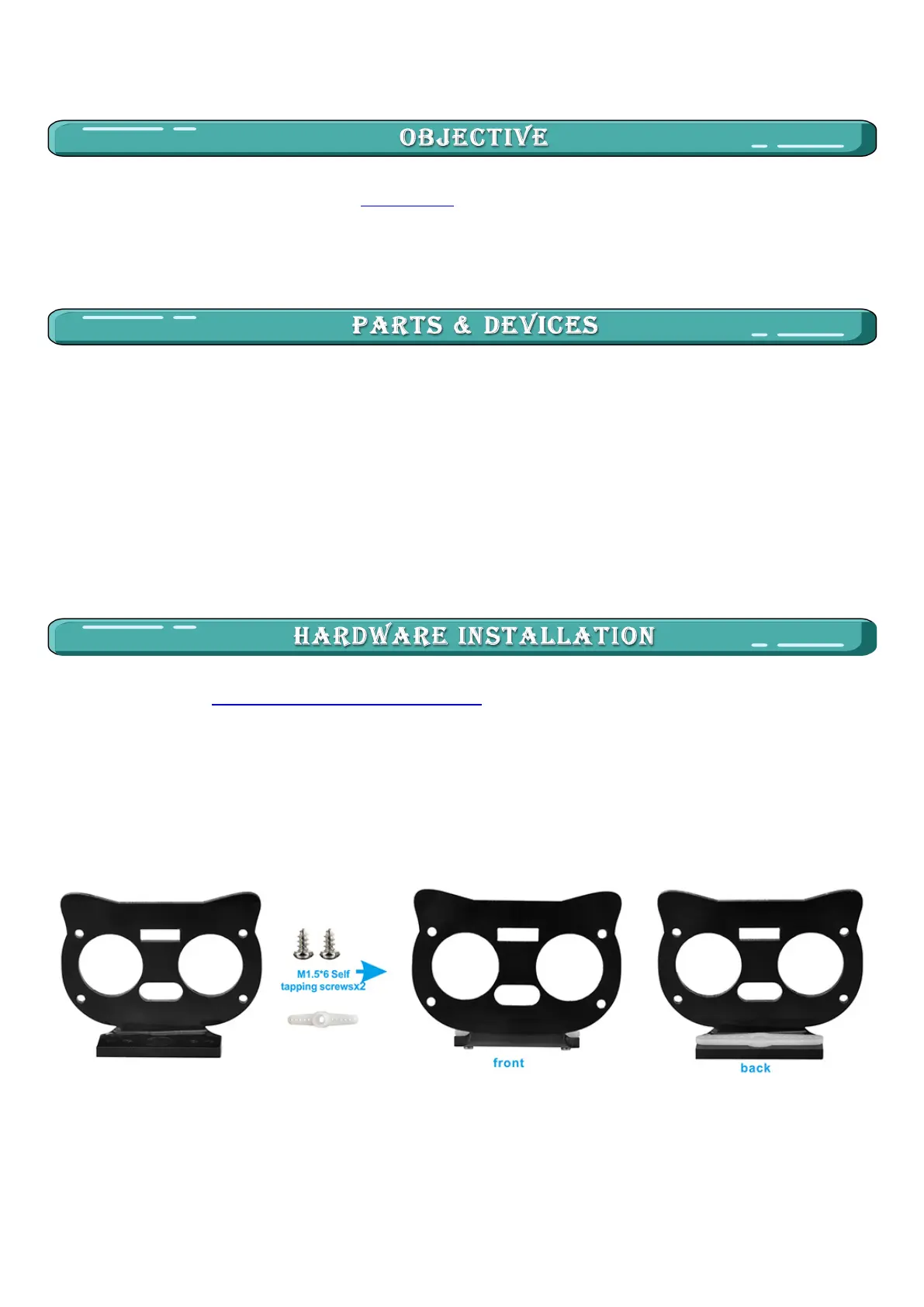

Step 1: Install bracket (from servo motor package) on mount holder for Ultrasonic
Module with 2pcs M1.5*6 Self Tapping Screws.
Step 2: Install Ultrasonic Module to mount holder with 4pcs M1.4*8 screw and M1.4 nuts.

Arduino Mega2560 Specifications

General

Microcontroller	ATmega2560
Operating Voltage	5V
Input Voltage (recommended)	7-12V
Input Voltage (limit)	6-20V
Digital I/O Pins	54 (of which 15 provide PWM output)
Analog Input Pins	16
DC Current per I/O Pin	20 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	256 KB of which 8 KB used by bootloader
SRAM	8 KB
EEPROM	4 KB
Clock Speed	16 MHz
Length	101.52 mm
Width	53.3 mm
Weight	37 g
