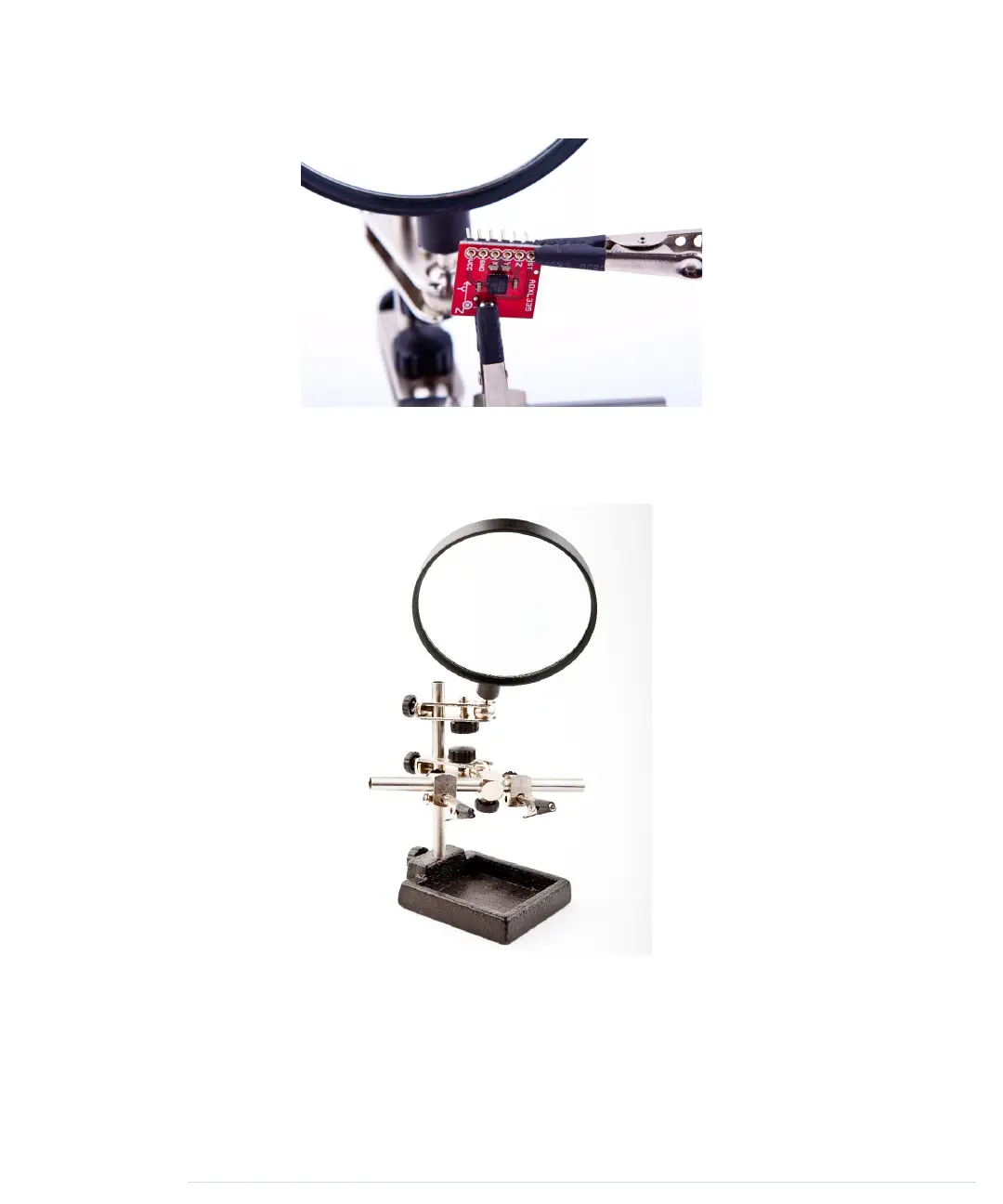

In the following figure, you can see how Ive prepared all parts:
Ive used a helping hand, a useful tool for locking parts into a position. Helping
hands usually come with a magnifying glass, and they are cheap. If you plan
to solder often, you should get onethey justify their name.
After youve prepared everything, its time to heat up the soldering iron. The
main purpose of soldering is to join metallic surfaces. In our case, wed like
to join the surface of the pin header with the metal in the breakout board. To
achieve this, well heat up the metallic parts and then connect them using
molten solder.
report erratum discuss
Learning How to Solder 245
