2

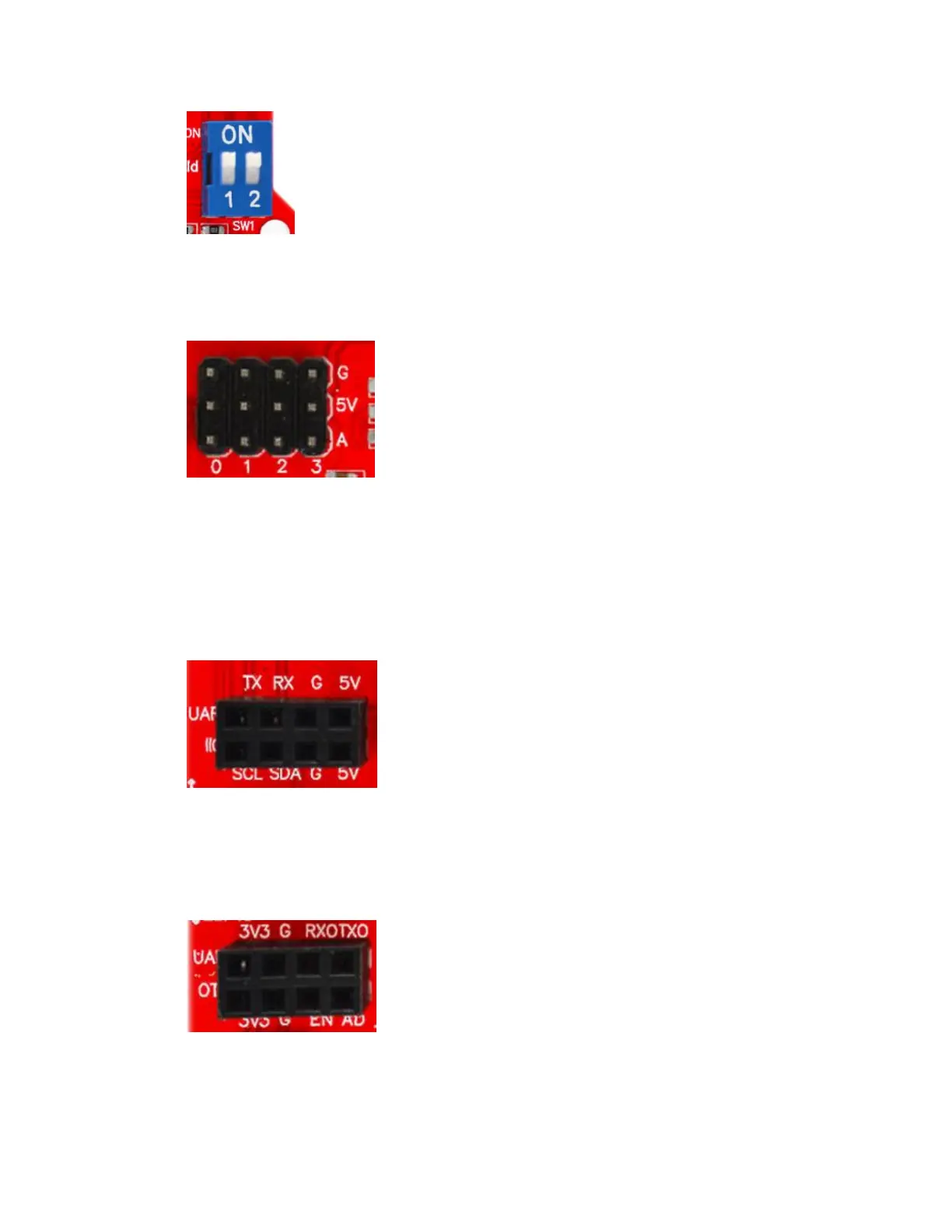

Control Switch: to control the serial connection between ESP8266 and arduino control board
GGND
5V5V Power Output
Aconnecting to analog portA0-A3of arduino control board
UART: connecting to serial communication port5V GND RX TXof arduino control board
IIC: connecting to IIC communication port5V, GND, SDA, SCLof arduino control board
UART: connecting to serial communication port3.3V, GND, RX, TXof ESP8266 module
OTH
