Arecont Vision MicroDome User Manual

Camera Imaging Specifications
WDR WDR
Model AV1455DN AV2455DN AV2456DN AV3455DN AV3456DN AV5455DN
Image Sensor (CMOS) 1.3MP 1080p 1080p 3MP 3MP 5MP
Optical Format 1/2.7" 1/2.7" 1/3.2" 1/2.5" 1/3.2" 1/2.5"
Pixel Pitch 3μm 3μm 2.2μm 2.2μm 2.2μm 2.2μm
Minimum
Illumination
Color 0.1 Lux 0.1 Lux 0.3 Lux 0.3 Lux 0.5 Lux 0.5 Lux
Color Binning - - - 0.15 Lux 0.15 Lux 0.15 Lux
Day/Night 0 Lux, IR sensitive 0 Lux, IR sensitive 0 Lux, IR sensitive 0 Lux, IR sensitive 0 Lux, IR sensitive 0 Lux, IR sensitive
Full FOV Resolution 1280 H x 1024 V 1920 H x 1080 V 1920 H x 1080 V 2048 H x 1536 V 2048 H x 1536 V 2592 H x 1944 V
1/4 Resolution 640 H x 512 V 960 H x 540 V 960 H x 540 V 1024 H x 768 V 1024 H x 768 V 1296 H x 972 V
Dynamic Range 69dB 69dB WDR up to 100dB 70.1dB WDR up to 100dB 70.1dB
Lens 4mm Integrated, F/1.6 4mm Integrated, F/1.6 4mm Integrated, F/1.6 4mm Integrated, F/1.6 4mm Integrated, F/1.6 4mm Integrated, F/1.6
Frame Rates At Max Res. 42fps (1280 x 1024) 31fps (1920 x 1080) 30fps (1920 x 1080) 21fps (2048 x 1536) 21fps (2048 x 1536) 14fps (2592 x 1944)
Cropped - 42fps (1280 x 1024) 41fps (1280 x 1024) 29fps (1920 x 1080)
41fps (1280 x 1024)
30fps (1920 x 1080)
41fps (1280 x 1024)
21fps (2048 x 1536)
29fps (1920 x 1080)
41fps (1280 x 1024)
Binning Mode - - - 46fps (1024 x 768)
64fps (960 x 540)
21fps (1024 x 768)
27fps (800 x 600)
31fps (960 x 540)
32fps (640 x 512)
34fps (1296 x 972)
46fps (1024 x 768)
64fps (960 x 540)
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
Made in the USA
Revised 1/14 ©2014 Arecont Vision. Specification sheets subject to change without notice.
Mechanical
Casing IK-10 Vandal-resistant and tamper-resistant housing
-F Model In-ceiling mount with die-cast aluminum
cover and 2" polycarbonate dome bubble
-S Model Surface mount with die-cast aluminum
housing and 2" polycarbonate dome bubble
IP66 weather proof standard
3/8" NPT w/ 1/2" NPT Adapter included
Lens 4mm board mount (M12), fixed iris, F/1.6
Gimbal Easy 2 axis camera adjustment w/ 359° pan and 90° tilt
Dimensions Ø 4" (100mm) x 3.1" H (78.5mm)
Weight Unit 0.7lbs (0.3kg)
Packaged 1.3lbs (0.6kg)
Programmability
Motion Detection and privacy mask with 1024 detection zones
Shutter Speed: 1ms – 500ms
Pixel Binning Mode (3MP and 5MP models)
Auto adjust between WDR and LDR modes (WDR models)
Casino Mode
™
maintains 30fps (AV2455 model)
MoonLight
™
Mode: extended exposure and proprietary noise cancellation
Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and
2x2 pixels for H.264)
Low light noise filter control
Bit rate and bandwidth limitation control
Backlight compensation and multi-matrix white balance
50/60Hz selectable flicker control
Electronic pan, tilt, zoom (PTZ) and image flip 180°
Programmable resolution, brightness, saturation, gamma, sharpness, tint
Data
Transmission
Compression Type H.264 (MPEG-4, Part 10)/Motion JPEG
21 levels of quality
Transmission Protocols RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP,
DHCP
Data Rate Bit rate control from 100Kbps–10Mbps
100Base-T Ethernet Network Interface
Multi-Streaming 8 non-identical streams
Environmental
Operating Temperature -F Model -5°C (23°F) to +50°C (122°F)
-S Model -40°C (-40°F) to +50°C (122°F)
Humidity 0% to 90% (non-condensing)
Stable Image Temperature 0°C (32°F) to +50°C (122°F)
Storage Temperature -20°C (-4°F) to +60°C (140°F)
Electrical
Input/Output General purpose opto-coupled
Power Over Ethernet PoE 802.3af, Class 3
Max Power Consumption 5.59 Watts
Compliance
Industry Standard PSIA Conformant
Listings UL (CB)
FCC Compliance 47 CFR 15 Class A
Environmental RoHS, REACH, WEEE
Markings (CE) EN55022 Class A, EN55024,
EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical (-S Model) IP66 (EN60529)

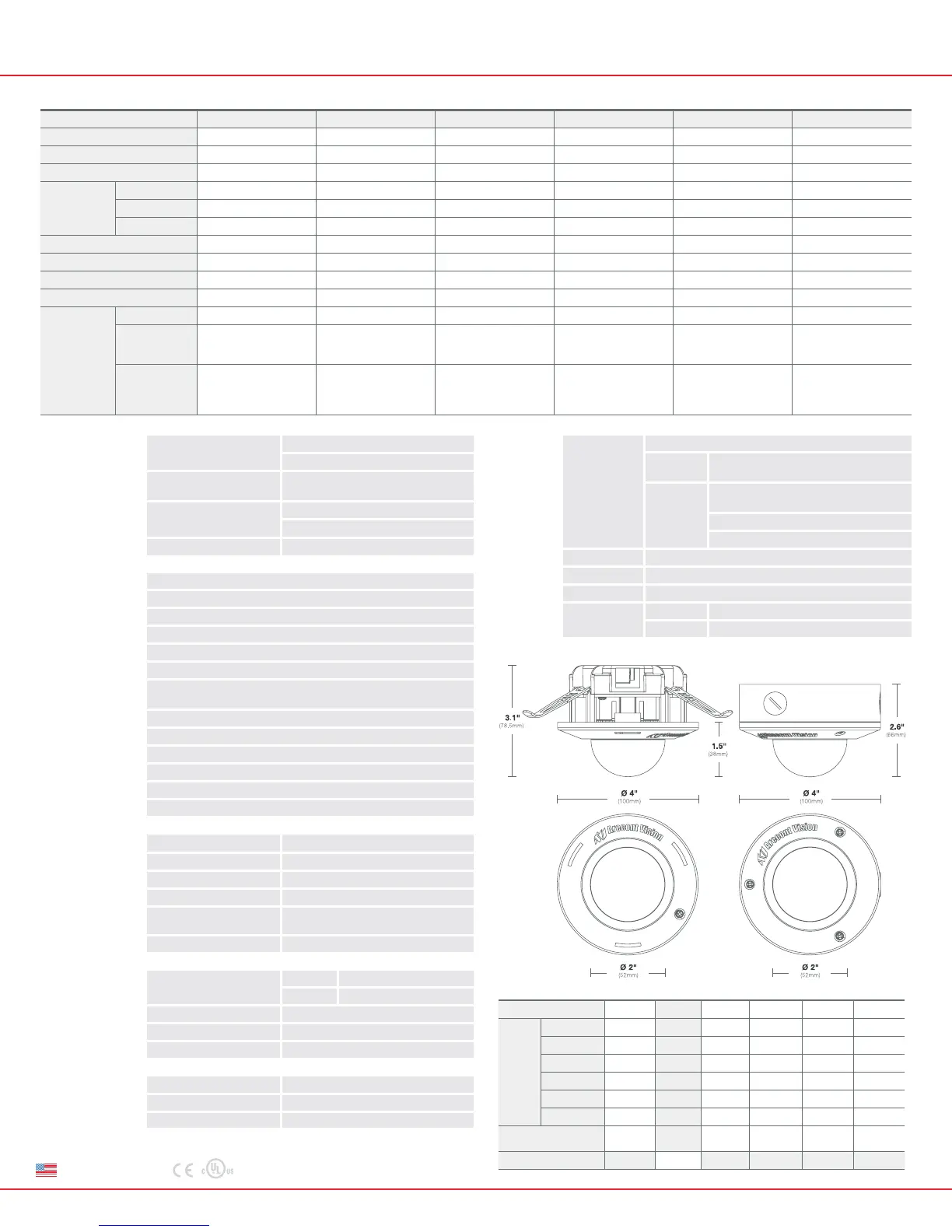

-F -S
Lens Options
Focal Length 2.8mm 4mm 6mm 8mm 12mm 16mm
Horiz.
FOV
1.3MP 71 53 35 26 17 13
1080p 106 79 52 39 26 20
1080p WDR 83 59 42 31 19 15
3MP 90 66 46 34 23 17
3MP WDR 88 63 45 33 20 16
5MP 114 83 58 43 29 22
Option
Ordered
Separately
Standard Ordered
Separately
Ordered
Separately
Ordered
Separately
Ordered
Separately
Part Number MPM2.8 - MPM6.0 MPM8.0 MPM12.0 MPM16.0
