ASSEMBLY INSTRUCTIONS
When installing the unit, make sure that you respect the minimum required distances for the product installation as follows:
a) 25 cm from the side wall
b) 50 cm from the ceiling
c) The product must be installed at a minimum distance of 1 metre from the wall.
Follow the assembly instructions to install the appliance.

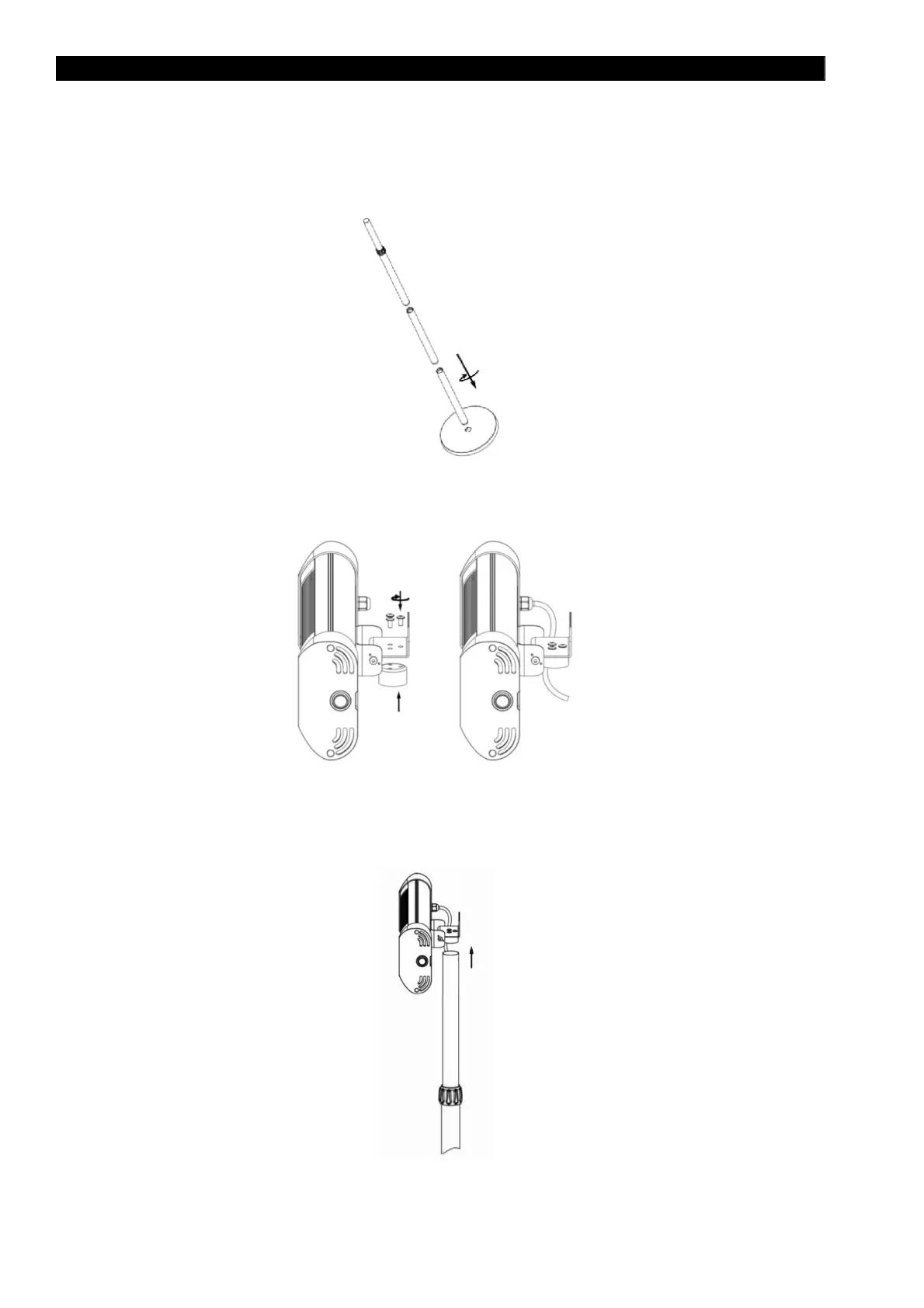

1) Link together the various tubes provided as shown in the image.
2) Line up the three holes in the plate with the three holes in the tube provided to join the lamp to the previously assembled
stand. Then secure them by inserting the three screws (M6*10).
3) Insert the stand into the tube attached to the lamp plate.
