Argo Fanny white - Assembly Instructions; Desk Fan Assembly; Stand Fan Assembly

9
V 2/13

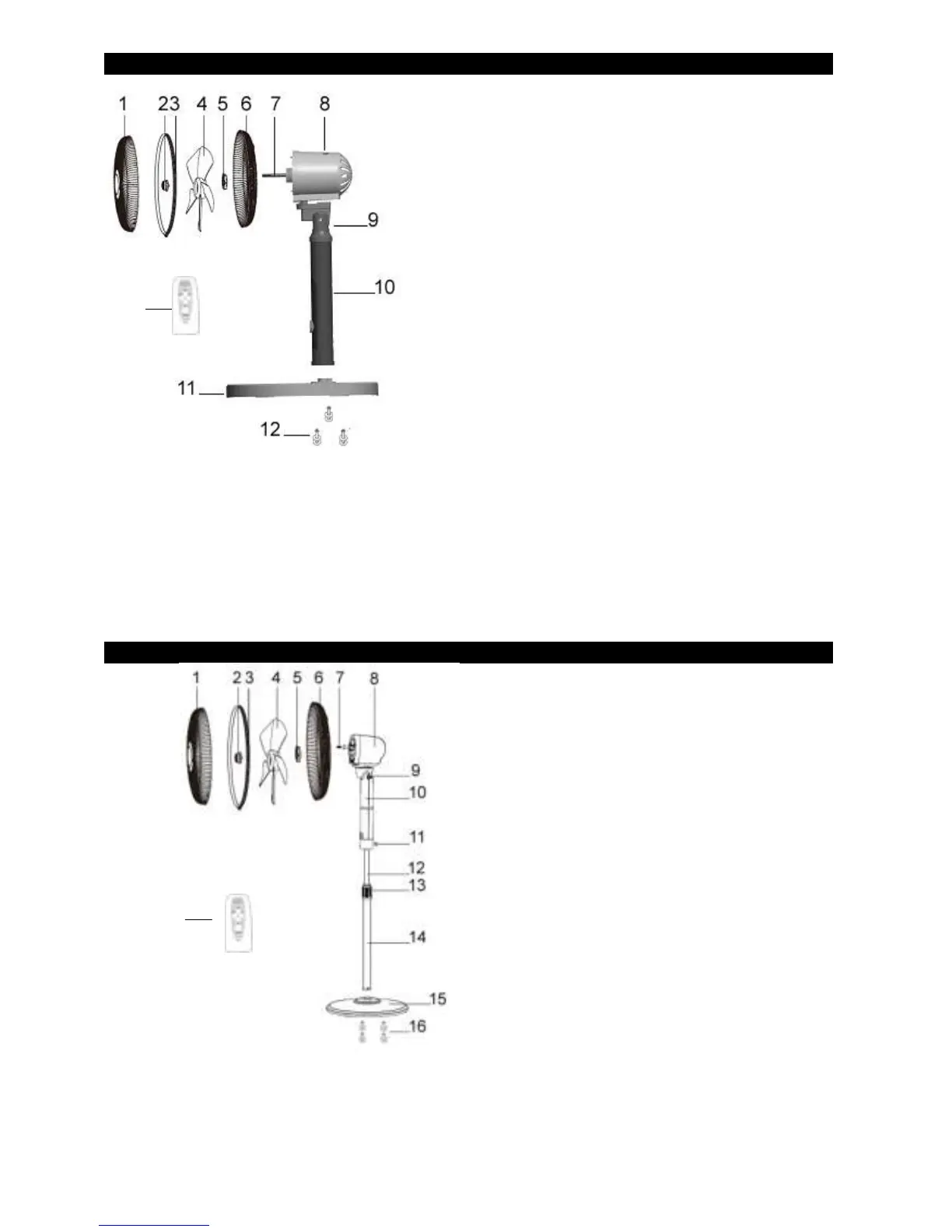

DESK FAN - DESCRIPTION OF PARTS AND ASSEMBLY INSTRUCTIONS
Open the box and remove the parts of the appliance.
Connect the base (11) to the body of the appliance (10) using the screws supplied (12).
Insert the rear grill (6) on the motor shaft (7) in the proper position (hanlde upward).
Screw the nut (5) in order to fasten the rear grill firmly.
Set the blade (4) on the motor shaft (7).
Tighten the nut (2) on the motor shaft (caution - counterclockwise direction).
With the aid of the ring (3) join front and rear grill and tighten the screw on the ring.
The appliance does not need to be installed.
Position the fan on the table.
STAND FAN - DESCRIPTION OF PARTS AND ASSEMBLY INSTRUCTIONS
Open the box and remove the parts of the appliance.
Connect the base (15) to the outer rod of the appliance (14) using the screws supplied (16).
Unscrew the height adjustment ring (13) and pull out the inner rod(12).
Join the upper part (motor housing 8 + neck 9 + control box 10) and tighten the screw (11) firmly.
1. Front grille
2. Nut
3. Ring
4. Blade
5. Nut
6. Rear grille
7. Motor shaft
8. Motor housing
9. Neck
10. Control box and body
11. Base
12. Screws
13. Remote control
1. Front grille
2. Nut
3. Ring
4. Blade
5. Nut
6. Rear grille
7. Motor shaft
8. Motor housing
9. Neck
10. Control box and body
11. Screw
12. Inner rod
13. Height adjustment ring
14. Outer rod
15. Base
16. Screws
17. Remote control
