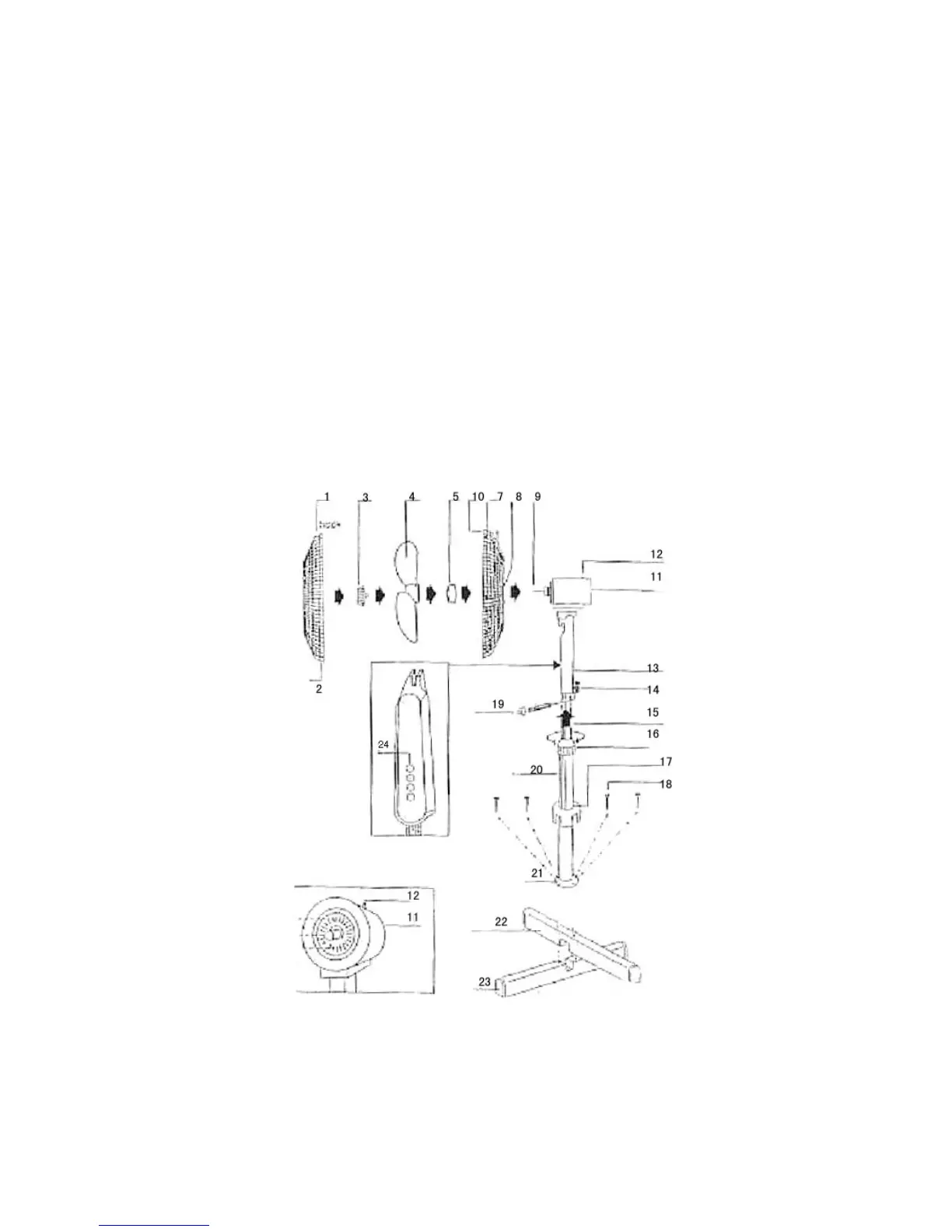

KNOWING YOUR MACHINE (fig. A)
1. Front Grille 14. Set Screw
2. Clips 15. Inner Pipe
3. Blade Cap 16. Collar (for tube height adjustment)
4. Fan Blade 17. Base Cap
5. Grille Nut 18. Bolts (4 pcs)
6. Hook 19. Mains Cord
7. Rear Grille 20. Stand Pipe
8. Holes Motor Shaft 21. Flange
9. Motor Shaft 22. Cross-bar Base
10. Locking Sscrew 23. Cross-bar Base and Caps
11. Motor Unit 24. Speed Control button
12. Oscillation Knob (0=off, 1=Low speed, 2=Medium speed,
13. Fan Housing Support 3=High speed)
Fig. A
