Argos KS0993 - Control Panel, Burner, and Lid

7
5

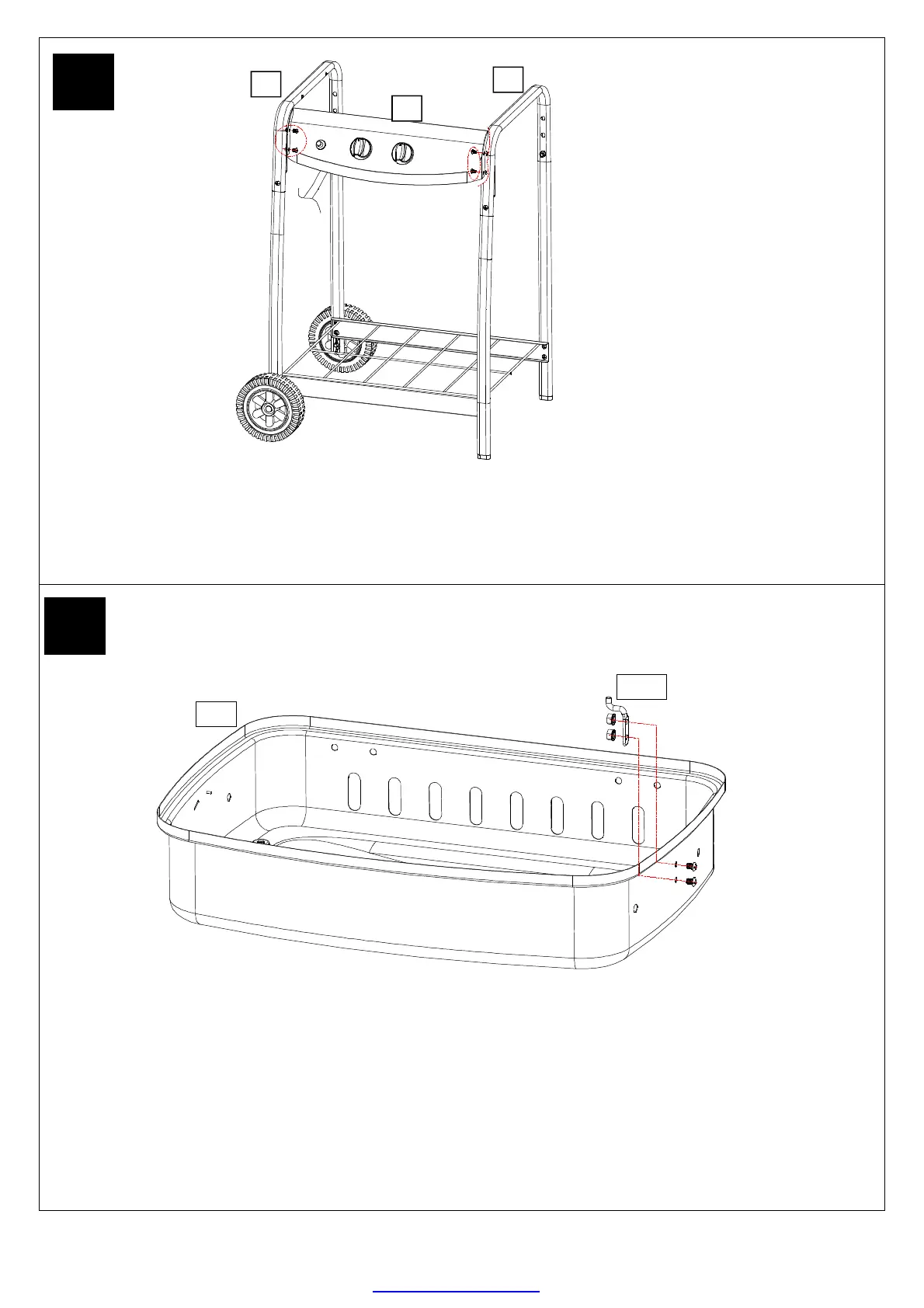

Fig 5
6
Fix the control panel assembly (B8) on the left upper support (B6) and right upper support (B7) using M6*12
bolts (E2) as Fig 5.
Fig 6
Fix the heat tent support (E11) on the firebowl (A7) using M4*8 bolts (E9) and M4 nuts (E4) as Fig 6.
F7
B8
B6
B7
A7
E11
