5. Locate the new NG orifice spud. Verify it is the correct number. The sign #22 should be on the
end of the orifice spud.
6
CONVERSION INSTRUCTIONS
#22

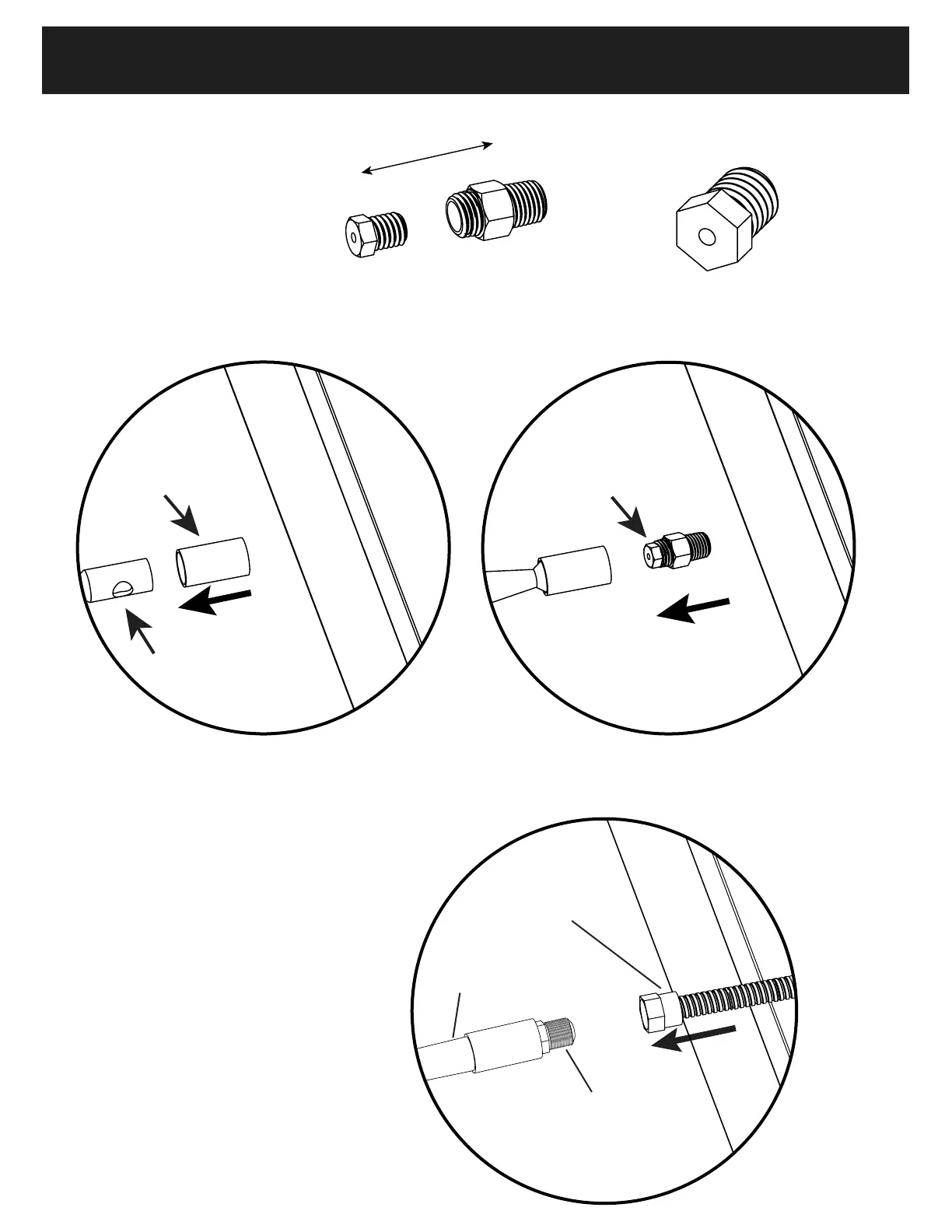

6. Slip the sleeve over the primary air opening (see Fig. 1). Next, screw the new NG orifice spud into the
burner tube inlet (see Fig. 2).
7. Reattach the flex line to the burner tube inlet.
Flex Line
NG Orifice Spud
Burner Tube Inlet
Sleeve
Primary Air
Opening
NG Orifice Spud
