MAINTENANCE GUIDE
M
A
I
N
T
E
N
A
N
C
E
G
U
I
D
E
:
G
E
N
U
S
P
R
E
M
I
U
M
4.5
GAS VALVE
GAS VALVE
Tools
15 min
Time
1

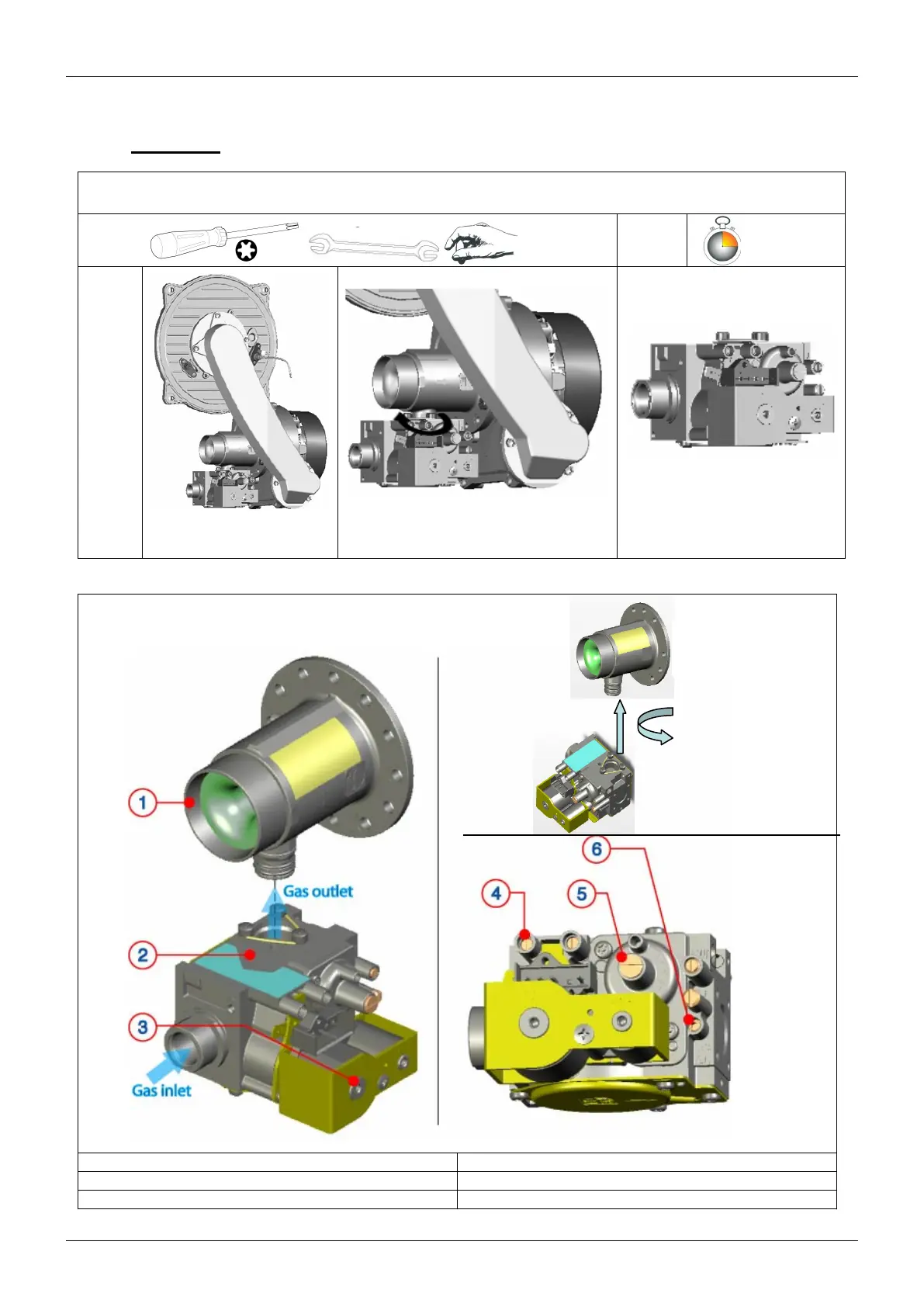

Remove the combustion
assembly (see 4.3)
Twist the gas valve anti-clockwise to
disconnect it from the fan
Bayonet
connection
1.
Venturi
4.
Inlet test nipp
le
2.
Gas valve
5.
Offset adjustment
3.
Solenoids
6.
Throttle adjustment
Page.
19
of
20
56
58
