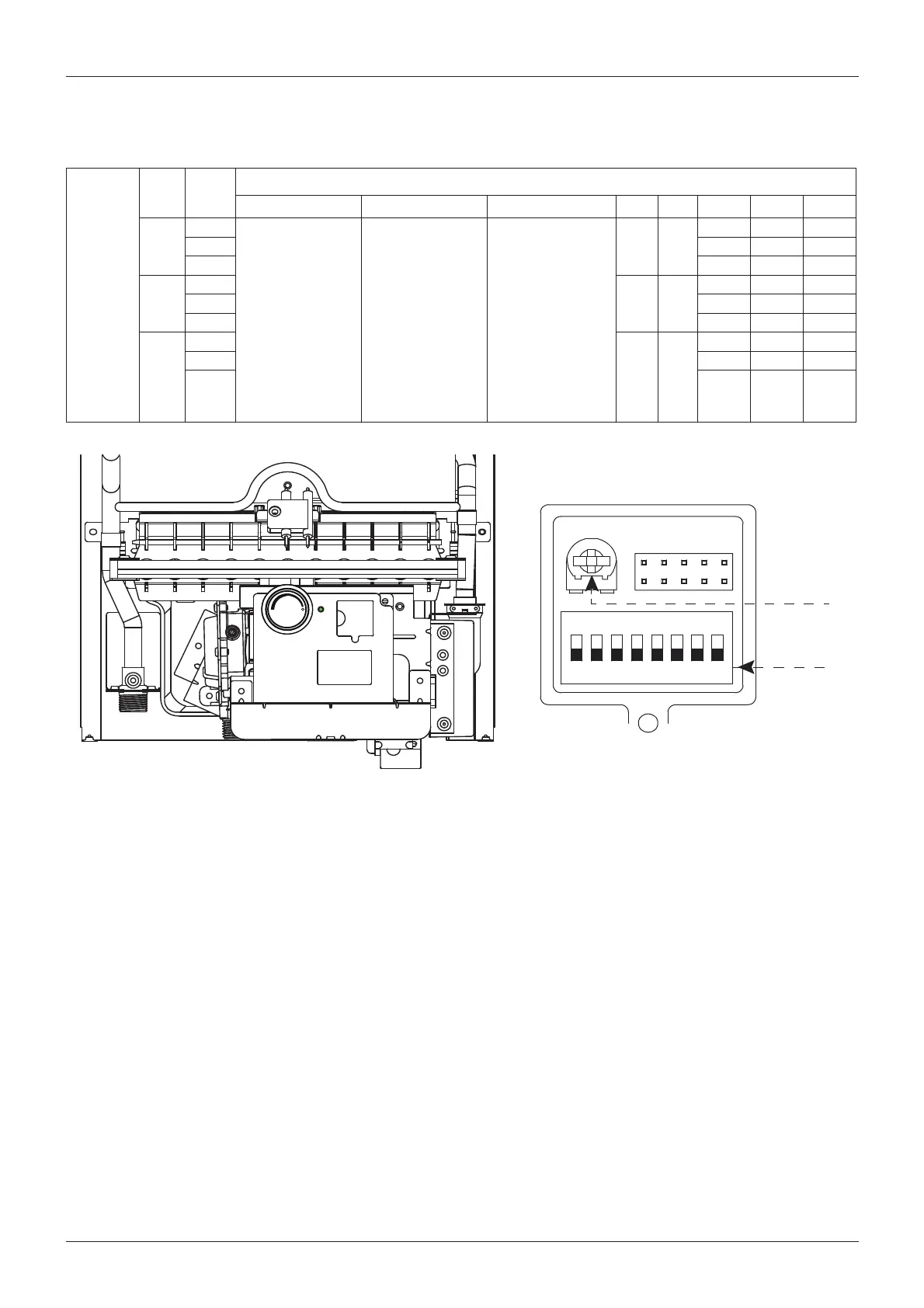

Ariston FAST EVO ONT B 16 - Configuration and Settings

17
installation
Microswitch
Microswitchs position, see table below.
FAST
EVO ONT
MOD. GAS
Microswitch number
1 2 3 4 5 678
11 L G20
ON
Test Mode
OFF
Factory setting
ON
Maximum power
adjustment
OFF
Minimum power
adjustment
ON
Soft light
adjustment
OFF
Factory setting
OFF ON
OFF OFF ON
G30 OFF ON OFF
G31 OFF ON ON
14 L G20
ON OFF
OFF OFF ON
G30 OFF ON OFF
G31 OFF ON ON
16 L G20
ON ON
OFF OFF ON
G30 OFF ON OFF
G31 OFF ON ON
2
1
ON
1 2
3 4 5 6 7 8
OFF
Led
Jumper
1. Adjusting screw maximum / minimum and Soft ignition power
2. Microswitch
