B. Prepare the Cabinet

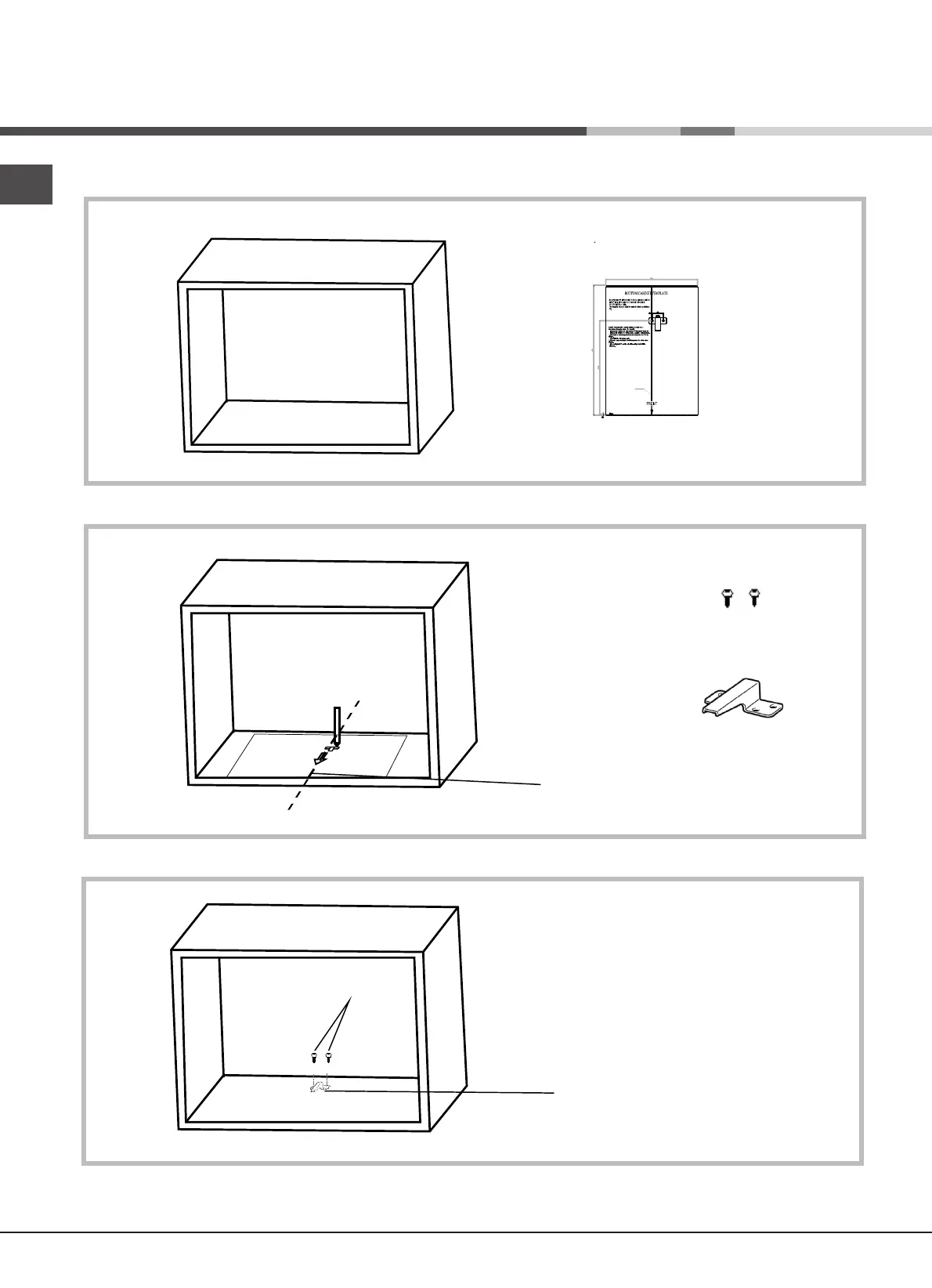

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.
2. Make marks on the bottom plane of cabinet according to marks “a” of the template.
3. Remove the BOTTOM CABINET TEMPLATE, and fix the BOTTOM BRACKETS with SCREW A.
Installation
a
a
CENTER LINE
FRONT EDGE
LEFT EDGE
T EDGE RIGH
a
a
SCREW A
BRACKET
CENTRE LINE
Screw A
BRACKET
