13

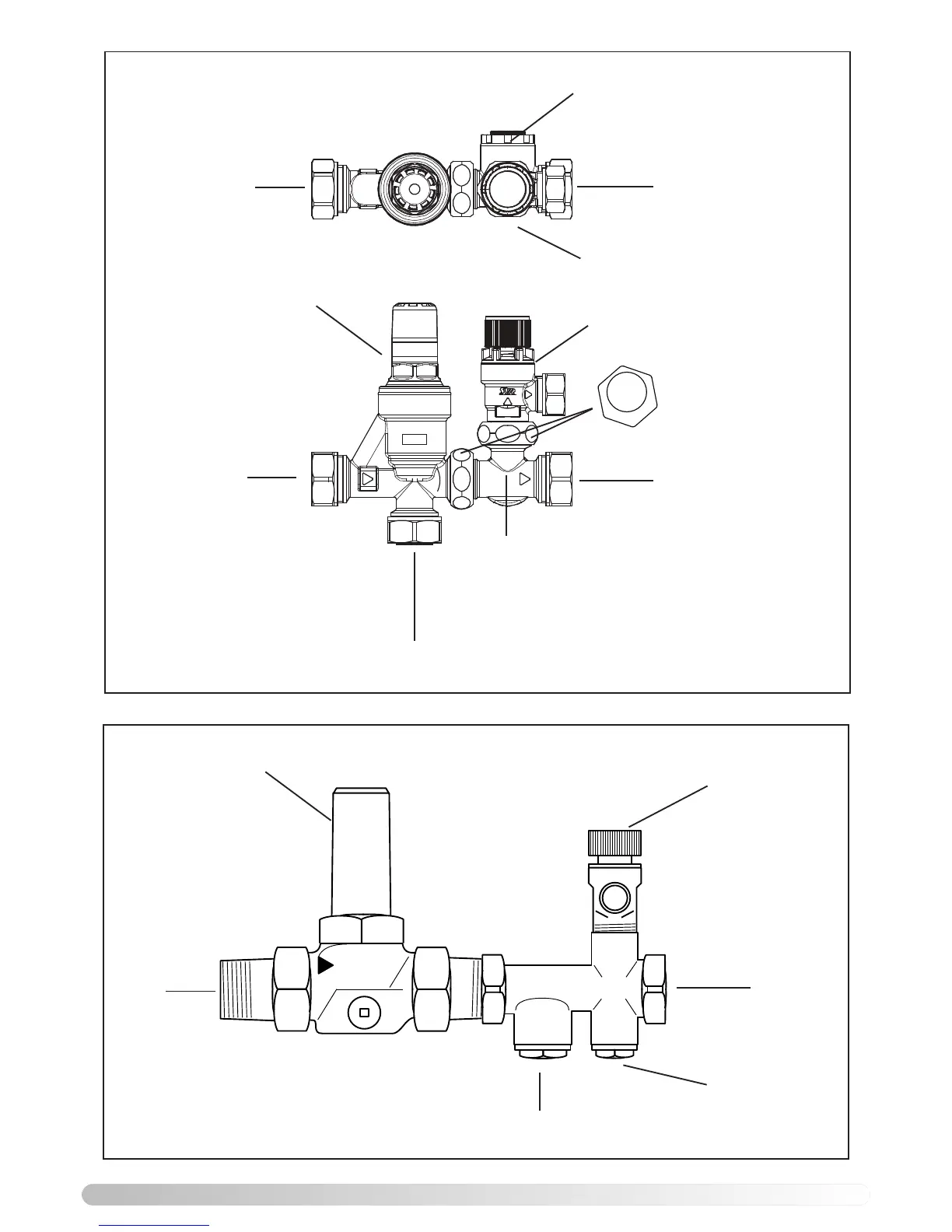

For Classico HE STD and
STI 500 models
28mm COLD
MAINS IN
28mm TO
CYLINDER
SERVICEABLE 1” PRESSURE REDUCING
CARTRIDGE AND LINE STRAINER
(SET AT 3.5 BAR)
3/4” B.S.P. CONNECTION
FOR EXPANSION VESSEL
EXPANSION RELIEF VALVE
(SET AT 6 BAR)
1” BALANCED COLD WATER TAKE OFF
WITH NON-RETURN VALVE
For ST 100, Aquabravo ITD, ITI, ITSI,
Classico HE STD and STI models up to 300l
22mm COLD
MAINS IN
22mm COLD
MAINS IN
22mm TO WATER HEATER
3/4” B.S.P. CONNECTION
FOR EXPANSION VESSEL
22mm TO CYLINDER
NON-RETURN VALVE
(WITHIN HOUSING)
22mm BALANCED COLD WATER TAKE OFF
WITH NON-RETURN VALVE
SERVICEABLE 3/4” PRESSURE REDUCING
CARTRIDGE AND LINE STRAINER
(SET AT 3.5 BAR)
15mm EXPANSION RELIEF
OUTLET TO TUNDISH
IMPORTANT NOTE!
The connecting nut used on
this water group is of an
eccentric design. The offset
hole is not a manufacturing
defect.
EXPANSION RELIEF VALVE
(SET AT 6 BAR)
