Arris VMS1100 Self-Install Guide

3

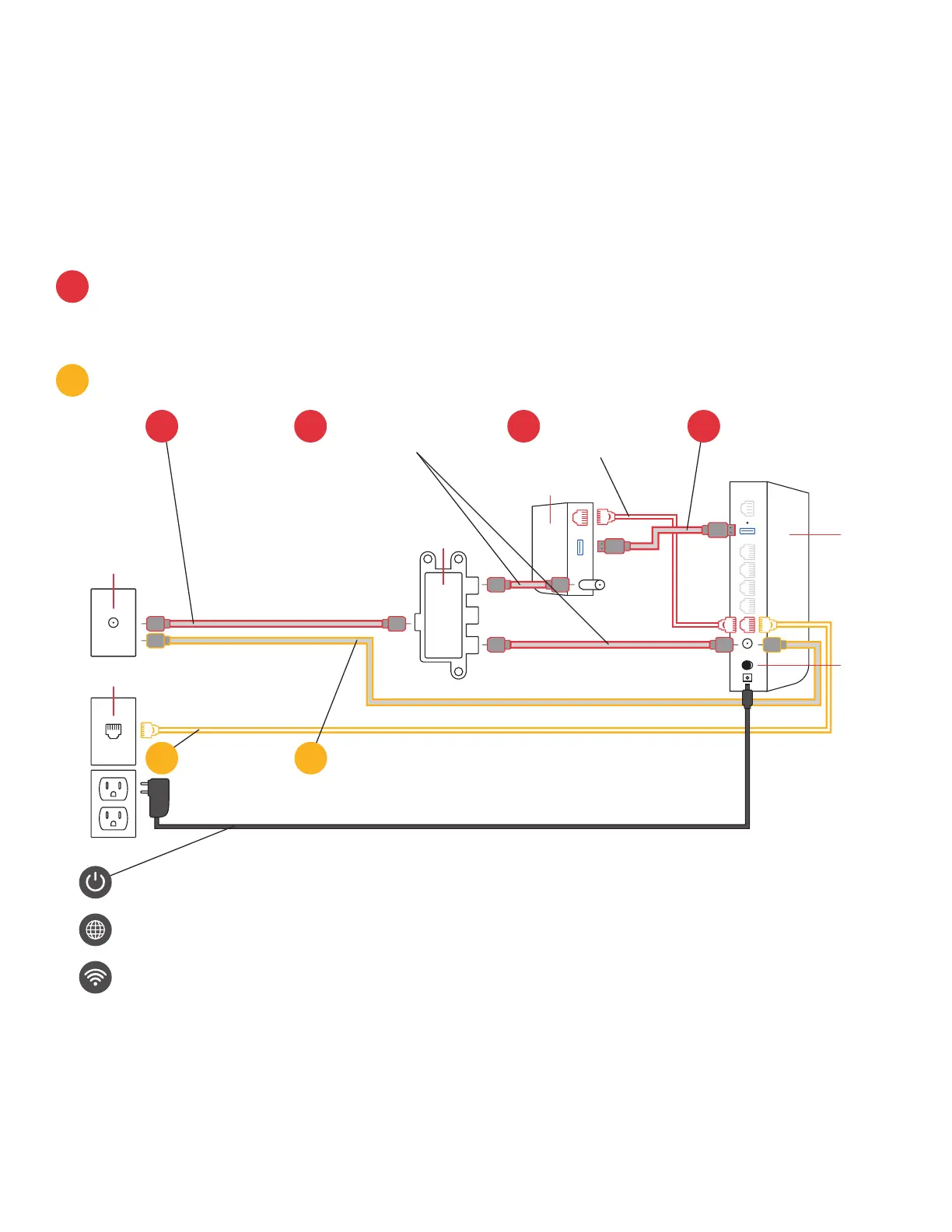

Step 1 | Internet Router Set Up
The globe light, on the front of the router, will flash, then become solid blue when you have internet connectivity
(this may take several minutes)
ON/OFF
Router
Coax jack
Splitter
MoCA adapter
Ethernet jack
Connect USB
power from
MoCA adapter
to router
A4
Connect the MoCA
adapter using an
Ethernet cable into the
router’s ONT/RED port
A3
Connect your devices using your Wi-Fi Name and Password
(see the label on the bottom of your router)
Tips
• For best Wi-Fi coverage, place your router in a central location
• If you are also connecting TV equipment, install your router first
If you received a MoCA adapter, follow Step A (the red connections)
A
–OR—
Plug the power cord into the electric outlet, connect the router and press the ON button
If you did NOT receive a MoCA adapter, follow Step B (the orange connections)
B
B1
Connect the
Ethernet wall jack
to the router
B2
Connect your
coax wall jack to
the splitter using
a coax cable
A1
Connect a coax cable from the
splitter to the MoCA adapter
AND another coax cable from
the splitter to the router
A2
If adding TV equipment
service, connect your coax
wall jack to the router
