Assembly InstructionsOLIVIA Sewing Cabinet Page 1

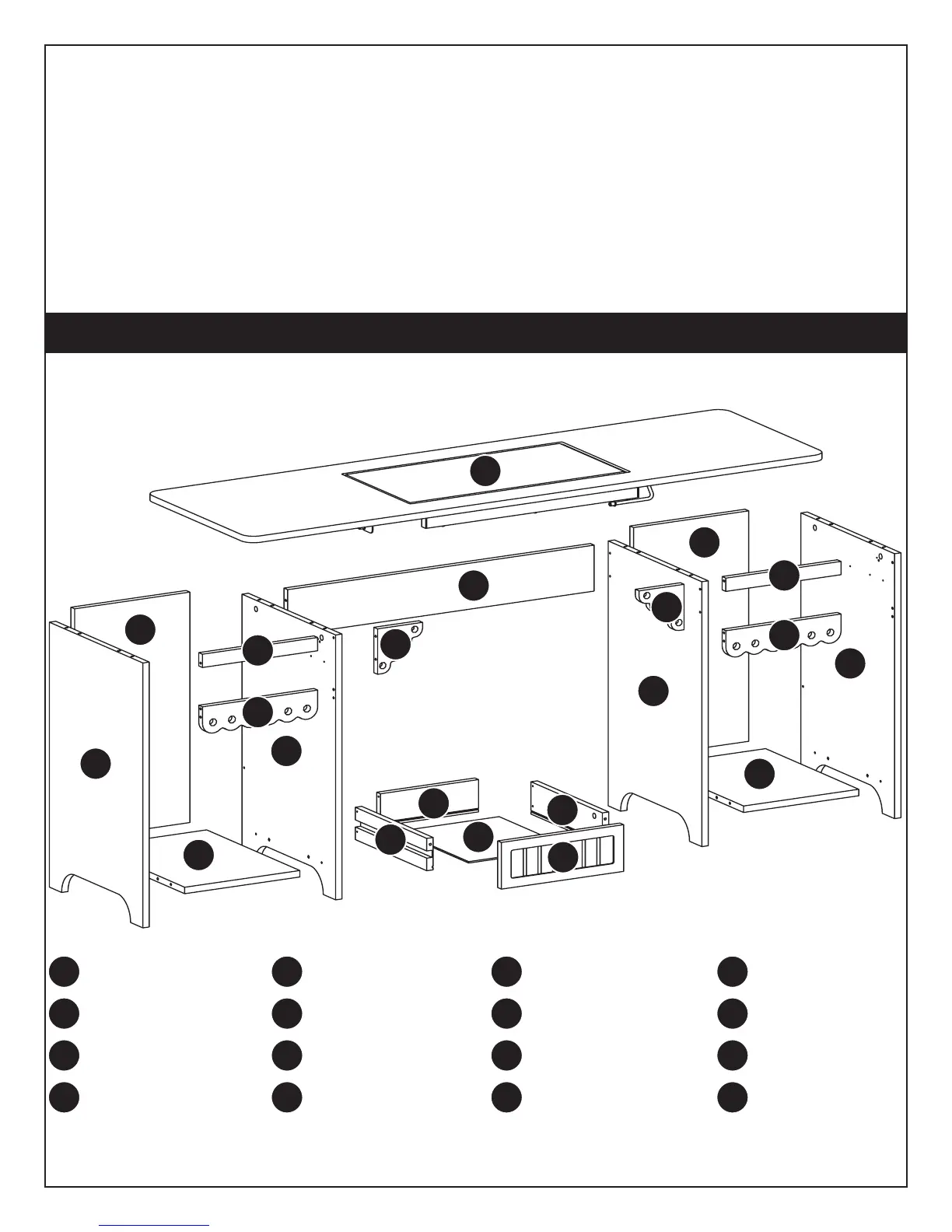

Cabinet Connector Panel
Straight Gingerbread
Piece x2
Cabinet Right Inside
Panel
Cabinet Right Outside
Panel
Drawer Back x2
Drawer Side Left x2
Drawer Side Right x2
Cabinet Side Connector x2
Cabinet Left Outide Panel
Cabinet Left Inside Panel
Gingerbread Piece
(right and left version)
Cabinet Bottom Panel x2
Cabinet Back Panel x2
Drawer Front x2
Drawer Bottom x2
If any of these parts arrived damaged, please call us at
1-800-533-7347 and we will send a replacement part out.
For additional strength dab wood glue on tip of screws
before attaching.
Table Top with Sewing
Machine Brace Assembly
NOTE: To assure proper handling of replacement parts
please include the following information:
• Model Number of Unit - 1001 (Crisp White)
1004 (Pistachio)
1009 (Blue)
• Production ID Number
• Number of Part Required
• Your Name, Address, and Phone Number
Notice to Customer:
Before beginning assembly, remove all parts from
the carton. Please review the illustrations below to
determine that all parts are Included.
For assembly or operating assistance, or to report any
missing or damaged parts, you may call or write to:
cs@arrowcabinets.com
1-800-533-7347
Arrow Cabinets
P.O. Box 307, Delavan, WI 53115
TO ORDER REPLACEMENT PARTS CALL
1-800-533-7347
Parts are labeled with capital letters. To reference letters,
turn to the Wood Parts List in the back of your manual.
Wooden Materials
To Next Page
