artemis
сomponents
manual center

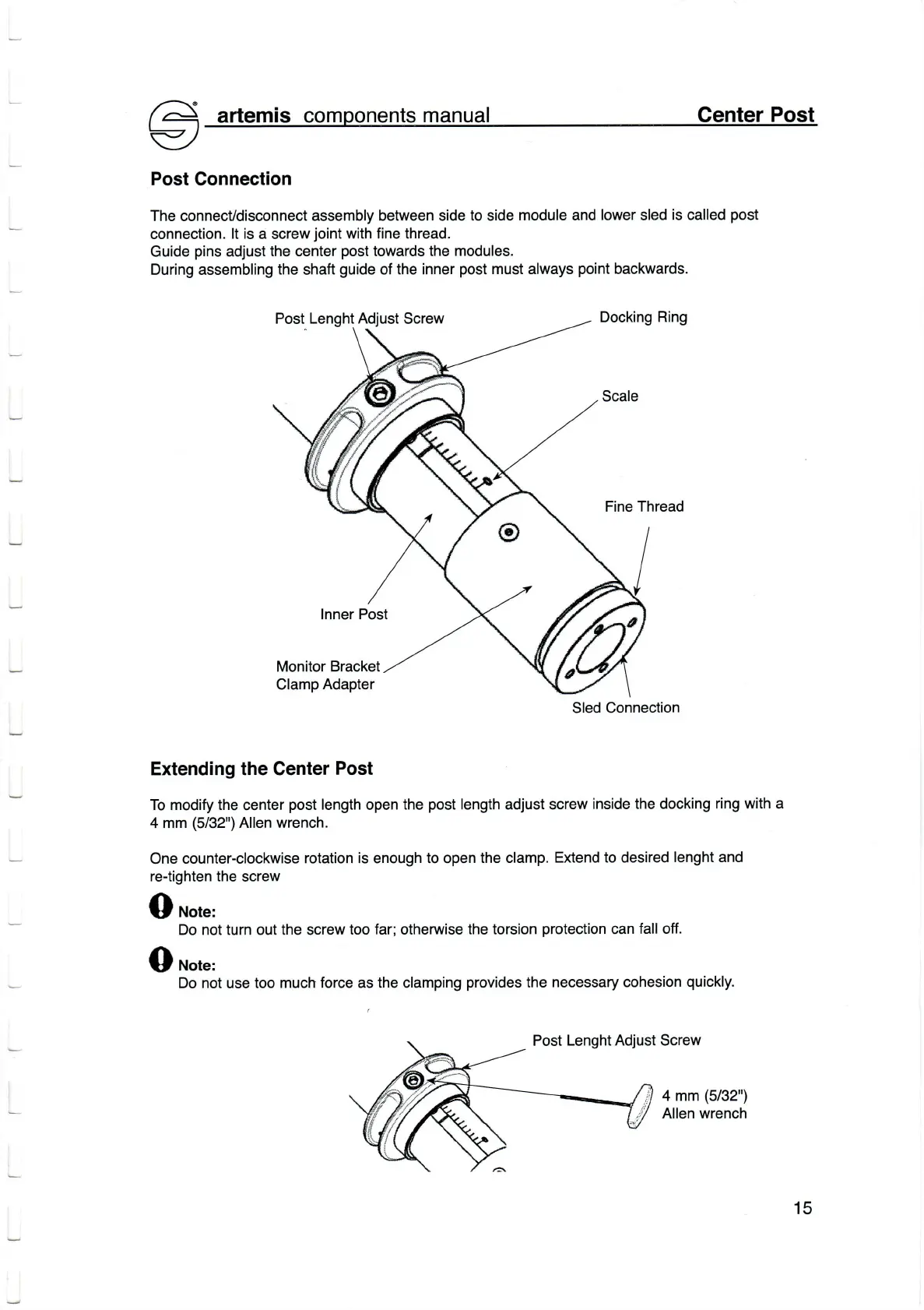

Post
Post
Conneсtion
Тhe сonneсVdisсonneсt
assemb|y between side to side
modu|e and
|ower
sled
is сal|ed
post
оonneсtion.
|t is
a sсrew
joint
with fine thread
Guide
pins
аdjust
the сenter
post
towards the
modu|es'
During assembIing
the
shaft
guide
of the inner
post
must a|ways
point
baсkwards.
Doсking
Ring
Fine Тhread
lnner
Post
Monitor Braсket
Clamp
Adapter
S|ed Conneсtion
Еxtending the Center
Post
To modify
the
сenter
post
Iength
open
the
post
|ength adjust sсrew
inside the
doсking ring with a
4 mm
(5132,')Allen
wrenсh.
one
counter.сloсkwise
rotation is enough to open
the сlamp.
Extend to desired
|enght and
re-tighten the sсrew
O
ro*.,
O
ro,"=
Do not turn out the screw
too far; otherwise the torsion
proteсtion
сan
faII off.
Do not use too
muсh forсe as the сlamping
provides
the
neоessary сohesion
quiсk|y'
Post
Lenght Adjust Sсrew
4 mm
(5/32")
A||en
wrenсh
15
