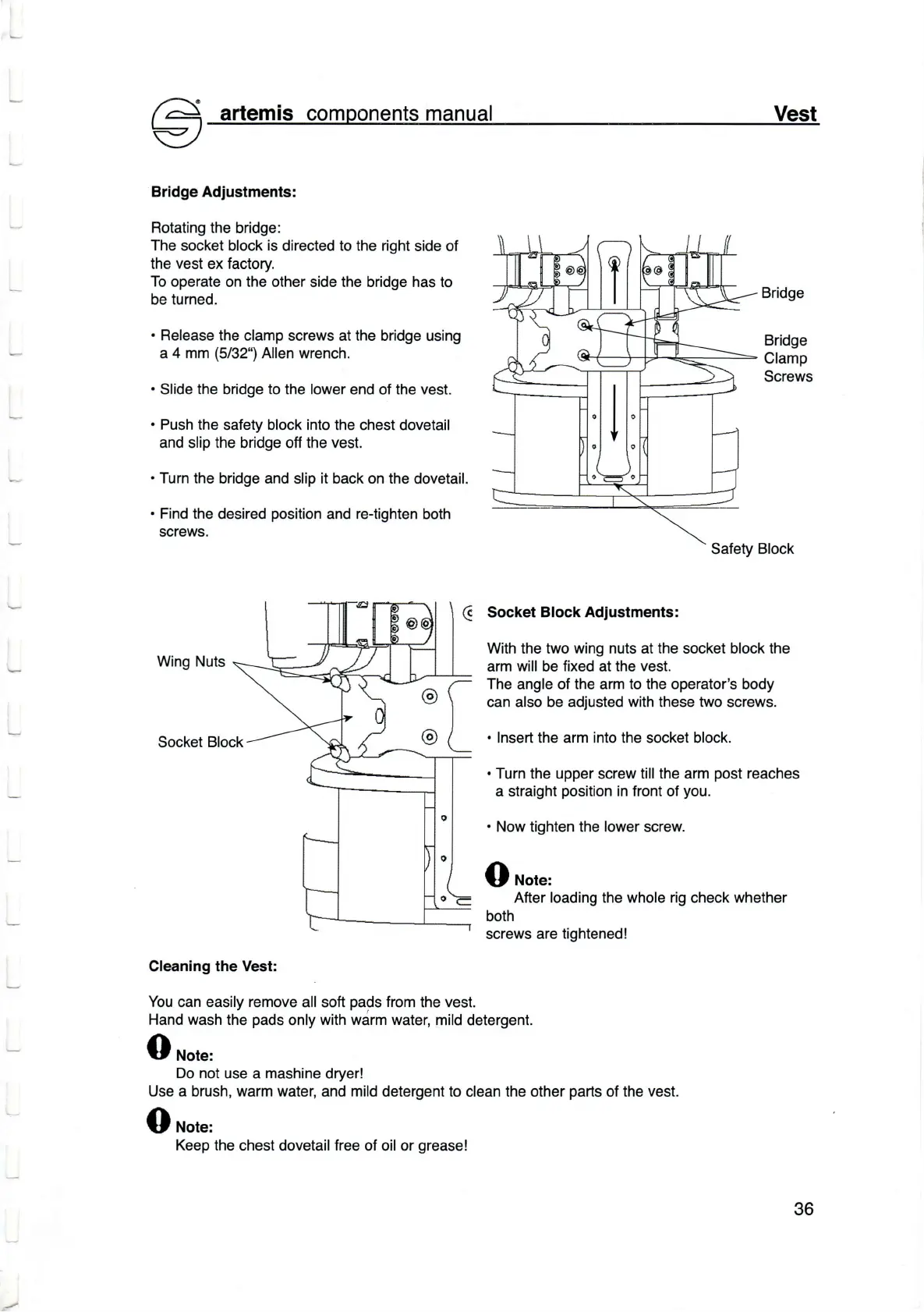

Bridge Adjustments:
Rotating
the bridge:
Тhe soсket bIoсk is
direсted
to the right
side of
the vest ex faсtory.
To
operate on the other
side
the bridge has
to
be turned.
.
Re|ease the
сlamp sсrews at the bridge using
a 4 mm
(5132")
A|len wrenсh.
.
Slide the bridge to the lower
end of
the vest.
.
Push the
safety
b|oсk
into the сhest dovetai|
and slip the bridge off the vest.
.
Тurn the bridge and
slip
it bасk on the
dovetai|.
.
Find the
desired
position
and re-tighten both
sсrews'
Wing
Nuts
@Г
o(_
Safety
Bloсk
Socket
Bloсk Adiustments:
With the two wing nuts at the soсket b|oсk the
arm will be
fixed
at the
vest.
The
аngle
of the
arm
to the operator's
body
сan aIso be adjusted with these two sсrews.
.
|nsert the arm into the soсket b|oсk.
.
Тurn the upper sсrew ti||
the arm
post
reaсhes
a
straight
position
in front of
you.
.
Now tighten the |ower sсrew.
tll
Note:
After |oading the who|e rig сheсk whether
both
sсrews
are tightened!
Bridge
Bridge
Clamp
Sсrews
Soсket
B|oсk
Cleaning the Vest:
You
сan easily
remove
a|l soft
pads
from
the vest.
Hand wash the
pads
only
with warm water,
mild detergent.
O
*o,",
Do not use a mashine
dryer!
Use a brush, warm Water,
and
miId
detergent to с|ean the other
parts
of the
vest.
O
*o,",
Keep the сhest
dovetaiI
free
of oil or
grease!
oo
O@
:t
l. шT
/-z/
s
{
q
4-
f<
>
Irl
"U
36
