Aruba Instant On AP15 User Manual

Aruba Instant On AP15 Access Point | Installation Guide 7

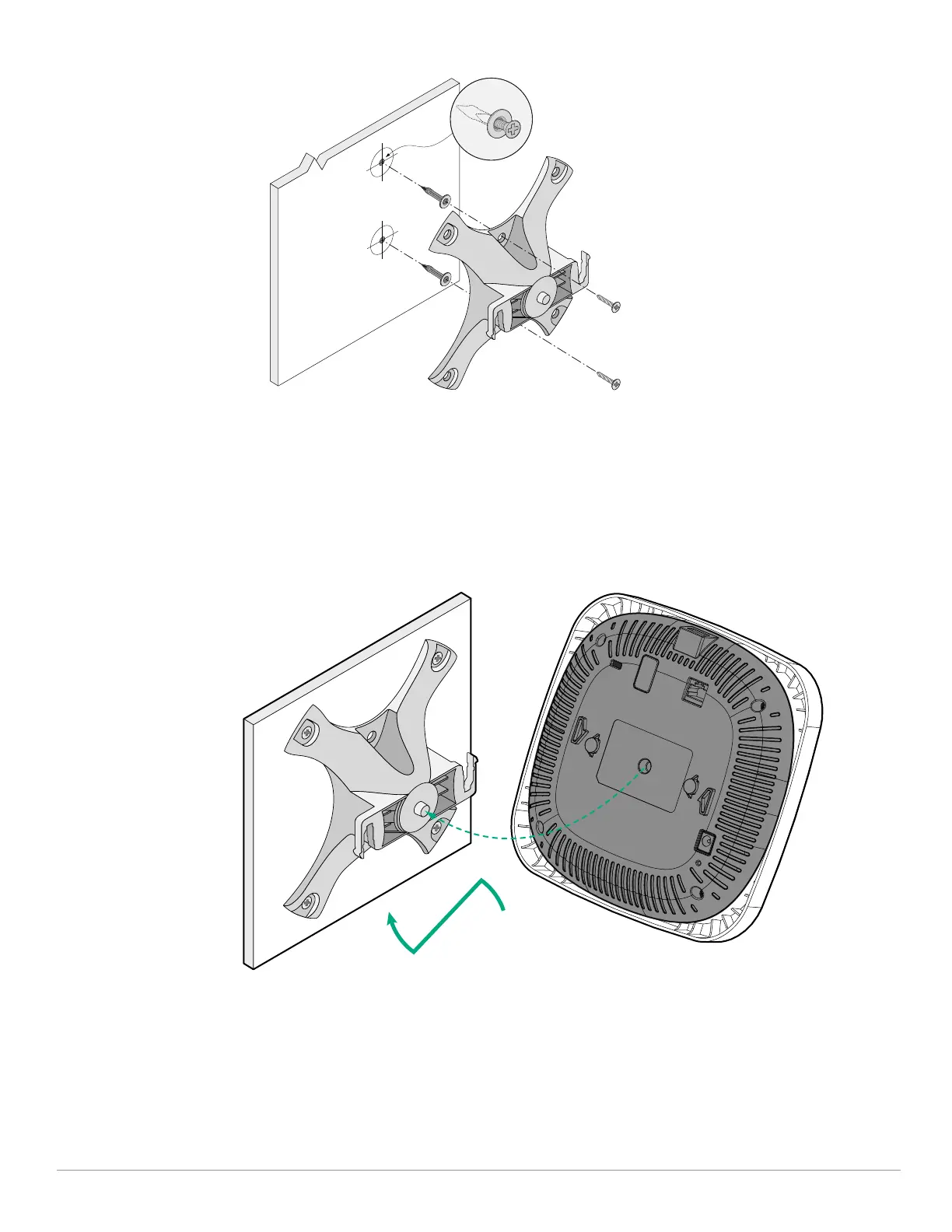

Figure 8 Attaching the Bracket to a Wall (Alternate)
2. Attach necessary cables to the AP
3. Attach the AP to the secured mount bracket as shown in Figure 9.
a. Align the AP with the mount bracket, placing the AP so that it’s mounting tabs are at an angle of
approximately 30 degrees to the mount bracket.
Pushing towards the solid surface, rotate the AP clockwise until it clicks into place (see Figure 10).
Figure 9 Attaching the AP to the Mount Bracket

Aruba Instant On AP15 Specifications

General

Brand	Aruba
Model	Instant On AP15
Category	Wireless Access Point
Language	English
