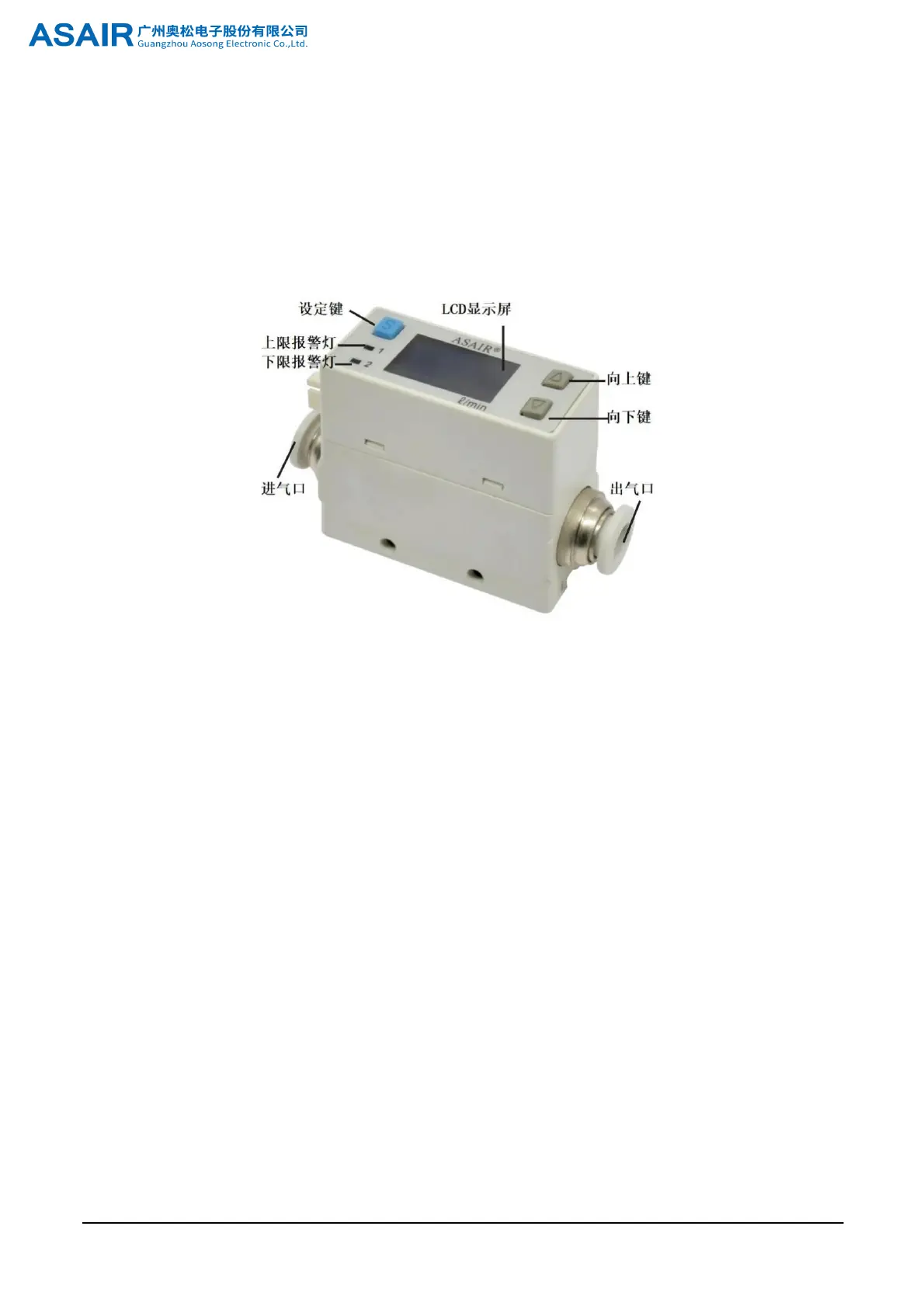

Figure 2 shows the appearance structure and working interface of AFM0725, including the sensor air duct and working interface. The working interface includes an LCD
display screen and operation buttons. The contents displayed on the LCD include the Modbus communication address of the flowmeter, gas temperature, cumulative flow and
instantaneous flow. The buttons include up, down and set buttons, and the LCD lights 1 and 2 are the upper limit warning light and the lower limit warning light respectively. The
sensor air duct is below the working interface, including the air inlet and the air outlet.
1. Appearance structure and interface definition
2 of
www.aosong.com
12
Figure 2. AFM0725 Block
July 2022
Diagram
1.1 Appearance structure
