Step 1:
Disconnect the power and wait five minutes.
Step 2:

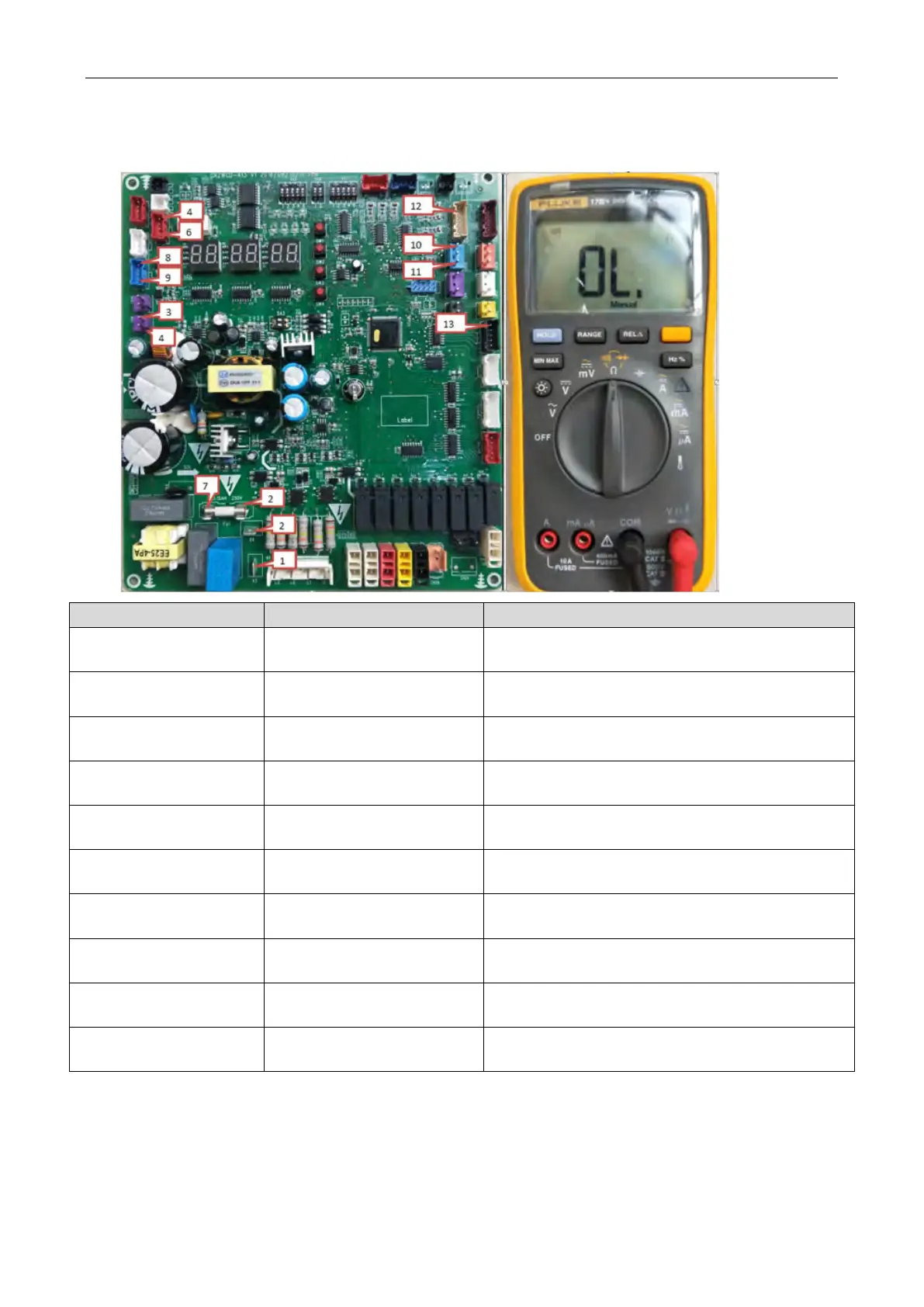

As shown in the figure, switch the multimeter to the diode gear. Point the black and red
probes to the following positions to check if the main board is normal.
Black probe
Red probe
Symptom
X5 (1) X4 (2)
The main board is normal if the multimeter
does not beep.
CN9 (3) CN9 (4)
The main board is normal if the multimeter
does not beep.
Anode of fuse (2) Cathode of fuse (7)
The fuse is damaged and needs to be replaced
if the multimeter does not beep.
CN1 (4) CN1 (6)
The main board is normal if the multimeter
does not beep.
CN12 (8) CN12 (9)
The main board is normal if the multimeter
does not beep.
CN58 (11) CN58 (10)
The main board is normal if the multimeter
does not beep.
CN58 (11)
CN54 (12)
The main board is normal if the multimeter
does not beep.
CN58 (11)
CN17 (13)
The main board is normal if the multimeter
does not beep.
CN58 (10)
CN54 (12)
The main board is normal if the multimeter
does not beep.
CN58 (10)
CN17 (13)
The main board is normal if the multimeter
does not beep.
