ascon Gammadue Series User Manual

7
1
3
2
2
1
2
1
1
2

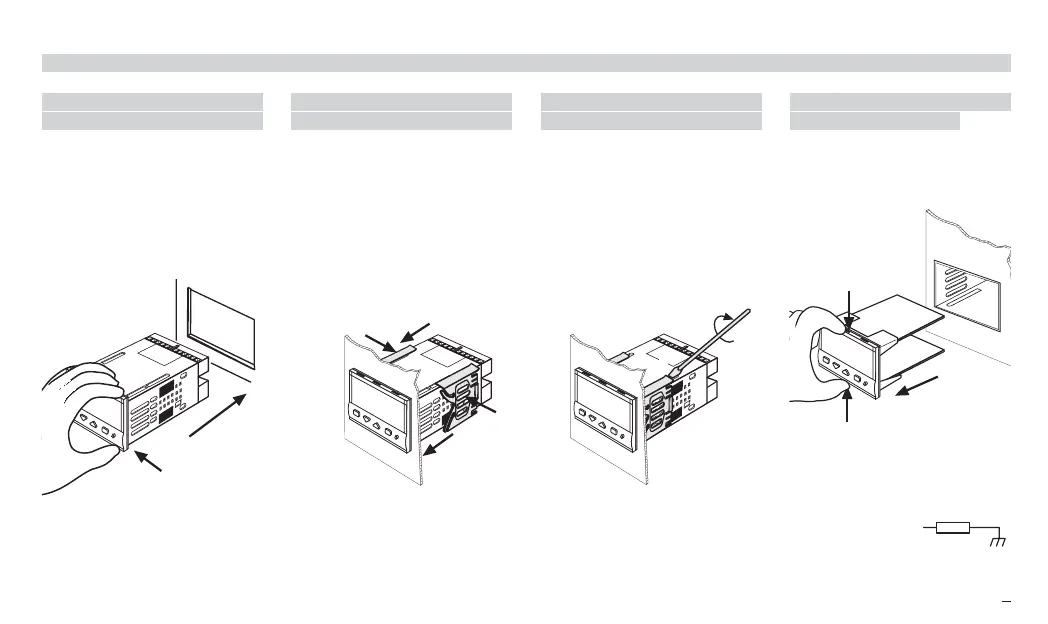

1.5.1 INSERT
THE INSTRUMENT
1 Prepare panel cut-out
2 Check-front panel gasket
position
3 Insert the instrument through
the cut-out
1.5.2 INSTALLATION
SECURING
1 Fit the mounting clamps as
shown
2 Push the mounting clamps
towards the panel surface to
secure the instrument
1.5.3 CLAMPS
REMOVING
1 Insert the screwdriver in the
clips of the clamps
2 Rotate the screwdriver
1.5.4 INSTRUMENT
UNPLUGGING
B
1 Push and
2 Pull forward to remove the
instrument
1.5 PANEL MOUNTING [1]
UL note
[1] For Use on a Flat Surface of a Type 2 and Type 3 ‘raintight’ Enclosure.
Electrostatic discharges can
damage the instrument
Before removing
the instrument
the operator must
discharge himself
to ground
1MΩ
1
1
2
1- Installation
J1 EN-ed3 17-02-2009 15:05 Pagina 7
