30
TECHNICAL DATA
TECHNISHE DATEN CARACTERISTIQUES TECHNIQUES DATOS T ÉCNICOS DATI TECNICI DADOS T ÉCNICOS TEKNISKE DATA

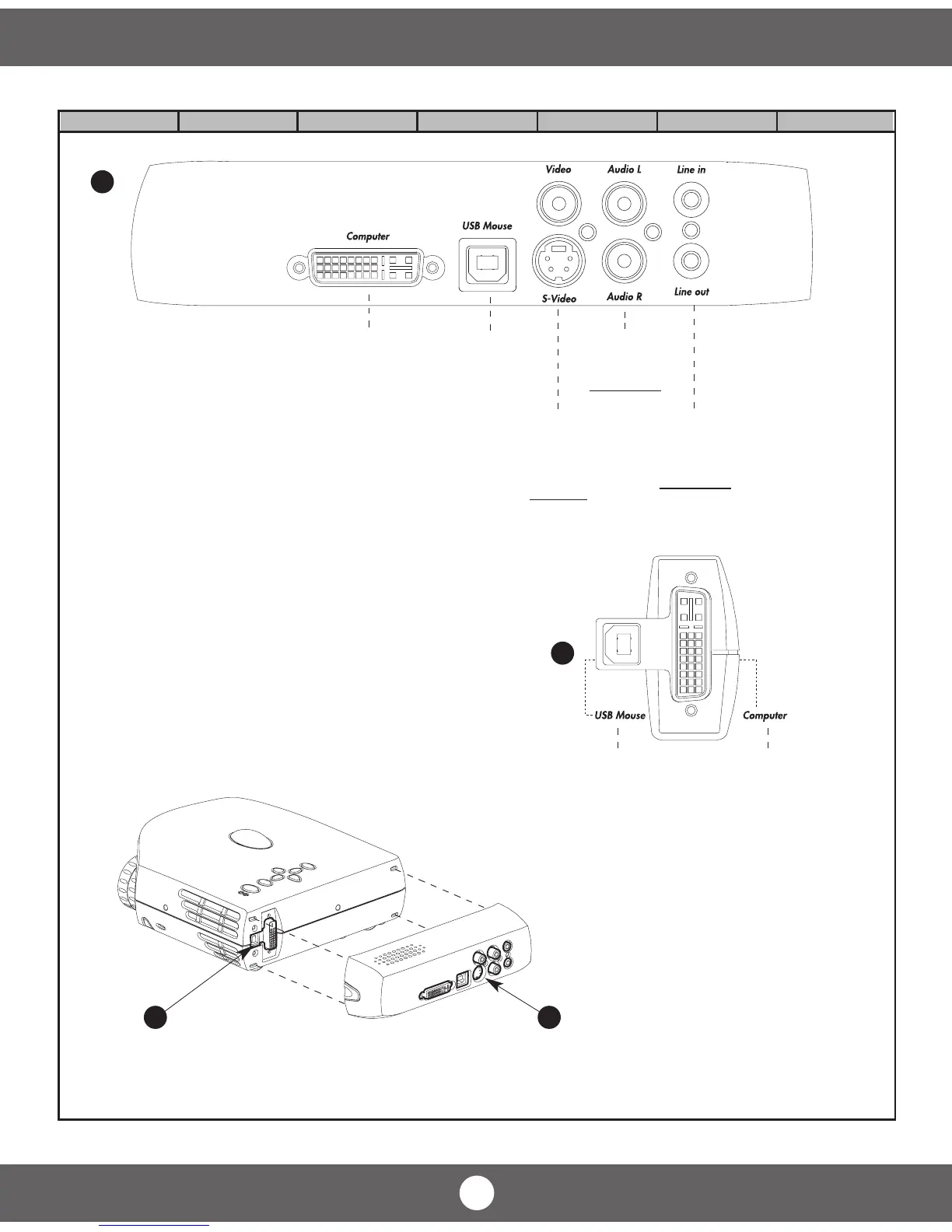

CONNECTORS ANSCHLÜSSE CONNECTEURS CONECTORES CONNETORI CONECTORES KONTAKTER
DIGITAL
USB
1 VCC
2 -Data
3 +Data
4 GND
1
2
4 PIN MINIDIN
FEMALE
1 GND
2 GND
3 Luma
4 Chroma
3.5 mm
JACK
STEM: Audio left
SHIELD: GND
STEM: Audio right
SHIELD:GND
3.5 mm
JACK
TIP: right
RING: left
STEM: common
TIP: right
RING: left
STEM: common
DVI-D
MAIN PIN FIELD
DIGITAL
USB
1 VCC
2 -Data
3 +Data
4 GND
1 TMDS Data 2-
2 TMDS Data 2+
3 TMDS Data 2/4 Shield
4 Not used
5 Not used
6 DDC Clock
7 DDC Data
8 Analog Vertical Sync
9 TMDS Data 1-
10 TDMS Data 1+
11 TMDS Data 1/3 Shield
12 Not used
13 Not used
14 +5V Power
15 Ground (+5, Analog H/V Sync.)
16 Hot Plug Detect
17 TMDS Data 0-
18 TMDS Data 0+
19 TMDS Data 0/5 Shield
20 Not used
21 Not used
22 TMDS Clock Shield
23 TMDS Clock+
24 TMDS Clock-
25 C1 = Red
26 C2 = Green
27 C3 = Blue
28 C4 = HSync Analog
29 AGND
DVI-D
MAIN PIN FIELD
1
2
PHONO/RCA
FEMALE
STEM: composite
SHIELD: GND
1 TMDS Data 2-
2 TMDS Data 2+
3 TMDS Data 2/4 Shield
4 Not used
5 Not used
6 DDC Clock
7 DDC Data
8 Analog Vertical Sync
9 TMDS Data 1-
10 TDMS Data 1+
11 TMDS Data 1/3 Shield
12 Not used
13 Not used
14 +5V Power
15 Ground (+5, Analog H/V Sync.)
16 Hot Plug Detect
17 TMDS Data 0-
18 TMDS Data 0+
19 TMDS Data 0/5 Shield
20 Not used
21 Not used
22 TMDS Clock Shield
23 TMDS Clock+
24 TMDS Clock-
25 C1 = Red
26 C2 = Green
27 C3 = Blue
28 C4 = HSync Analog
29 AGND
