Asko T784 - Installation Instructions; Connecting to a Ventilation Duct

Connecting to a ventilation duct
You will need a UL-CSA-approved, 4-inch ridged
metal exhaust duct. If a flexible duct is used, it
must comply with the Outline for Clothes Dryer
Transition Duct. Subject 2158A and maximum
length of 2.4 m (8 feet).
NOTE!
The more bends and the longer the duct, the
less air will circulate through the machine, which
will impede drying performance. We recommend
that you cut off any excess exhaust duct and run
the duct with as few bends as possible. And
make any necessary bends as gentle as
possible.
NOTE!
Maximum duct length of 60 feet and 4 elbows
are allowed. Subtract 4 feet of duct for each 90°
elbow. If more than 20 feet of duct is needed,
the diameter must be increased to 6" or 8" (152
mm or 203 mm).
NOTE!
When installing in warm climates (77° F and
above) with high humidity levels, do not route
the air exhaust duct upwards.

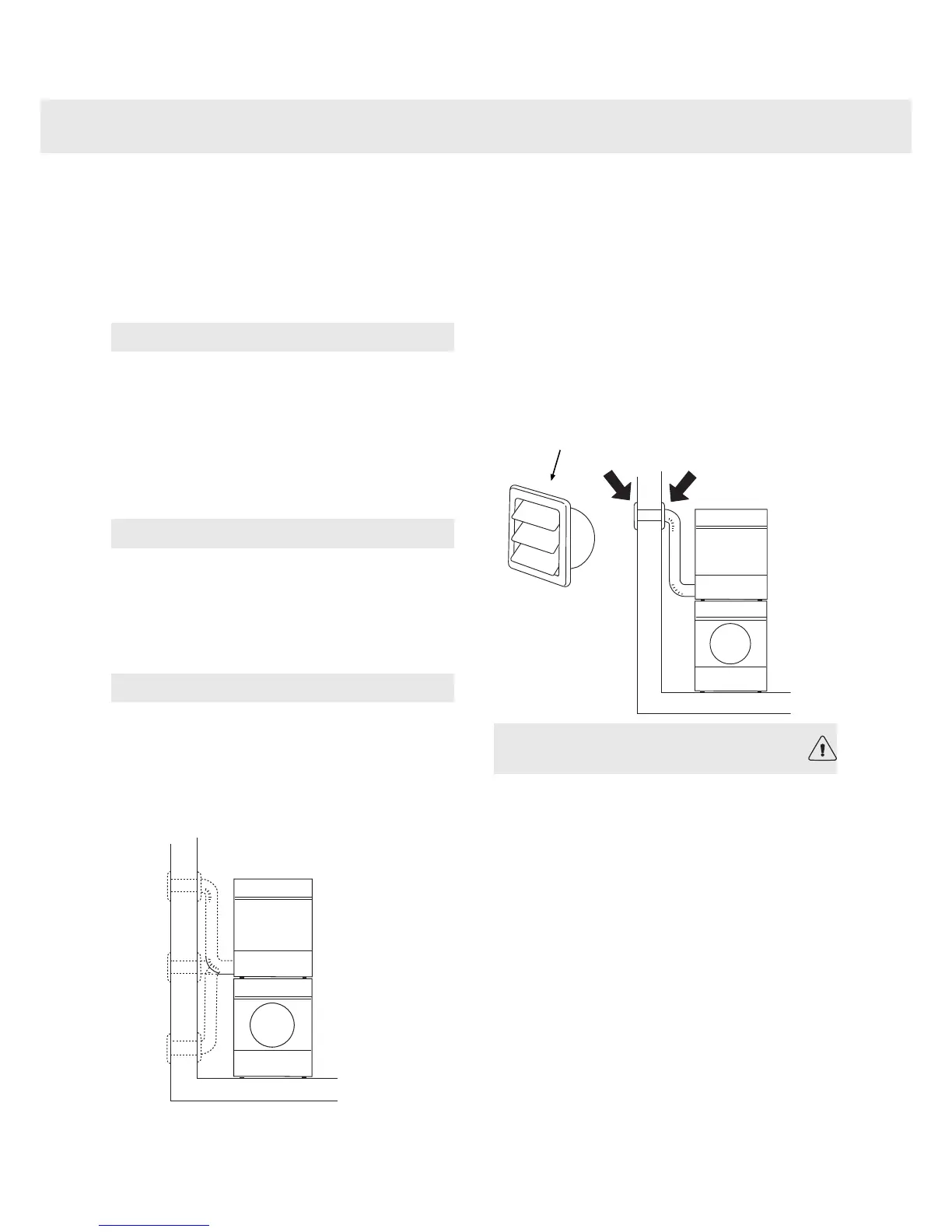

Examples of
installations
subtract 4 feet
for every 90°
elbow
To connect the exhaust duct to a
ventilation outlet, follow the steps below:
1. Connect the exhaust duct to a ventilation
exhaust fitting or to a discharge through the
wall.
2. Secure the duct joint to the outlet stub on the
machine.
3. Run the duct with as few bends as possible to
the point of discharge.
Ventilation grille
(not supplied
with machine)
WARNING!
This appliance shall not be exhausted into a
chimney, a wall, a ceiling, an attic, a crawl space
or a concealed space of a building. Only a rigid
or flexible metal duct shall be used for
exhausting. Only a metal ventilation grill shall be
used. If the duct is taken to a wall outlet, a
ventilation grill shall be fitted to prevent reverse
flow of cold air. Fit the ventilation grill to the
outside or inside of the wall.
