This document is the owner's manual for the Aspes ASB108BC2 Heat Pump Dryer. It provides comprehensive information on the dryer's function, technical specifications, usage, and maintenance.

Function Description:

The Aspes ASB108BC2 is a heat pump tumble dryer designed for household use. Its primary function is to dry washed fabrics efficiently and gently. The dryer utilizes a heat pump system, which is generally more energy-efficient than conventional dryers. It offers both automatic controlled drying, which uses sensors to detect moisture and adjust drying time, and time-controlled drying, allowing users to set a specific duration. The appliance features various programs tailored to different fabric types and drying needs, including Standard, Cotton, Synthetic, Bulky Item, Towel, Wool, Duvet, Baby Care, Warm Air, Refresh, Time, Underwear, Denim, Shirts, and Sportswear. A "Cool Down" cycle is integrated at the end of each program to ensure items are left at a safe temperature and prevent damage. The dryer also includes an "Anti-Crease" function, which is a default setting at the end of each program, with an option for a longer duration to minimize wrinkles.

Important Technical Specifications:

Model: ASB108BC2
Dryer Capacity: 8.0 kg
Power Supply: 220-240V/50Hz
Rated Power: 650 W
Weight: 46 kg
Power (left-on mode): 0.36 W
Power (off mode): 0.3 W
Energy Consumption Full Load: 1.35 kWh
Program Time Full Load: 220 minutes
Dimensions (WDH): 595mm x 630mm x 850mm
Ambient Temperature Range: 5°C ~ 35°C
Refrigerant Type: R-134a (GWP=1430)
Refrigerant Charging: 0.48 kg
System: Hermetically sealed system.
Electrical Connection: Requires a three-core socket with an earth wire, properly grounded. The appliance must be earthed.

Usage Features:

The dryer is operated via a control panel with a program selection dial and various option buttons.

Program Selection Dial: Allows users to choose from a range of drying programs based on fabric type and desired dryness.
Time Button: Used for time-controlled drying and to increase desired drying time.
Child Lock: A safety feature activated by pressing "Time" and "Dry Level" buttons simultaneously for several seconds, locking all buttons except "off". It is released if the door is opened, filter drawer is removed, or water tank is full.
Dry Level: Offers three grades of dryness: Heavy, Strong, and Normal, applicable to specific programs like Daily, Cotton, Synthetic, Bulky Item, and Towel.
Anti Crease: A default setting at the end of programs, with an option for extended duration.
Buzzer: Can be activated or deactivated to provide audible alerts.
Delay Start: Allows delaying the program start by up to 24 hours in 1-hour increments.
Start/Pause Button: Initiates, pauses, or restarts the drying program.
Display: Shows program duration, remaining time, and error codes ("Bi, Bi, Bi" for incorrect option selection).
Indicator Lights: Provide visual feedback on the drying phase (Drying, Cooling, End of program), Child Lock status, Buzzer status, Delay Start, Dry Level, Filter cleaning reminder, and Water Tank full alert.
Loading Laundry: Users are advised to sort laundry, close fasteners, turn double-layered fabrics inside out, and remove all objects from pockets. Overloading should be avoided, and laundry should be thoroughly spun before drying.
Water Discharge: Condensed water can be collected in the water tank or drained directly via a drainpipe.
Door Reversal: The door can be reversed for easier loading/unloading, an operation that must be carried out by qualified personnel.

Maintenance Features:

Regular maintenance is crucial for the dryer's performance and longevity.

Filter Cleaning: The lint filter must be cleaned after every drying process. It can be cleaned by hand or with warm water if clogged. The inner surfaces of the loading door should also be cleaned.
Water Container Emptying: The water tank collects condensed water and must be emptied after each drying cycle to prevent overflow and program suspension.
Humidity Sensor Cleaning: The humidity sensor in the tumbler should be cleaned regularly to remove calcium oxide buildup, which can affect its accuracy.
Filter Drawer Cleaning: The filter drawer, located behind a cover, contains a sponge and filter cloth that collect lint and fiber. Both levels of the filter drawer should be cleaned after each drying process, either by hand or by washing with warm water and drying thoroughly.
Evaporator Cleaning: Lint accumulated on the evaporator fins, located behind the filter drawer, should be cleaned at least twice a month using a vacuum cleaner or a soft brush. Protective gloves are recommended when cleaning by hand to avoid injury.
Control Panel Cleaning: Clean with a soft, damp cloth; avoid abrasive substances or direct spray.
Stainless Steel Tumbler Cleaning: Use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel, then dry with a clean cloth.
Dryer Exterior Cleaning: Clean with a soft, damp cloth; avoid abrasive substances and sharp objects that could damage the high-gloss finish.
Safety Precautions: Always disconnect the appliance from the electricity supply before cleaning or maintenance. Do not use combustible liquids for cleaning.

The manual also includes important safety warnings regarding electric shock, possible explosions, fire accidents, short circuits, electric leakage, and personal injury. It emphasizes that the appliance should not be used without the filter and advises against stopping a tumble dry cycle prematurely unless items are quickly removed and spread out to dissipate heat. The manufacturer's warranty is valid only if the appliance is correctly installed, used for normal domestic purposes, and not serviced or tampered with by unauthorized persons.

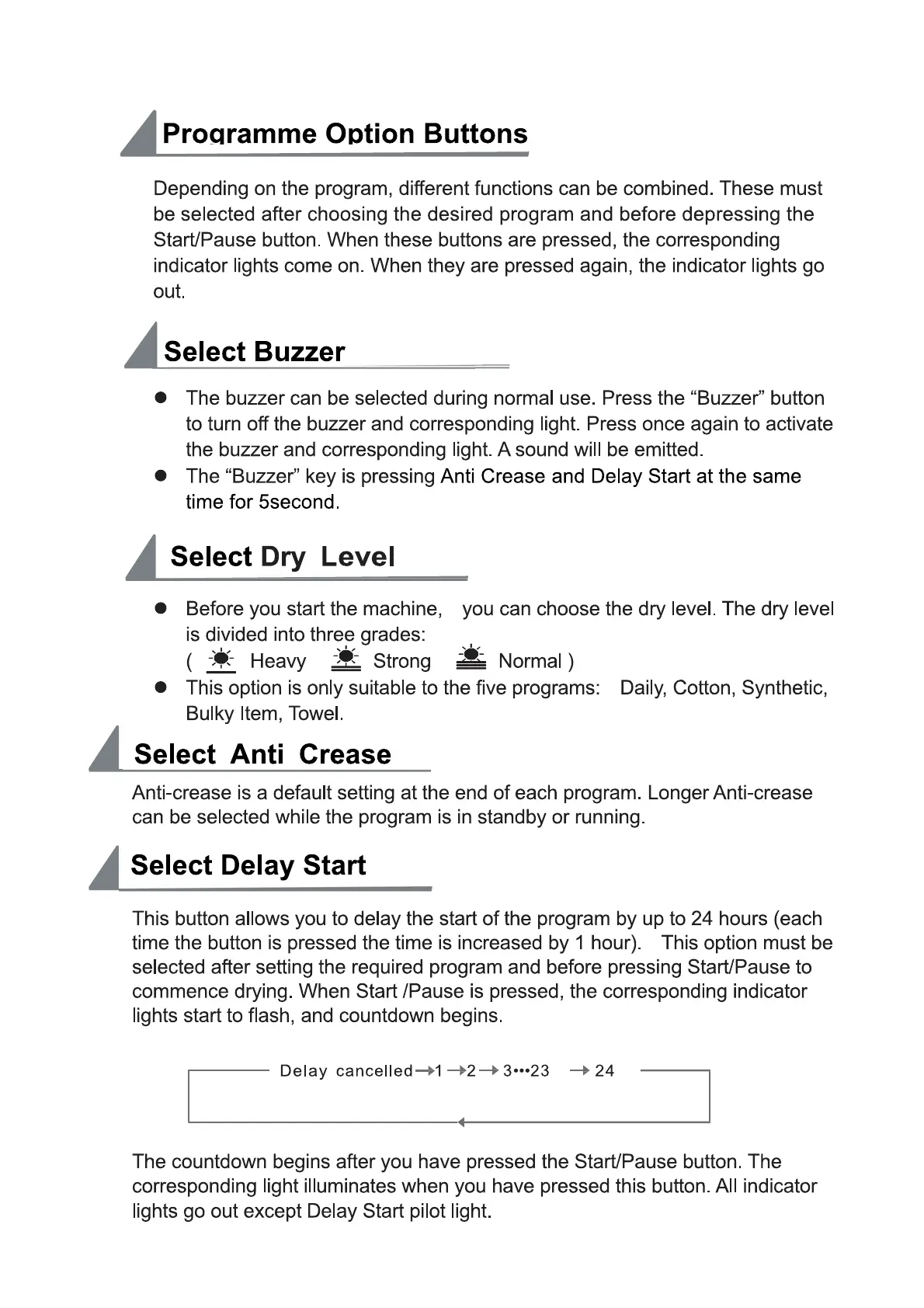

Aspes ASB108BC2 - Page 9
