Mounting

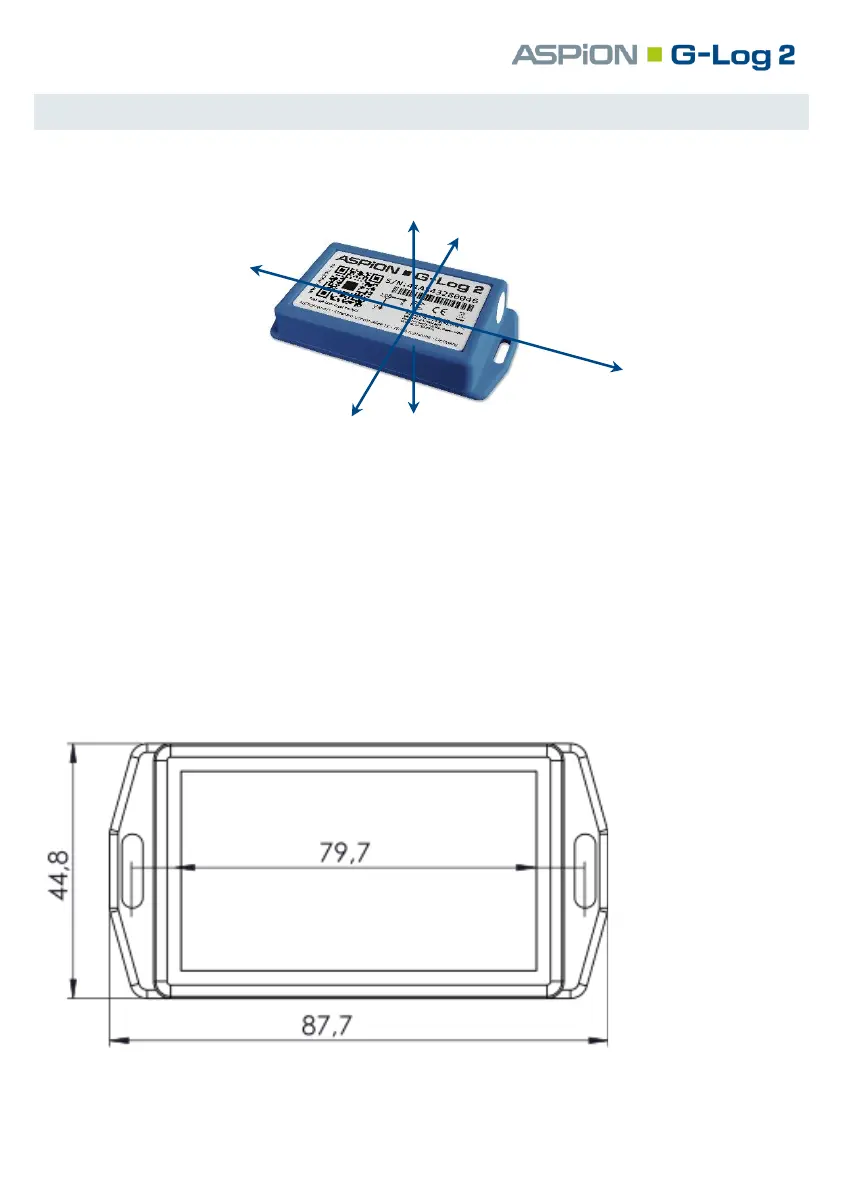

Mounting orientation
To correctly assign the axes in case of shock events, the mounting orientation is critical.
Recommended mounting
▪ On steel: M3 ISO 7380 FL
▪ On wood/sheet metal: flathead screws with a maximum thread diameter of 3.5 mm (e.g.
DIN 7981)
▪ Maximum tightening torque: 0.4 - 0.5 Nm
▪ Alternatively, you can use industrial adhesive tape or cable tie
Mounting template
To easily mount the sensor, copy this mounting template (scale: 1:1).
