2.11 M.2 SSD Module Installation Guide (M2_1)
e Ultra M.2 Socket (M2_1, Key M) supports type 2242/2260/2280/22110 SATA3 6.0 Gb/
s module or a M.2 PCI Express module up to Gen4 x4 (16GT/s x4) (Matisse).
e Hyper M.2 Socket (M2_1, Key M) supports type 2242/2260/2280/22110 SATA3 6.0
Gb/s module or a M.2 PCI Express module up to Gen3 x4 (8GT/s x4) (Picasso).
e diagrams in this documentation are for reference only. e actual supported M.2 type
varies per motherboard.

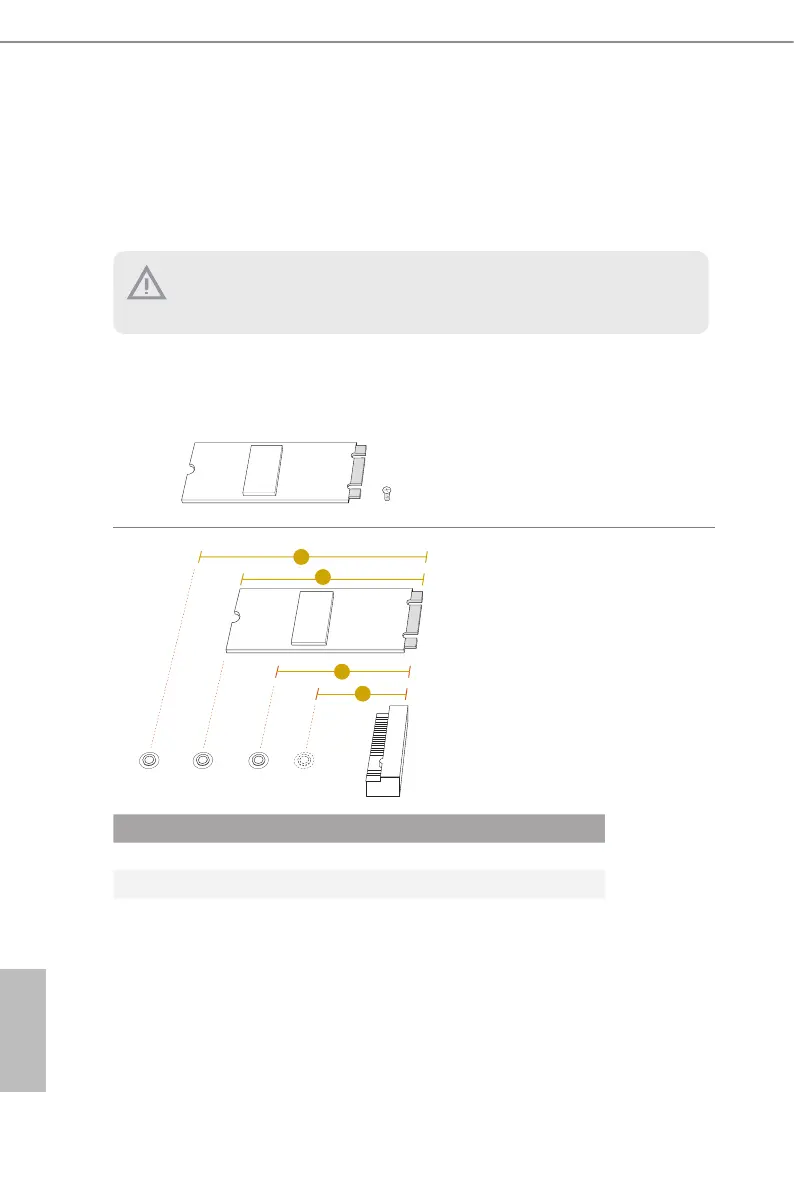

Installing the M.2 SSD Module
Step 1
Prepare a M.2 SSD module and the
screw.
3
2
4
BCD
A
1
B
Step 2
Depending on the PCB type and
length of your M.2 module, nd the
corresponding nut location to be
used.
No. 1 2 3 4
Nut Location A B C D
PCB Length 4.2cm 6cm 8cm 10cm
Module Type Ty pe 2242 Type2260 Type 2280 Ty pe 22110
