ASROCK 4CORE1600-D800 - V1.0 Installation Guide

22
22
2
ASRock 4Core1600-D800 Motherboard
EnglishEnglish
EnglishEnglish
English

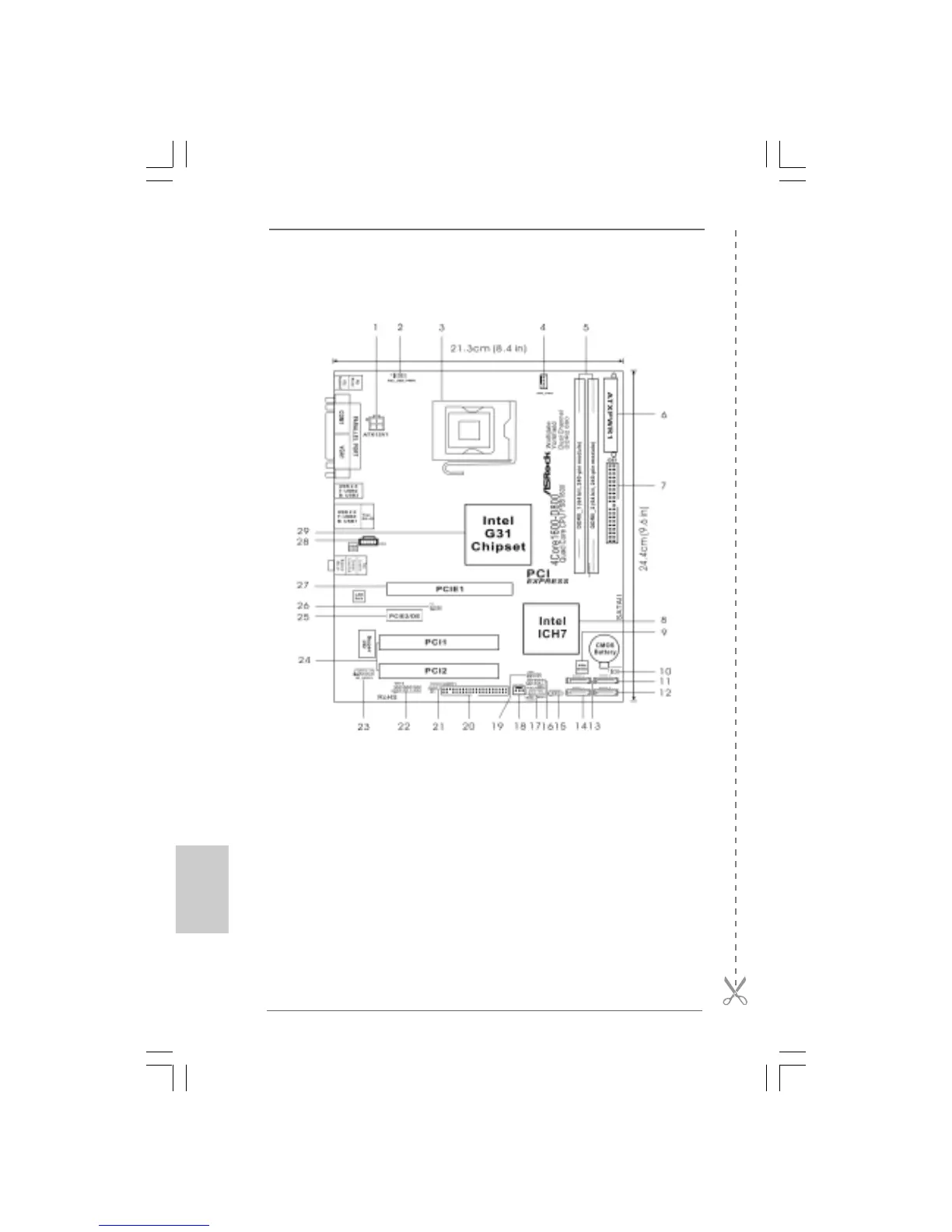

Motherboard LMotherboard L
Motherboard LMotherboard L
Motherboard L
ayoutayout
ayoutayout
ayout
1 ATX 12V Connector (ATX12V1) 16 USB 2.0 Header (USB4_5, Blue)
2 PS2_USB_PWR1 Jumper 17 System Panel Header (PANEL1)
3 775-Pin CPU Socket 18 Chassis Fan Connector (CHA_FAN1)
4 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB6, Blue)
5 2 x 240-pin DDR2 DIMM Slots 20 Floppy Connector (FLOPPY1)
(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 DeskExpress Hot Plug Detection Header
6 ATX Power Connector (ATXPWR1) (IR1)
7 IDE1 Connector (IDE1, Blue) 22 WiFi/E Header (WIFI/E)
8 South Bridge Controller 23 Front Panel Audio Header (HD_AUDIO1)
9 Flash Memory 24 PCI Slots (PCI1 - 2)
10 Clear CMOS Jumper (CLRCMOS1) 25 PCI Express x1 Slot (PCIE2/DE)
11 Fourth SATAII Connector (SATAII_4) 26 FD Jumper
12 Secondary SATAII Connector (SATAII_2) 27 PCI Express x16 Slot (PCIE1)
13 Third SATAII Connector (SATAII_3) 28 Internal Audio Connector: CD1 (Black)
14 Primary SATAII Connector (SATAII_1) 29 North Bridge Controller
15 Chassis Speaker Header (SPEAKER 1)
