RGB LED Headers
(4-pin RGB_LED1)
(see p.1, No. 6)
(4-pin RGB_LED2)
(see p.1, No. 26)
ese two RGB headers are used
to connect RGB LED extension
cable which allows
users to choose from various LED
lighting eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 44 for
further instructions on these two
headers.
Addressable LED Headers
(3-pin ADDR_LED1)
(see p.1, No. 7)
(3-pin ADDR_LED2)
(see p.1, No. 25)
ese two Addressable headers
are used to connect Addressable
LED extension cable which
allows users to choose from
various LED lighting eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 45 for
further instructions on this
header.

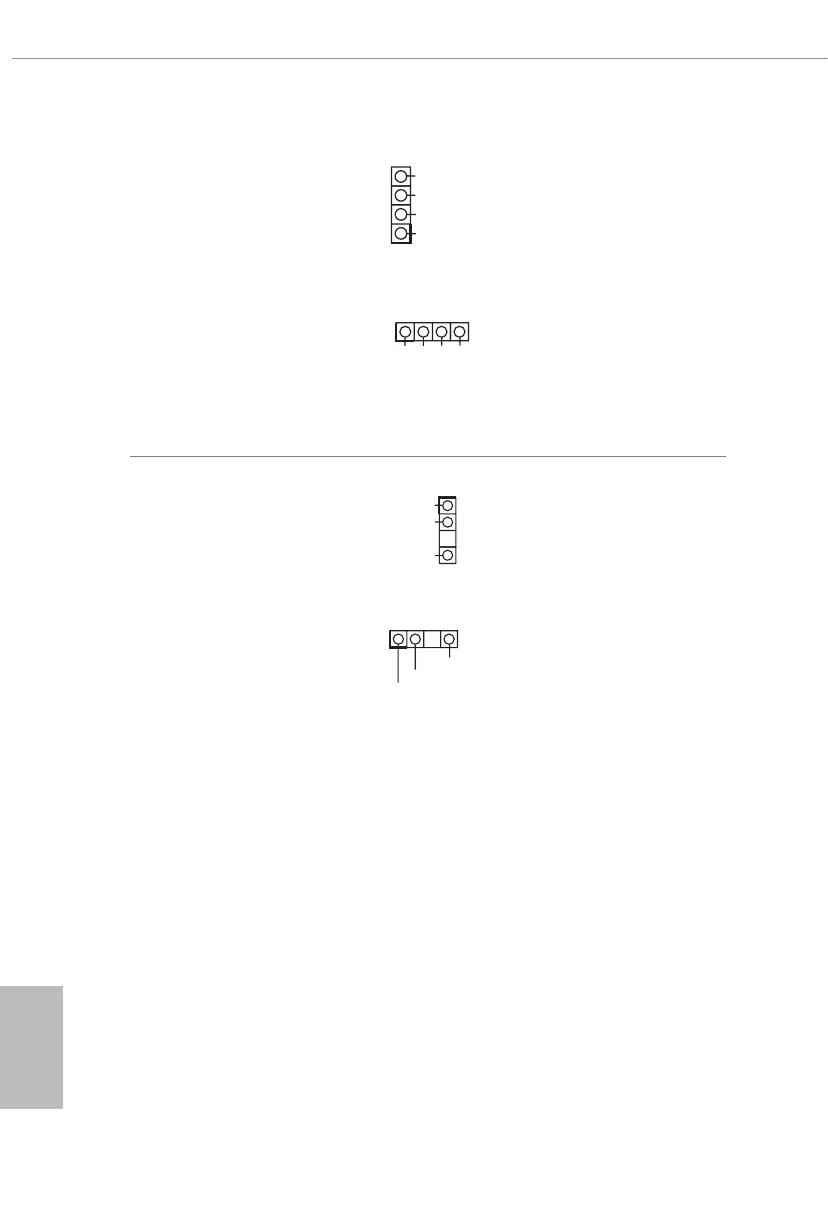

VOUT
