35
B660M-IT X/ac
Deutsch
1.3 Jumpereinstellung

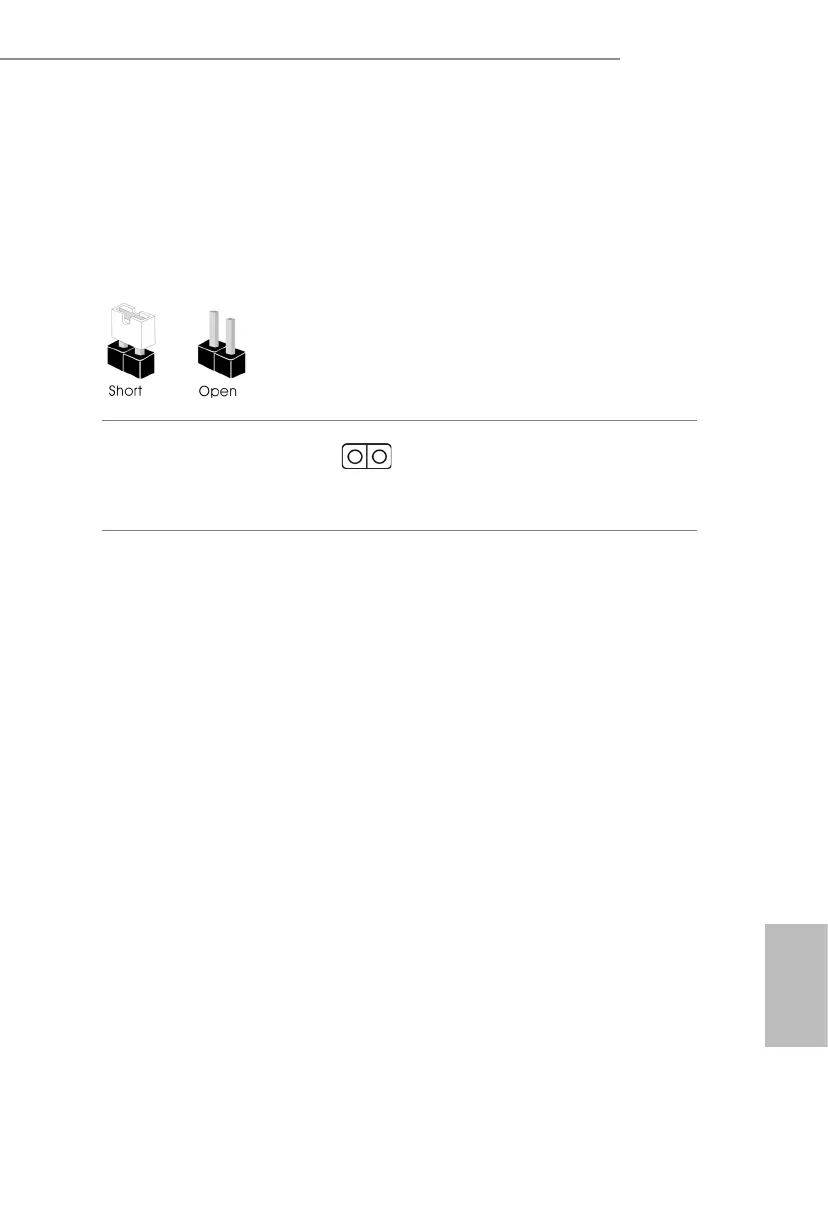

Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den
Kontakten angebracht ist, ist der Jumper „kurzgeschlossen. Wenn keine Jumper-Kappe auf
den Kontakten angebracht ist, ist der Jumper „oen.
CMOS-löschen-Jumper
(CLRMOS1)
(siehe S. 1, Nr. 16)
2-poliger Jumper
CLRMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen und
Rücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer
bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schließen
Sie dann die Kontakte an CLRMOS1 5 Sekunden lang mit einer Jumper-Kappe kurz.
Löschen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den
CMOS direkt nach Abschluss der BIOS-Aktualisierung löschen müssen, starten Sie das
System zunächst; fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie,
dass Kennwort, Datum, Zeit und Benutzerstandardprol nur gelöscht werden, wenn die
CMOS-Batterie entfernt wird. Bitte denken Sie daran, die Jumper-Kappe nach der CMOS-
Löschung zu entfernen.
