ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

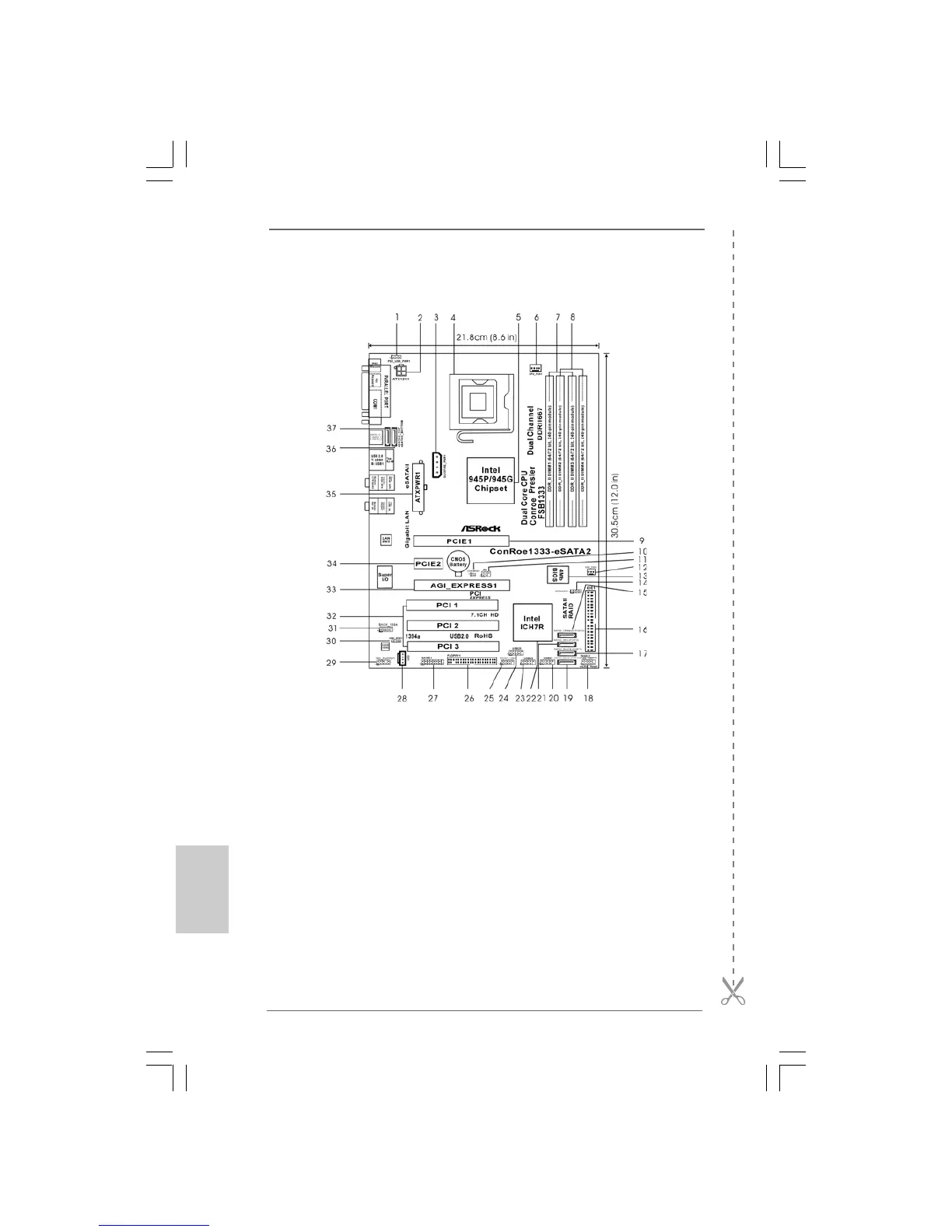

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 19 SATAII Connector (SATAII_BLUE (PORT0))

2 ATX 12V Connector (ATX12V1) 20 USB 2.0 Header (USB67, Blue)

3 SLI / XFIRE Power Connector 21 SATAII Connector (SATAII_RED (PORT2))

4 775-Pin CPU Socket 22 South Bridge Controller

5 North Bridge Controller 23 USB 2.0 Header (USB45, Blue)

6 CPU Fan Connector (CPU_FAN1) 24 USB 2.0 Header (USB23, Blue)

7 2 x 240-pin DDRII DIMM Slots 25 Front Panel IEEE 1394 Header (FRONT_1394)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 26 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDRII DIMM Slots 27 Game Port Header (GAME1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 28 Internal Audio Connector: CD1 (Black)

9 PCI Express x16 Slot (PCIE1) 29 Front Panel Audio Header (HD_AUDIO1)

10 Clear CMOS Jumper (CLRCMOS1) 30 HDMI_SPDIF Header (HDMI_SPDIF1)

11 Infrared Module Connector (IR1) 31 Back Panel IEEE 1394 Header (BACK_1394)

12 Chassis Fan Connector (CHA_FAN1) 32 PCI Slots (PCI1- 3)

13 BIOS FWH Chip 33 AGI Express Slot (PCI Express x4)

14 Chassis Speaker Header (SPEAKER 1) 34 PCI Express x1 Slot (PCIE2)

15 SATAII Connector (SATAII_ORANGE (PORT3)) 35 ATX Power Connector (ATXPWR1)

16 IDE1 Connector (IDE1, Blue) 36 eSATAII Connector (eSATAII_BOTTOM)

17 SATAII Connector (SATAII_BLACK (PORT1)) 37 eSATAII Connector (eSATAII_TOP)

18 System Panel Header (PANEL1)
