ASROCK Fatal1ty H87 Performance Series Quick Installation Guide

Fatal1ty H87 Performance Series
25
English

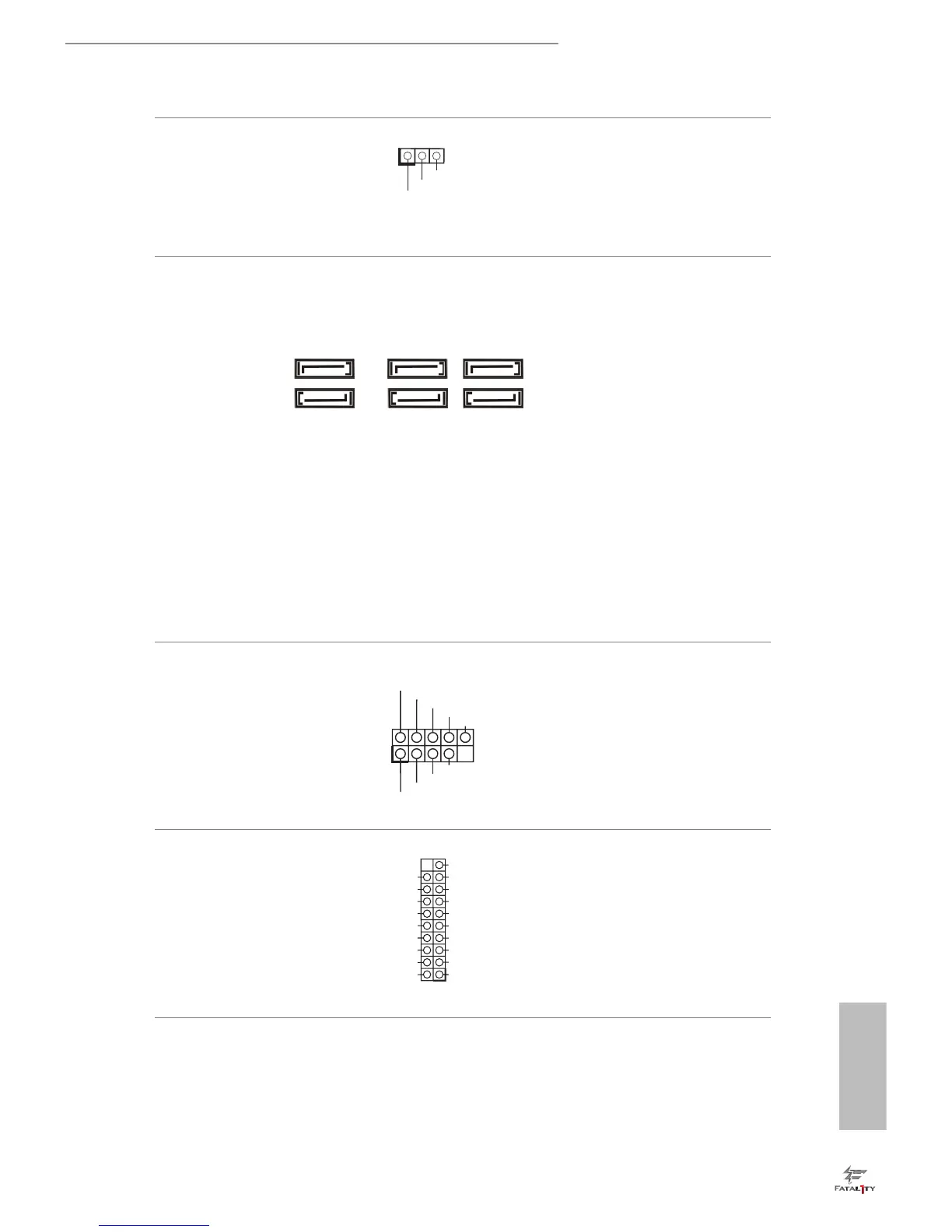

Power LED Header
(3-pin PLED1)
(see p.1, No. 9)
Please connect the chassis
power LED to this header
to indicate the system’s
power status.
Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 12)
(SATA3_1:
see p.1, No. 13)
(SATA3_2:
see p.1, No. 15)
(SATA3_3:
see p.1, No. 14)
(SATA3_4:
see p.1, No. 19)
(SATA3_5:
see p.1, No. 18)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB4_5)
(see p.1, No. 20)
(9-pin USB6_7)
(see p.1, No. 21)
Besides four USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Headers
(19-pin USB3_4_5)
(see p.1, No. 8)
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. Each USB
3.0 header can support
two ports.
1
PLED+
PLED+
PLED-
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_0SATA3_4 SATA3_2
SATA3_1SATA3_5 SATA3_3
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+

ASROCK Fatal1ty H87 Performance Series Specifications

General

Chipset	Intel H87
CPU Socket	LGA 1150
Form Factor	ATX
Max Memory	32GB
Memory Standard	DDR3 1600/1333/1066
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	6
Audio Chipset	Realtek ALC1150
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
USB 2.0 Ports	6
LAN	Gigabit LAN
Audio	7.1 Channel HD Audio
