2.11 M.2_SSD (NGFF) Module Installation Guide
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Ultra M.2
Socket (M2_1) can accommodate either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI
Express module up to Gen3 x4 (32 Gb/s). Please be noted that the Ultra M.2 Socket (M2_1)
is shared with the S_SATA3_2 connector; you can only choose either the Ultra M.2 Socket
(M2_1) or the S_SATA3_2 connector to use.
Installing the M.2_SSD (NGFF) Module

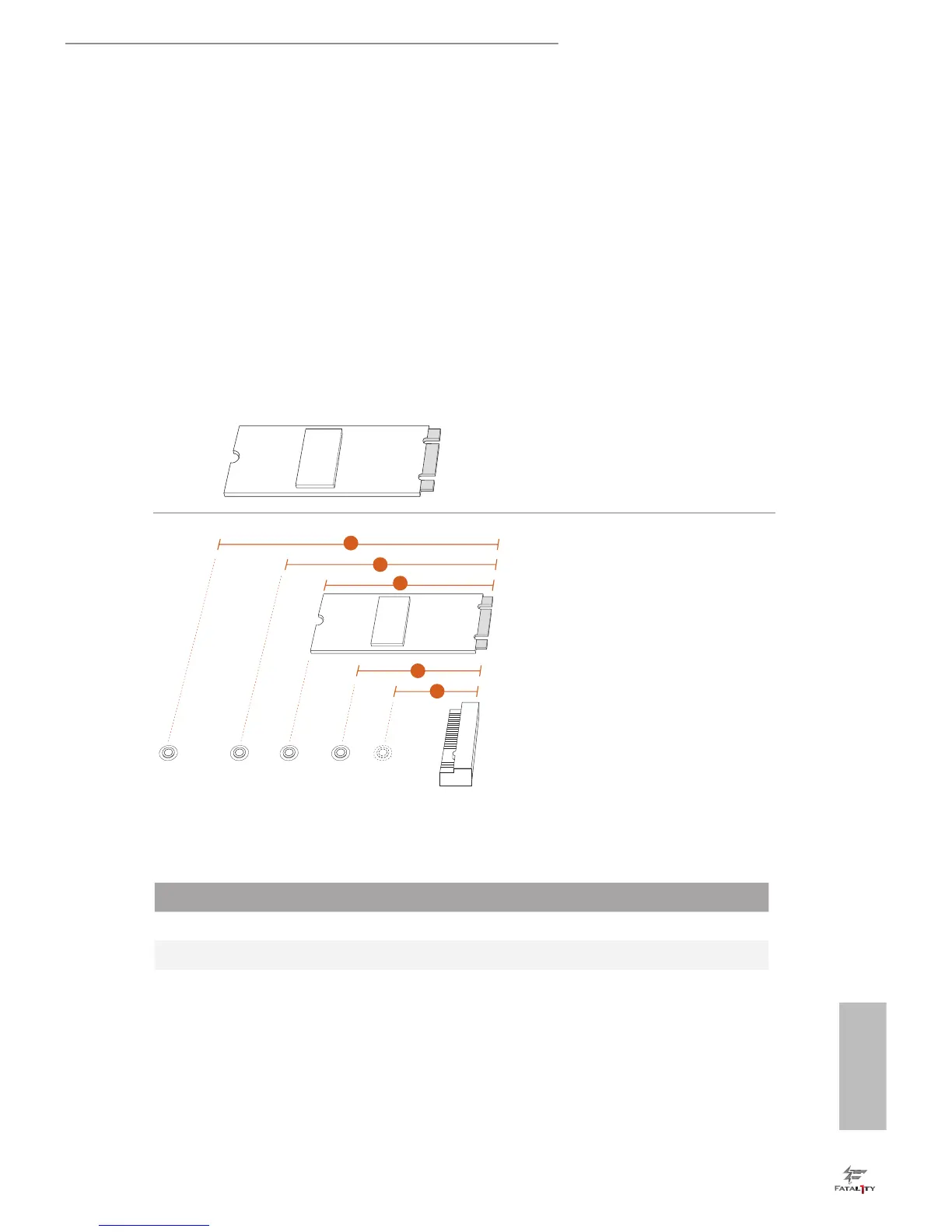

Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
3
2
4
5
BCDE
A
1
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3 4 5
Nut Location A B C D E
PCB Length 3cm 4.2cm 6cm 8cm 11cm
Module Type Type2230 Type 2242 Type2260 Type 2280 Type 22110

ASROCK Fatal1ty X99M Killer Series Specifications

General

Chipset	Intel X99
Form Factor	Micro ATX
CPU Socket	LGA 2011-3
Memory Slots	4 x DIMM
Maximum Memory	64GB
Memory Type	DDR4
PCI Express x1 Slots	1
Audio Chipset	Realtek ALC1150
RAID Support	RAID 0, 1, 5, 10
Memory Support	DDR4 3000+(OC)/2800(OC)/2400(OC)/2133
SATA Ports	10 x SATA3 6.0 Gb/s
SATA Express	1 x SATA Express
M.2 Slots	1 x M.2
USB 2.0 Ports	6
Audio	7.1 CH HD Audio
LAN	Intel I218V
Multi-GPU Support	NVIDIA Quad SLI, AMD 3-Way CrossFireX
USB 3.0 Ports	6 (4 Rear, 2 Front)
