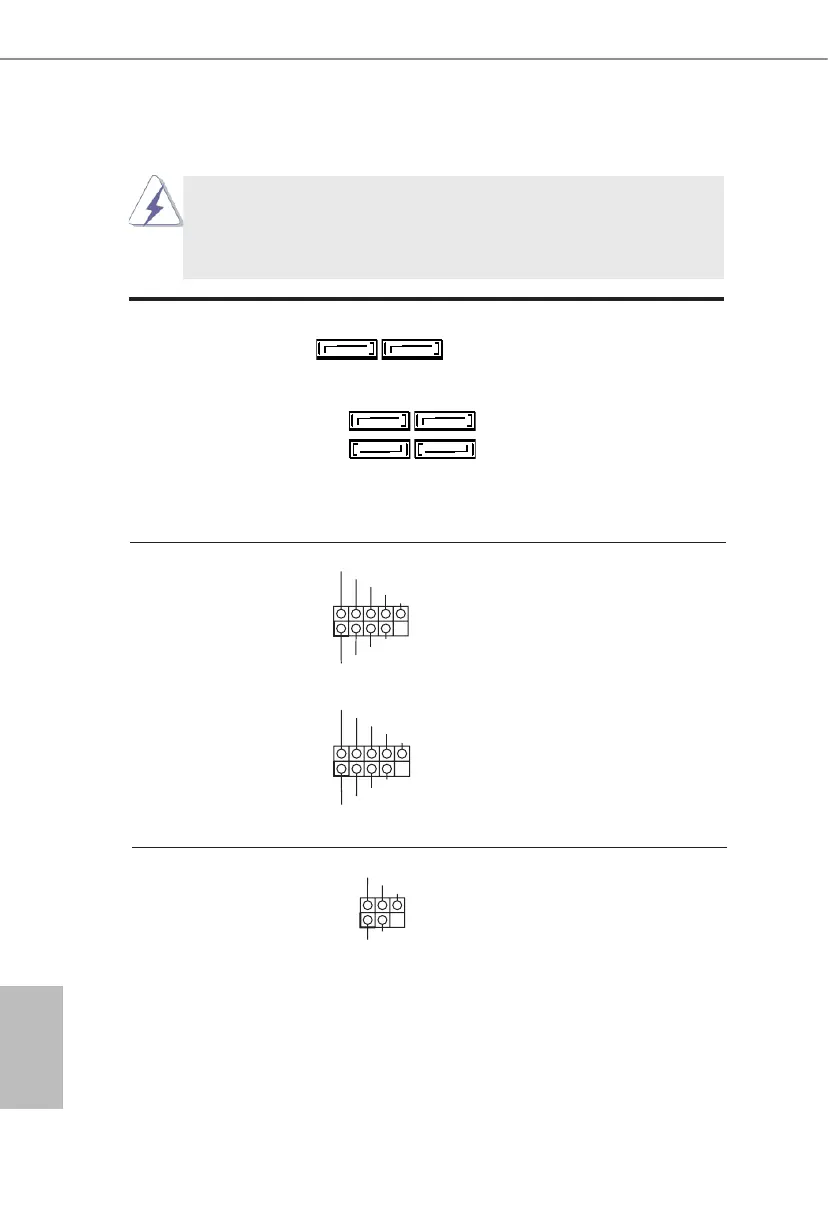

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB6_7)
ports on the I/O panel, there
(see p.10 No. 18)
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.10 No. 17)
Serial ATA2 Connectors These six Serial ATA2
(SATA_1: see p.10, No. 7)
(SATA2) connectors support
(SATA_2: see p.10, No. 6)
SATA data cables for internal
(SATA_3: see p.10, No. 16)
storage devices. The current
(SATA_4: see p.10, No. 13)
SATA2 interface allows up to
(SATA_5: see p.10, No. 15)
3.0 Gb/s data transfer rate.
(SATA_6: see p.10, No. 14)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.10 No. 19)
and receiving infrared module.
GND
IRRX
DUMMY
+5VSB
IRTX
1
SATA_5 SATA_6
SATA_3 SATA_4
SATA_1 SATA_2
