ASROCK FM2A58M-HD+ - Page 29

English
24

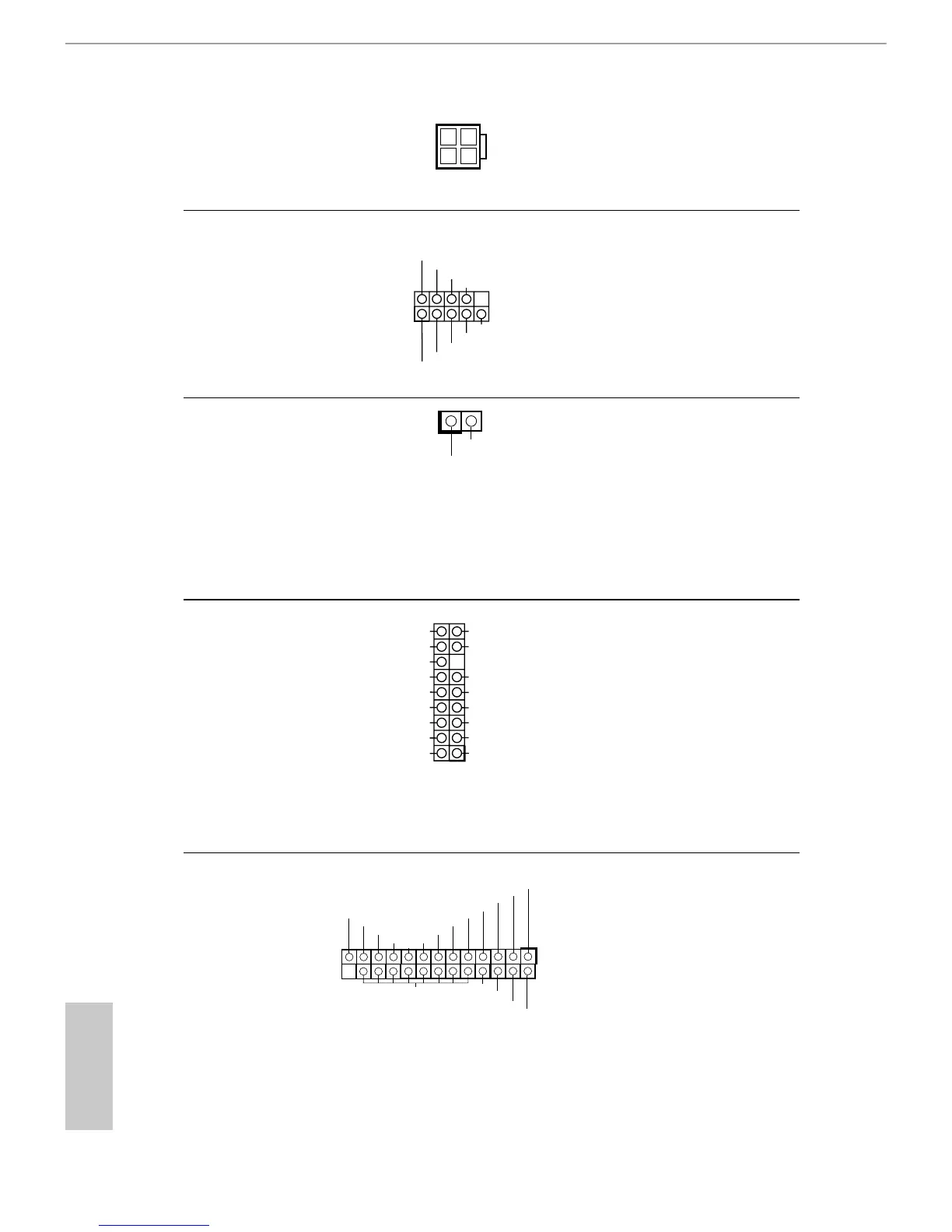

Serial port Header This COM1 header supports a
(9-pin COM1)
serial port module.
(see p.10 No. 19)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1)
power supply to this connector.
(see p.10 No. 1)
Chassis Intrusion Header
(2-pin CI1)
(see p.10, No. 22)
This motherboard supports
CASE OPEN detection feature
that detects if the chassis
cover has been removed. This
feature requires a chassis with
chassis intrusion detection
design.
1
Signal
GN
D
Print Port Header
(25-pin LPT1)
(see p.10, No. 18)
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD3
SPD2
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
This is an interface for print
port cable that allows
convenient connection of
printer devices.
TPM Header
(17-pin TPMS1)
(see p.10, No. 10)
This connector supports Trust-
ed Platform Module (TPM)
system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
1
LFRAME#_L
CK_33M_TPM
TPM_RST#
LAD3_L
+3V
LAD0_L
+3VSB
GNDF_CLKRUN#
SERIRQ#
S_PWRDWN#
GND
LAD1_L
LAD2_L
SMB_DA
TA_MAIN
SMB_CLK_MAIN
GND
