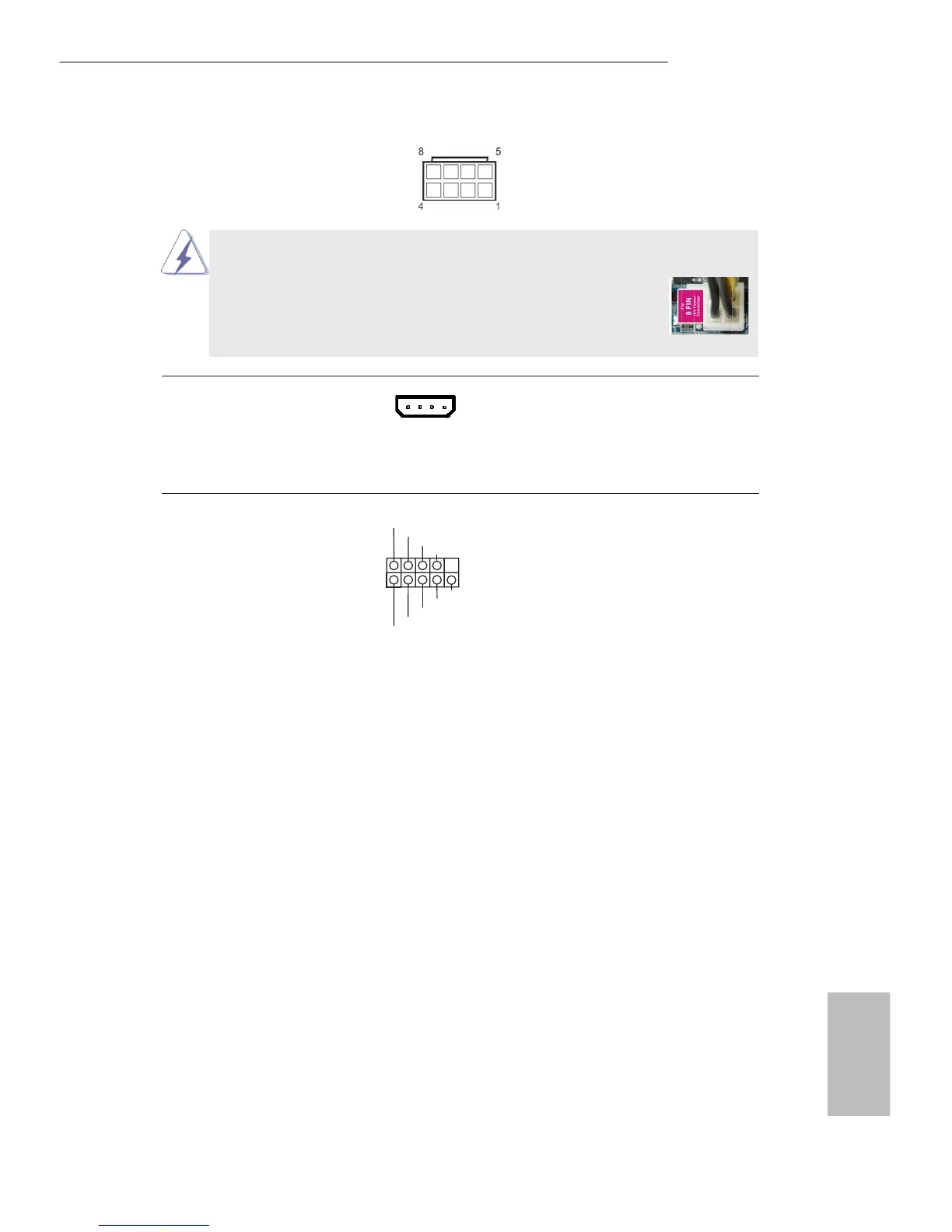

ATX 12V Power Connector Please connect an ATX 12V
(8-pin ATX12V1)
power supply to this connector.
(see p.1 No. 1)
Though this motherboard provides 8-pin ATX 12V power connector, it can still work
if you adopt a traditional 4-pin ATX 12V power supply. To use the
4-pin ATX power supply, please plug your power supply along with
Pin 1 and Pin 5.
4-Pin ATX 12V Power Supply Installation
8 5
4 1
PCIe Power Connector
(4-pin PCIE_PWR1)
(see p.1, No. 24)
Please connect a 4 pin molex
power cable to this connector
when more than three
graphics cards are installed.
