H110M-DS/Hyper

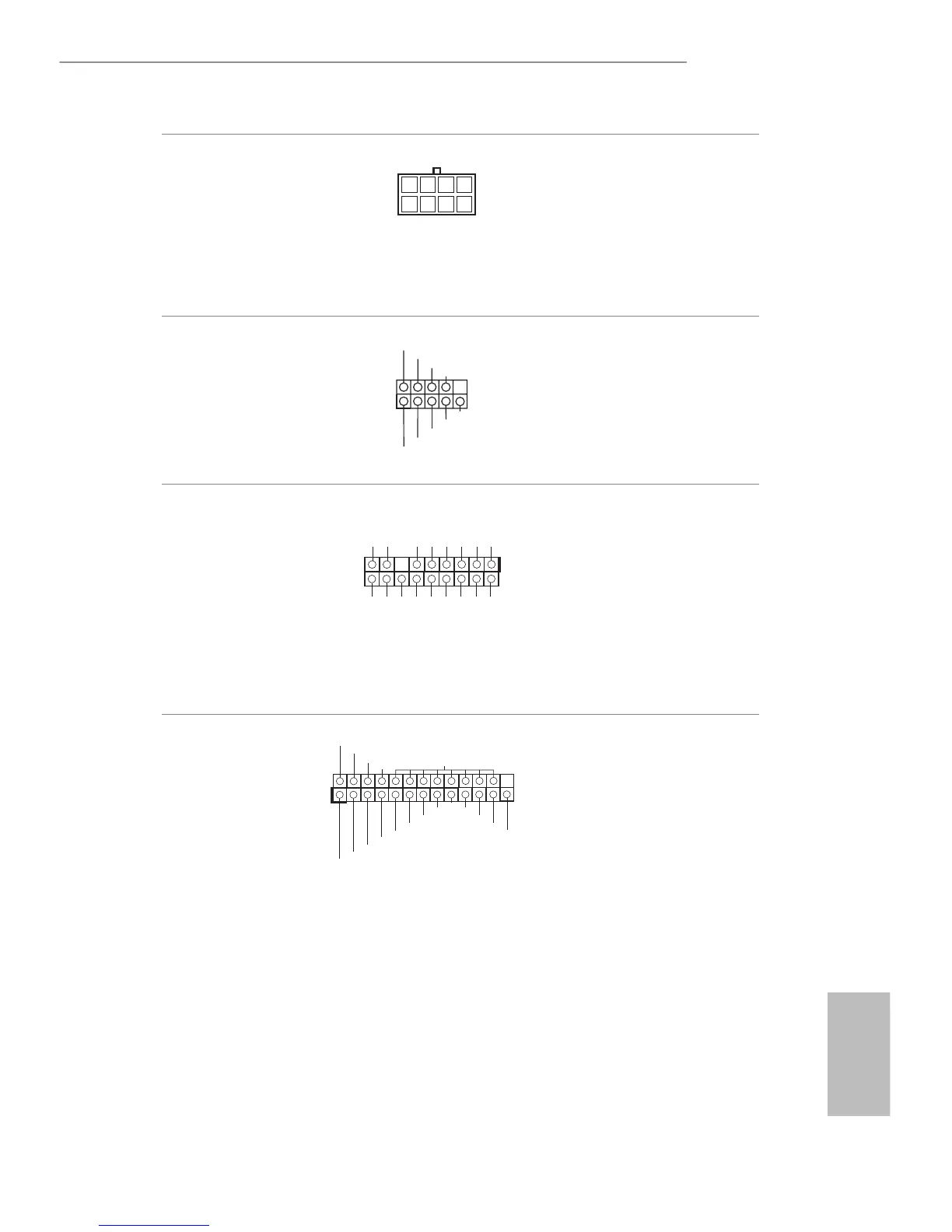

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)
is motherboard pro-
vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Serial Port Header
(9-pin COM1)
(see p.1, No. 18)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.1, No. 13)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Print Port Header
(25-pin LPT1)
(see p.1, No. 17)
is is an interface
for print port cable
that allows convenient
connection of printer
devices.
