ASROCK H110M-DVS R3.0 User Manual

18
English

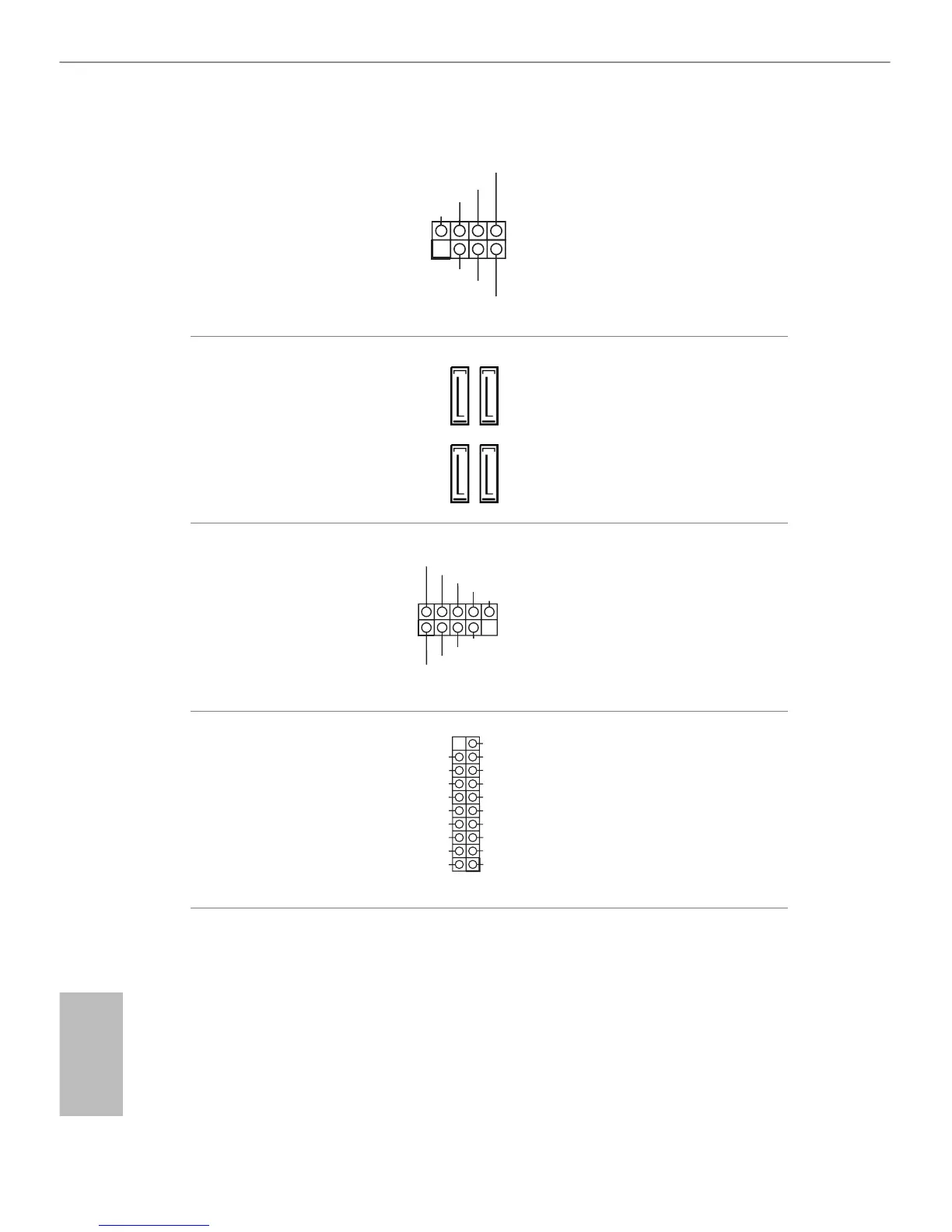

Chassis Intrusion and
Speaker Header
(7-pin SPK_CI1)
(see p.1, 2, 3, 4, No. 11)
Please connect the
chassis intrusion and the
chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_0_1:
see p.7, 8, 9, 10, No. 7)
(SATA3_2_3:
see p.1, 2, 3, 4, No. 6)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Header
(9-pin USB_4_5)
(see p.1, 2, 3, 4, No. 9)
ere is one header on
this motherboard. Each
USB 2.0 header can
support two ports.
USB 3.0 Header
(19-pin USB3_3_4)
(see p.1, 2, 3, 4, No. 8)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. Each USB
3.0 header can support
two ports.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
+5V
DUMMY
SIGNAL
GND
DUMMY
SPEAKER
DUMMY
1
IntA_P1_D+
ID
IntA_P1_D-
GND
IntA_P1_SSTX+
GND
IntA_P1_SSTX-
IntA_P1_SSRX+
IntA_P1_SSRX-
VbusVbus
Vbus
IntA_P0_SSRX-
IntA_P0_SSRX+
GND
IntA_P0_SSTX-
IntA_P0_SSTX+
GND
IntA_P0_D-
IntA_P0_D+
SATA3_0_1 SATA3_2_3

ASROCK H110M-DVS R3.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
USB 2.0 connectors	1
Number of SATA II connectors	-
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Realtek RTL8111C
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Certification	FCC, CE, WHQL
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64
Cables included	SATA
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Graphics card	HD Graphics
DirectX version	12.0
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1024 MB

Weight and Dimensions

Depth	188 mm
Width	191 mm
