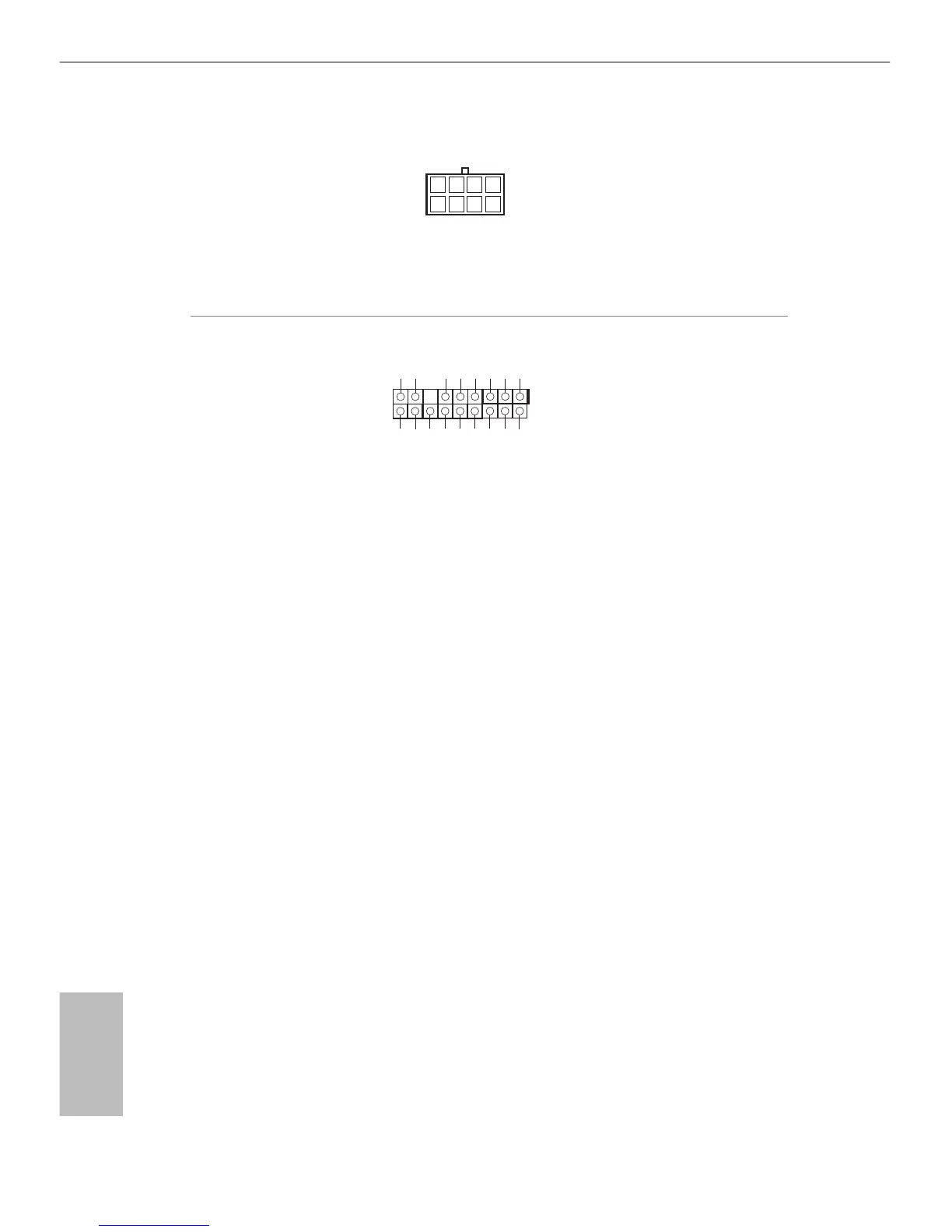

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, 2, 3, 4, No. 1)
is motherboard pro-
vides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
TPM Header
(17-pin TPMS1)
(see p.1, 2, 3, 4, No. 12)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
