ASROCK H370M-ITX/ac User Manual

English
23
H370M-ITX/ac

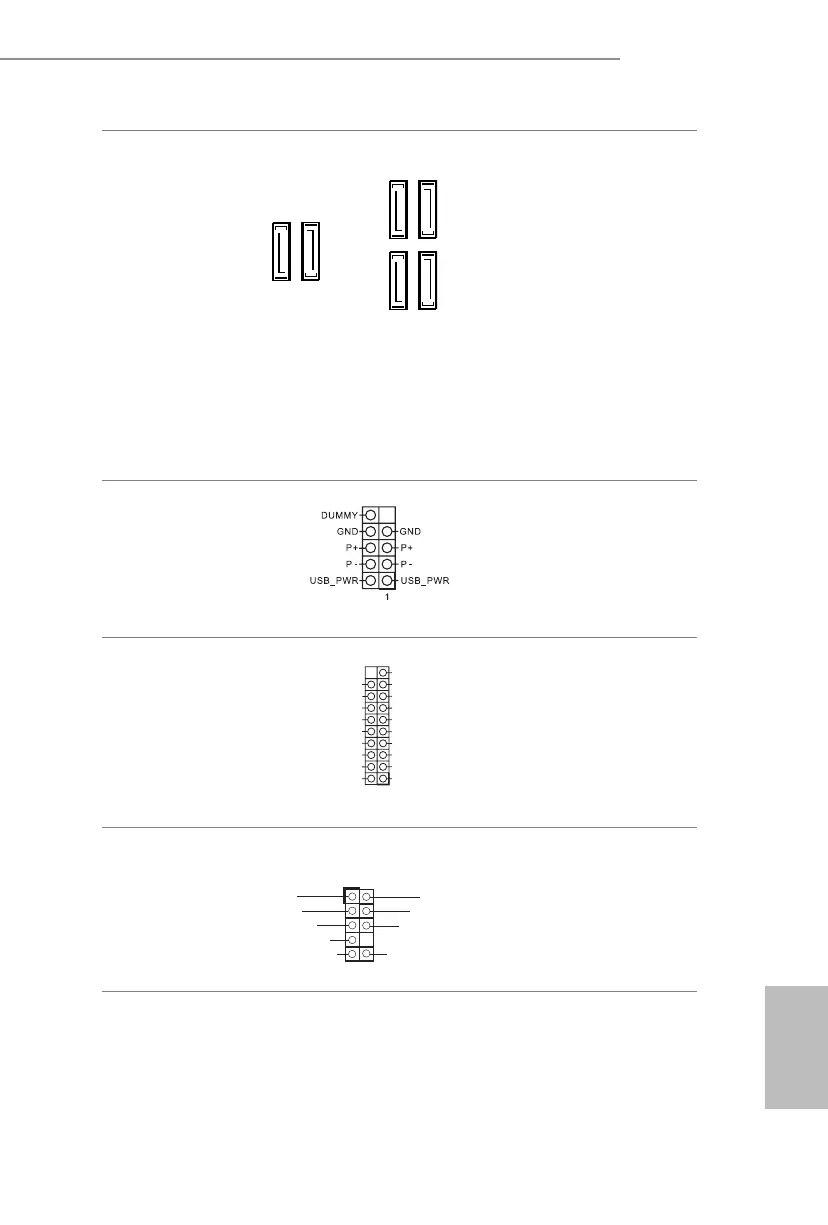

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 9)
(SATA3_1:
see p.1, No. 8)
(SATA3_2:
see p.1, No. 11)
(SATA3_3:
see p.1, No. 10)
(SATA3_4:
see p.1, No. 16)
(SATA3_5:
see p.1, No. 17)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
*If M2_1 is occupied by a SATA-
type M.2 device, SATA3_1 will
be disabled.
USB 2.0 Header
(9-pin USB_3_4)
(see p.1, No. 13)
ere is one USB2.0
header on this
motherboard. is USB
2.0 header can support
two ports.
USB 3.1 Gen1 Header
(19-pin USB3_6_7)
(see p.1, No. 7)
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 20)
is header is for
connecting audio devices
to the front audio panel.
SATA3_3 SATA3_2
SATA3_1 SATA3_0
SATA3_5 SATA3_4
1
IntA_ PB_D +
Dummy
IntA_ PB_D -
GND
IntA_ PB_S STX +
GND
IntA_ PB_S STX -
IntA_ PB_S SRX +
IntA_ PB_S SRX -
VbusVbus
Vbus
IntA_ PA_S SRX -
IntA_ PA_S SRX +
GND
IntA_ PA_S STX -
IntA_ PA_S STX +
GND
IntA_ PA_D -
IntA_ PA_D +
J_SENS
E
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
