H410M-IT X/ac

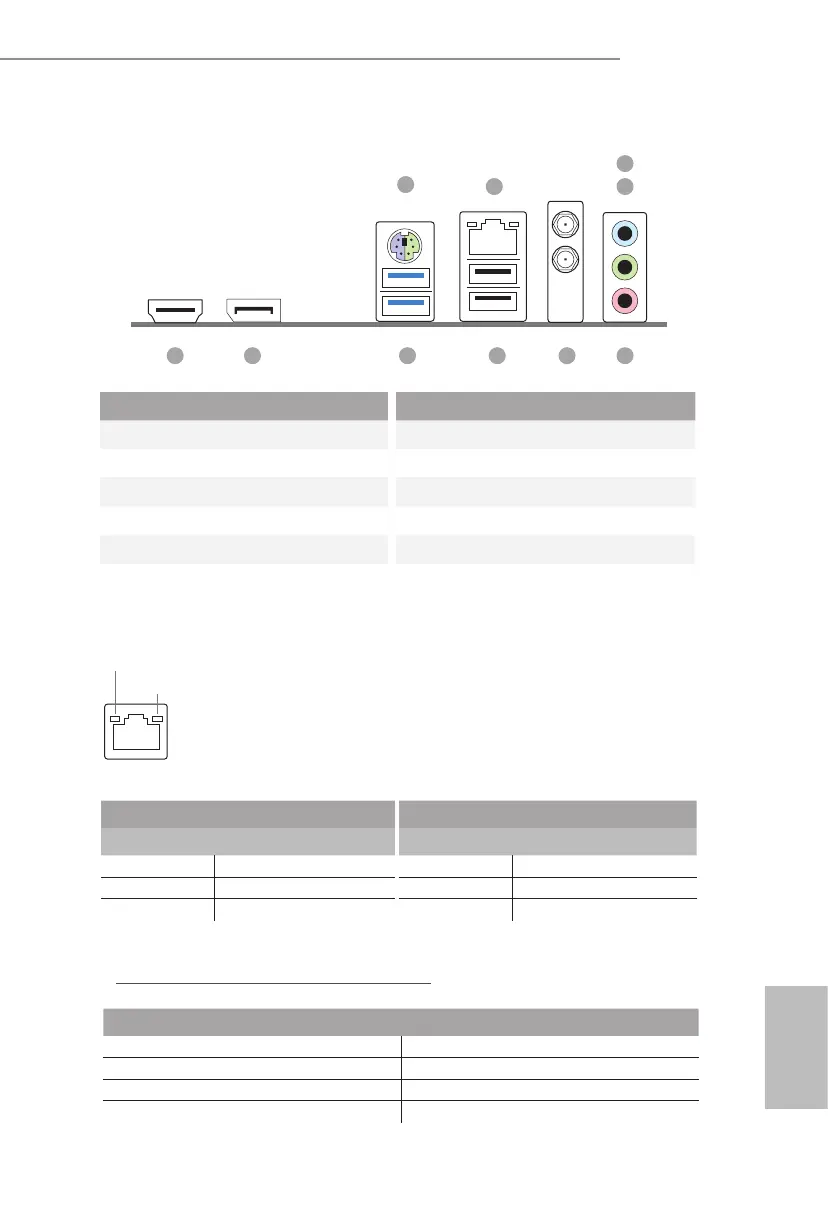

I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 6 Antenna Ports
2 LAN RJ-45 Port* 7 USB 2.0 Ports (USB_12)
3 Line In (Light Blue)** 8 USB 3.2 Gen1 Ports (USB3_12)
4 Front Speaker (Lime)** 9 DisplayPort 1.4
5 Microphone (Pink)** 10 HDMI Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
10 578
4
3
1
2
9 6
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
