1616
1616
16
+5V
1_2
+5VSB
2_3
FSB 200MHz
FSB_SEL0
FSB_SEL1
2_3
1_2
FSB 266MHz
FSB_SEL0
2_3
FSB_SEL1
2_3
FSB 333MHz
FSB_SEL0
FSB_SEL1
1_2
1_2
2.5 Jumpers Setup2.5 Jumpers Setup
2.5 Jumpers Setup2.5 Jumpers Setup

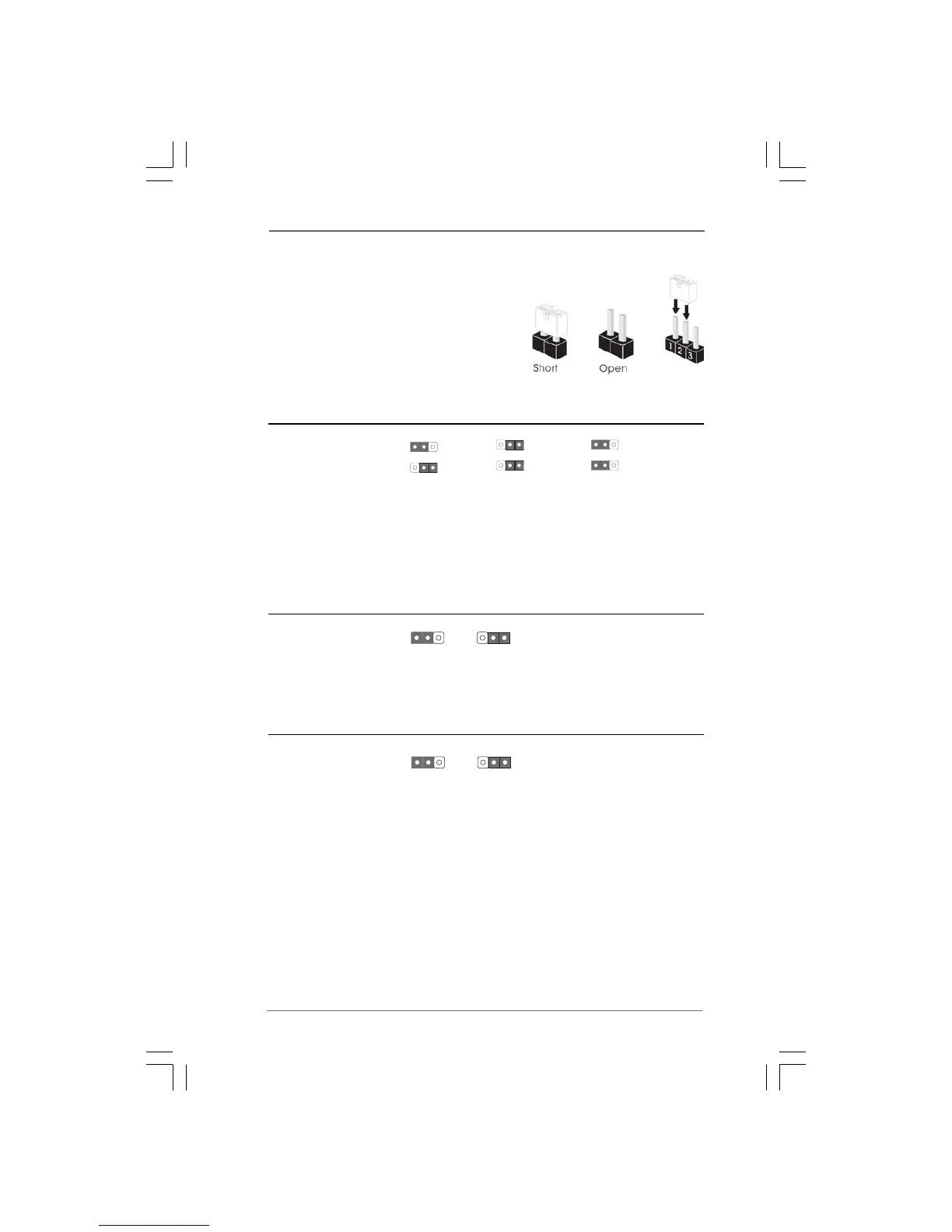

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose pin1
and pin2 are “Short” when jumper cap is
placed on these 2 pins.
Jumper Setting Description
FSB Select
Jumpers
(see p.10 No. 25)
Note:The setting of the CPU front side bus frequency of this motherboard is by
means of the adjustment of jumper-setting. You must set the FSB jumper
according to your AMD CPU before you use the “Manual” option as the FSB
setting in BIOS setup to perform over clocking. Please follow the figures above
to set the CPU front side bus frequency.
PS2_USB_PWR1 Short pin2, pin3 to enable
(see p.10 No. 1) +5VSB (standby) for PS/2
or USB01/23 wake up
events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
USB_PWR1 Short pin2, pin3 to enable
(see p.10 No. 16) +5VSB (standby) for
USB4_5 wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
+5V
1_2
+5VSB
2_3
To Next Page
